MX75R-XEPGFN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8812-9205)MX75

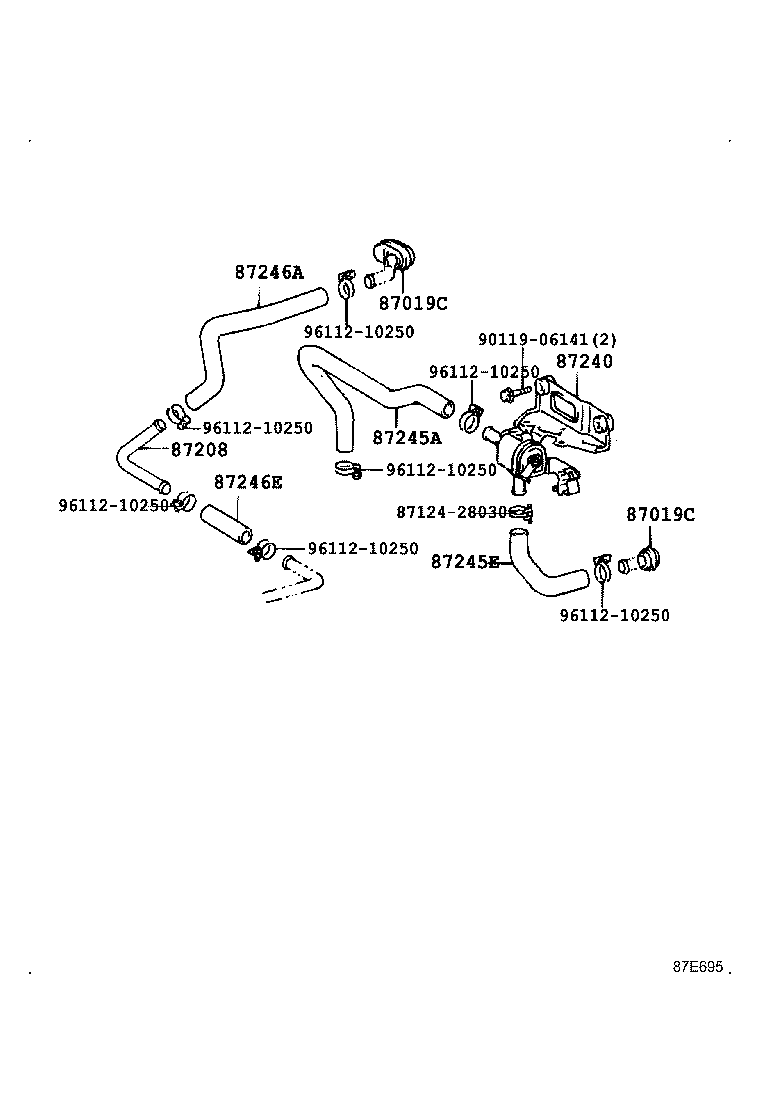

Click highlighted areas on diagram

diagram 87019C 87019C 8712428030 87208 87240 87245A 87245E 87246A 87246E 9011906141 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,MX75,RX7#,YX72

INLET

 1
90480-01272

GX71,MX75,RX7#,YX72

INLET

 1
90480-36011

GX71,MX75,RX7#,YX72

OUTLET

 1
90480-36011

GX71,MX75,RX7#,YX72

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-01272

GX71,MX75,RX7#,YX72

INLET

 1
90480-01272

GX71,MX75,RX7#,YX72

INLET

 1
90480-36011

GX71,MX75,RX7#,YX72

OUTLET

 1
90480-36011

GX71,MX75,RX7#,YX72

OUTLET

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87248-22050

MX75

 1
87240 - VALVE ASSY, HEATER WATER
87240-22270

GX71,MX75..GLX

 1
87240-22261

MX75,RX7#,YX72..GL,STD,XL

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2A310

MX75

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22620

GX71,MX75,RX7#,YX72..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22700

MX75

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30100

MX75

*H,L=60

 1
Common parts
87124-28030
90119-06141
96112-10250
