MX75R-XEPGFN (1988)
Toyota Cressida Wagon

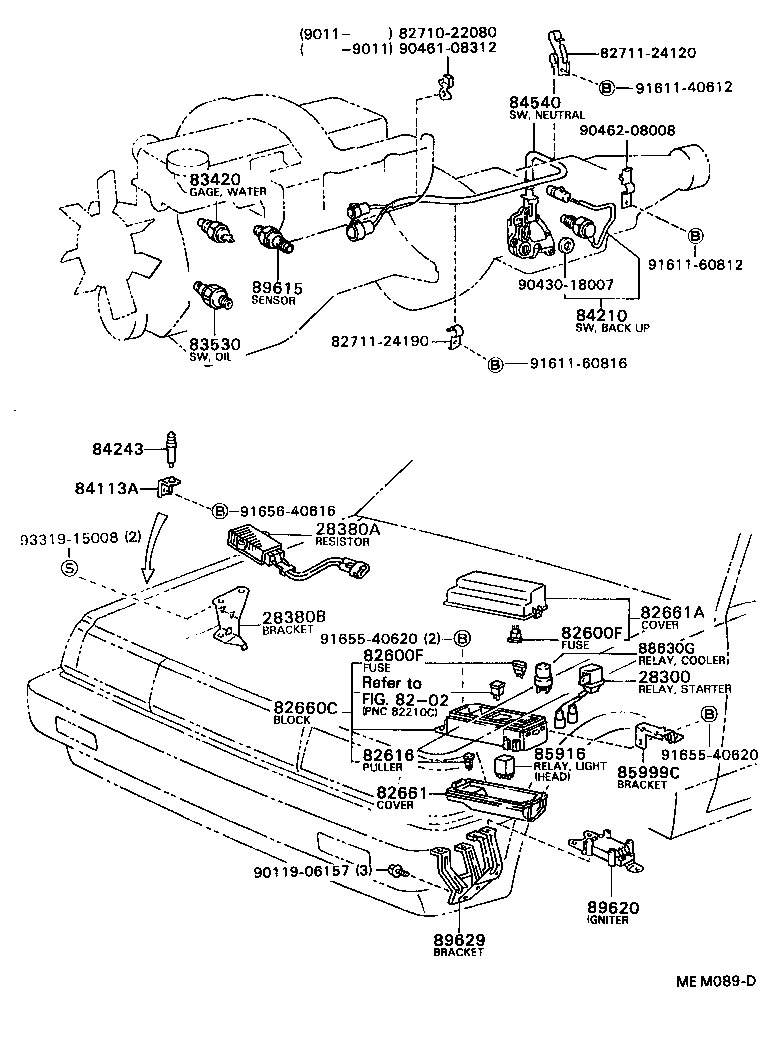

ILLUST NO. 1 OF 7(8812-9205)MX75
ENGINE,TRANSMISSION & ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
1GFE,7MGE..GX71,MX75..GLX |
1 | ||
| 28380A - RESISTER, FUEL PUMP | ||||
| 23285-70010 |
7MGE..MX75 |
1 | ||
| 28380B - BRACKET, FUEL PUMP RESISTER | ||||
| 23286-70020 |
7MGE..MX75 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX71,MX75,RX7#,YX72..RHD 20A,YELLOW,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09005 |
GX71,MX75,RX7#,YX72 7.5A,E/G ROOM RELAY BLOCK |
4 | ||
| 90982-09003 |
GX71,MX75,RX7#,YX72..SA 15A,E/G ROOM J/B |
6 | ||
| 90982-09003 |
GX71,MX75,RX7#,YX72..RHD 15A,E/G ROOM RELAY BLOCK |
5 | ||
| 90982-09002 |
MX75 10A,10A,E/G ROOM RELAY BLOCK |
2 | ||
| 90982-09002 |
GX71,MX75,RX7#,YX72..SA 10A,E/G ROOM RELAY BLOCK |
2 | ||
| 90982-09005 |
GX71,MX75,RX7#,YX72..SA 7.5A,E/G ROOM J/B |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX71,MX75,RX7#,YX72..RHD 20A,YELLOW,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09005 |
GX71,MX75,RX7#,YX72 7.5A,E/G ROOM RELAY BLOCK |
4 | ||
| 90982-09003 |
GX71,MX75,RX7#,YX72..SA 15A,E/G ROOM J/B |
6 | ||
| 90982-09003 |
GX71,MX75,RX7#,YX72..RHD 15A,E/G ROOM RELAY BLOCK |
5 | ||
| 90982-09002 |
MX75 10A,10A,E/G ROOM RELAY BLOCK |
2 | ||
| 90982-09002 |
GX71,MX75,RX7#,YX72..SA 10A,E/G ROOM RELAY BLOCK |
2 | ||
| 90982-09005 |
GX71,MX75,RX7#,YX72..SA 7.5A,E/G ROOM J/B |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-22240 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 82660-22270 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22121 |
GX71,MX75 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-22171 |
GX71,MX75 |
1 | ||
| 82661-22200 |
GX71,MX75 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30050 |
GX71,MX75 |
1 | ||
| 83530-30051 |
GX71,MX75 |
1 | ||
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 85999-22280 |
GX71,MX75..GLX |
1 | ||
| 84243 - SWITCH, ENGINE HOOD | ||||
| 84243-22010 |
GX71,MX75..GLX |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30240 |
MX75..GLX |
1 | ||
| 84540-30241 |
MX75..GLX |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GX71,MX75,RX7#,YX72 MARUKO,TAIL LAMP |
1 | ||
| 90987-02006 |
GX71,MX75,RX7#,YX72 HEADLAMP |
1 | ||
| 90987-02004 |
GX71,MX75,RX7#,YX72 *ND,TAIL LAMP |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22141 |
GX71,MX75 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GX71,MX75 |
1 | ||
| 90987-02004 |
GX71,MX75 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
MX75 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-22420 |
MX75 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-22050 |
GX71,MX75 |
1 | ||
| Common parts | ||||
| 82710-22080 | ||||
| 82711-24120 | ||||
| 82711-24190 | ||||
| 90119-06157 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 91611-40612 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91655-40620 | ||||
| 91656-40616 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8202 | ||||

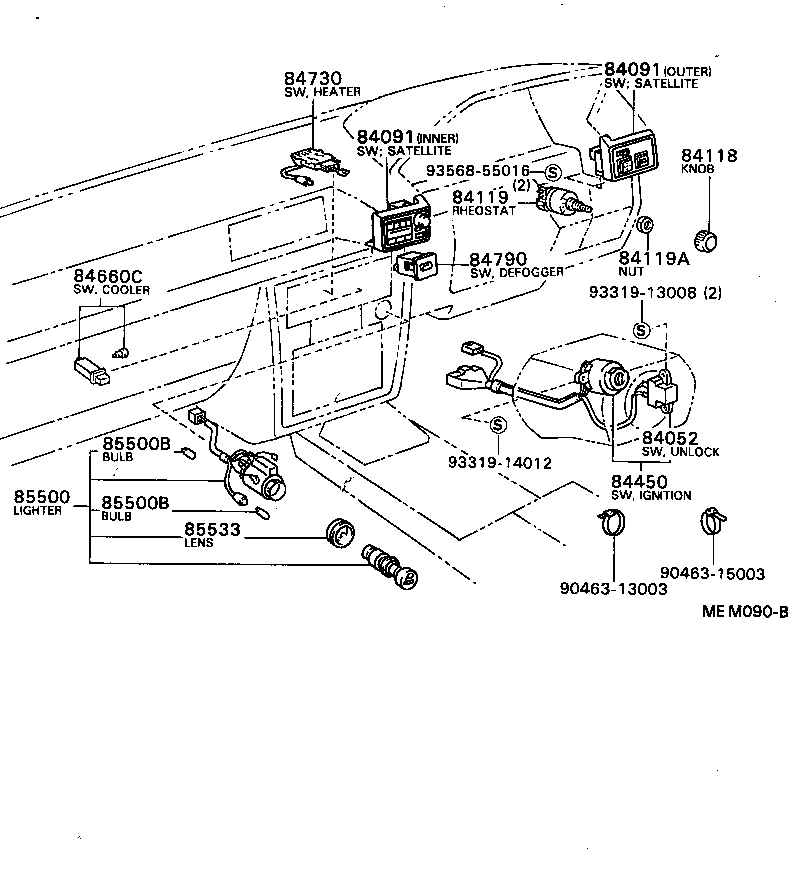

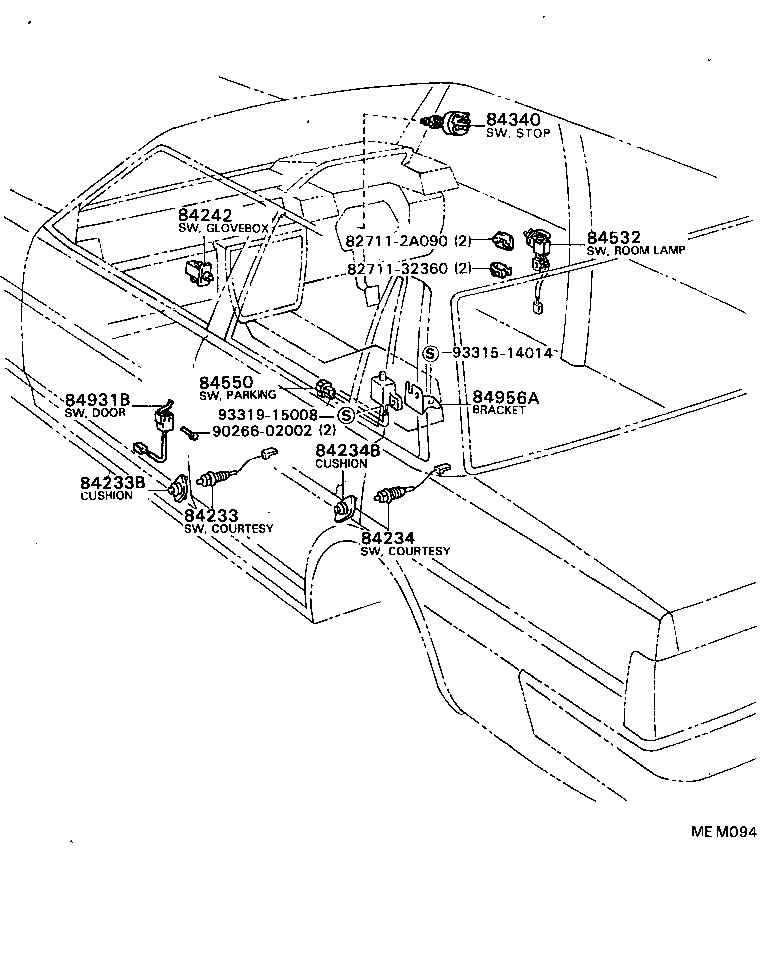

ILLUST NO. 2 OF 7(8810-9302)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22030 |
RX72..GL;GX71,MX75..GLX |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22130 |
GX71,MX75,RX7#..SA OUTER |
1 | ||
| 84091-22230 |
MX75..GLX INNER |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22130 |
GX71,MX75,RX7#..SA OUTER |
1 | ||
| 84091-22230 |
MX75..GLX INNER |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-22030 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-22100 |
MX75..GLX |
1 | ||
| 84119-20082 |
MX75..GL;GX71,RX7#,YX72 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 90170-09002 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22200 |
GX71,MX75..GLX |
1 | ||
| 84450-22170 |
MX75,RX7#,YX72..RHD..(GL,STD,XL) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22070 |
MX75,RX7#,YX72..GL,STD,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22080 |
MX75,RX7#,YX72..GL,STD,XL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22110 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22180 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX71,MX75,RX7#,YX72 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX71,MX75,RX7#,YX72 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
GX71,MX75,RX7#,YX72 |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93568-55016 | ||||

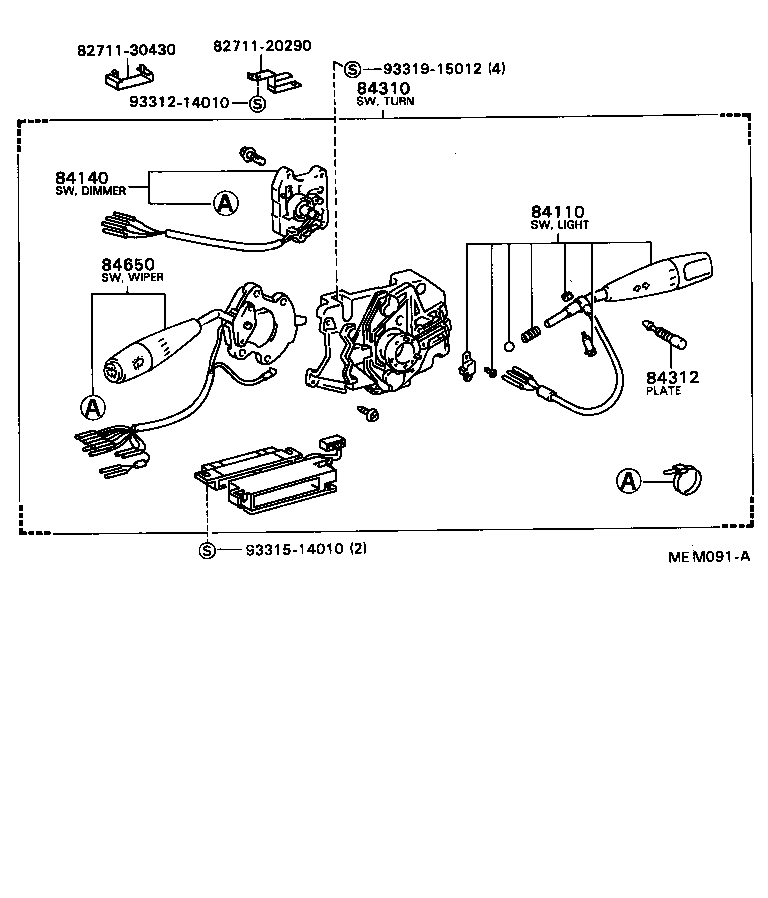

ILLUST NO. 3 OF 7(8810-9302)
TURN SIGNAL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29635 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22030 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22570 |
MX75..GLX |
1 | ||
| 84310-22480 |
MX75..GL;GX71,RX7#..SA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22340 |
MX75..GL;GX71,RX7#..SA |
1 | ||
| 84652-22400 |
MX75..GLX |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-30430 | ||||
| 93312-14010 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||

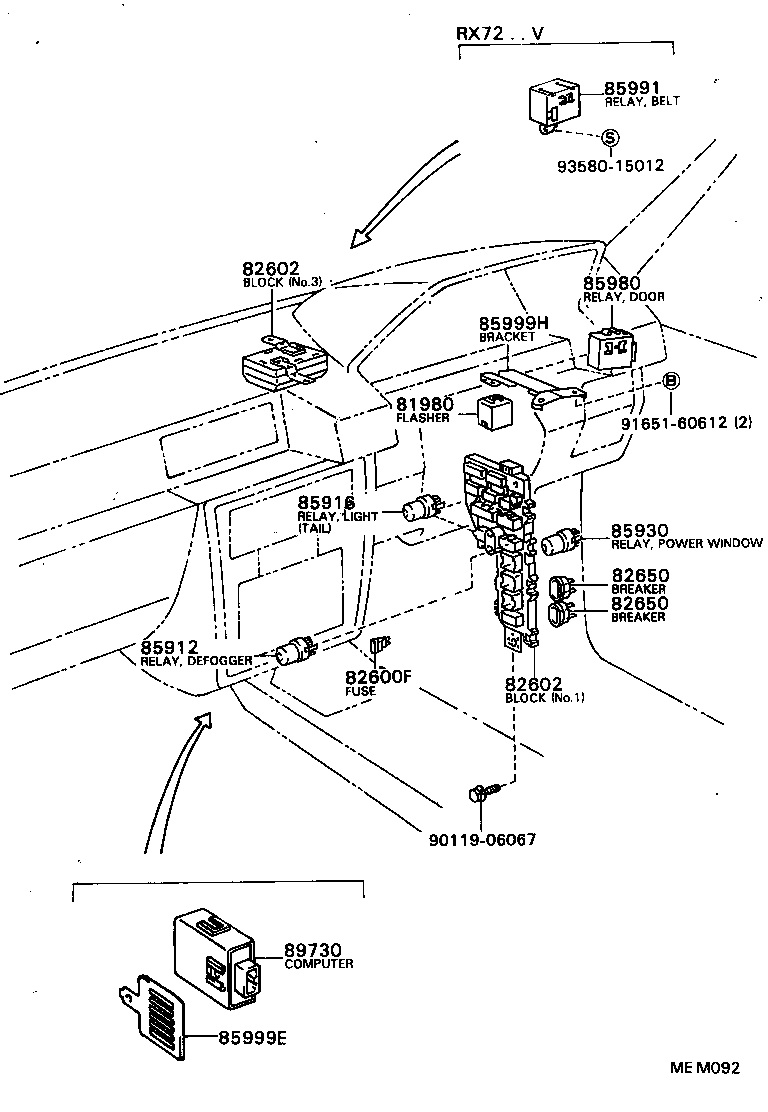

ILLUST NO. 4 OF 7(8810-9302)
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
GX71,MX75,RX7#,YX72..SA |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX71,MX75,RX7#,YX72..RHD 20A,YELLOW,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09005 |
GX71,MX75,RX7#,YX72 7.5A,E/G ROOM RELAY BLOCK |
4 | ||
| 90982-09003 |
GX71,MX75,RX7#,YX72..SA 15A,E/G ROOM J/B |
6 | ||
| 90982-09003 |
GX71,MX75,RX7#,YX72..RHD 15A,E/G ROOM RELAY BLOCK |
5 | ||
| 90982-09002 |
MX75 10A,10A,E/G ROOM RELAY BLOCK |
2 | ||
| 90982-09002 |
GX71,MX75,RX7#,YX72..SA 10A,E/G ROOM RELAY BLOCK |
2 | ||
| 90982-09005 |
GX71,MX75,RX7#,YX72..SA 7.5A,E/G ROOM J/B |
2 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-22181 |
GX71,MX75 NO.5 |
1 | ||
| 82602-28020 |
GX71,MX75 CERCUIT BRAKER BLOCK |
1 | ||
| 82602-22212 |
GX71,MX75,RX7#,YX72..SA NO.1 |
1 | ||
| 82602-22170 |
GX71,MX75,RX7#,YX72..RHD NO.3 |
1 | ||
| 82602-22370 |
GX71,MX75,RX7#,YX72..SA NO.1 |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-22181 |
GX71,MX75 NO.5 |
1 | ||
| 82602-28020 |
GX71,MX75 CERCUIT BRAKER BLOCK |
1 | ||
| 82602-22212 |
GX71,MX75,RX7#,YX72..SA NO.1 |
1 | ||
| 82602-22170 |
GX71,MX75,RX7#,YX72..RHD NO.3 |
1 | ||
| 82602-22370 |
GX71,MX75,RX7#,YX72..SA NO.1 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
GX71,MX75,RX7#,YX72..SA 40A |
1 | ||
| 82650-20011 |
GX71,MX75 30A |
2 | ||
| 82650-20011 |
GX71,MX75,RX7#,YX72 30A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20020 |
GX71,MX75,RX7#,YX72..SA 40A |
1 | ||
| 82650-20011 |
GX71,MX75 30A |
2 | ||
| 82650-20011 |
GX71,MX75,RX7#,YX72 30A |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
GX71,MX75,RX7#,YX72 NIPPONDENSO |
1 | ||
| 90987-02002 |
GX71,MX75,RX7#,YX72 MARUKO |
1 | ||
| 90987-02004 |
GX71,MX75,RX7#,YX72..SA NIPPONDENSO |
1 | ||
| 90987-02002 |
GX71,MX75,RX7#,YX72..SA MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GX71,MX75,RX7#,YX72 MARUKO,TAIL LAMP |
1 | ||
| 90987-02006 |
GX71,MX75,RX7#,YX72 HEADLAMP |
1 | ||
| 90987-02004 |
GX71,MX75,RX7#,YX72 *ND,TAIL LAMP |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
GX71,MX75..GLX MARUKO |
1 | ||
| 90987-02004 |
RX72..GL;GX71,MX75..GLX NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22140 |
RX72..GL;GX71,MX75..GLX |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-22200 |
GX71,MX75..GLX |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-22160 |
GX71,MX75,RX7#,YX72..RHD |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-22031 |
GX71,MX75..GLX NIPPONDENSO |
1 | ||
| 89730-22041 |
GX71,MX75..GLX TEN |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 91651-60612 | ||||
| 93580-15012 | ||||

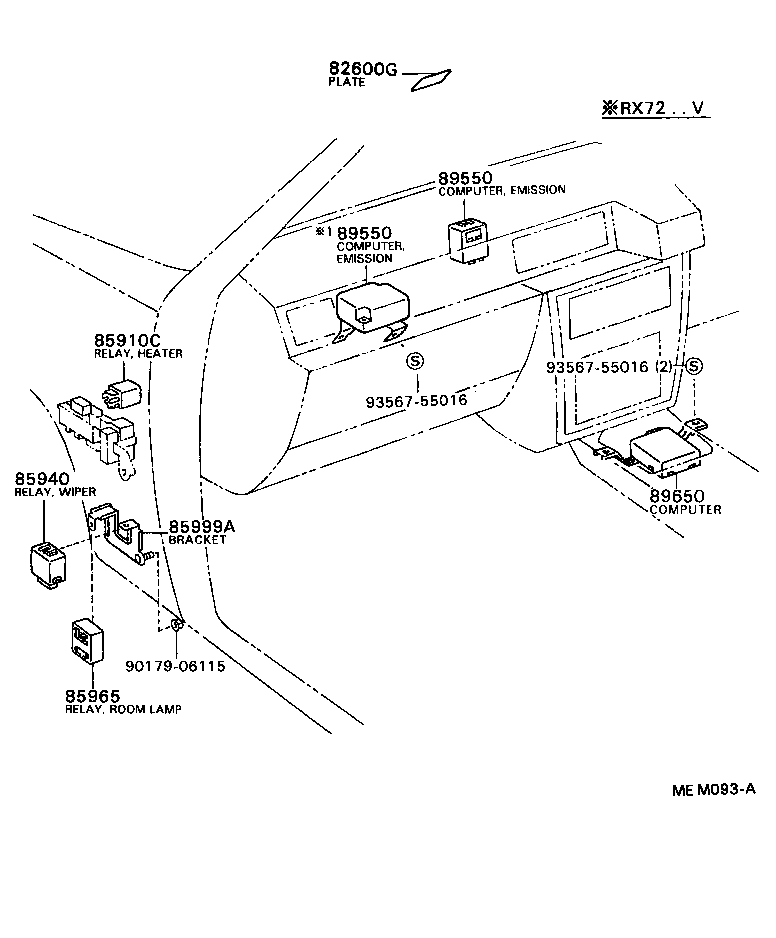

ILLUST NO. 5 OF 7(8810-9302)
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22120 |
GX71,MX75,RX7# |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
GX71,MX75,RX7# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22220 |
GX71,MX75,RX7#,YX72..RHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-22040 |
MX75 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93567-55016 | ||||

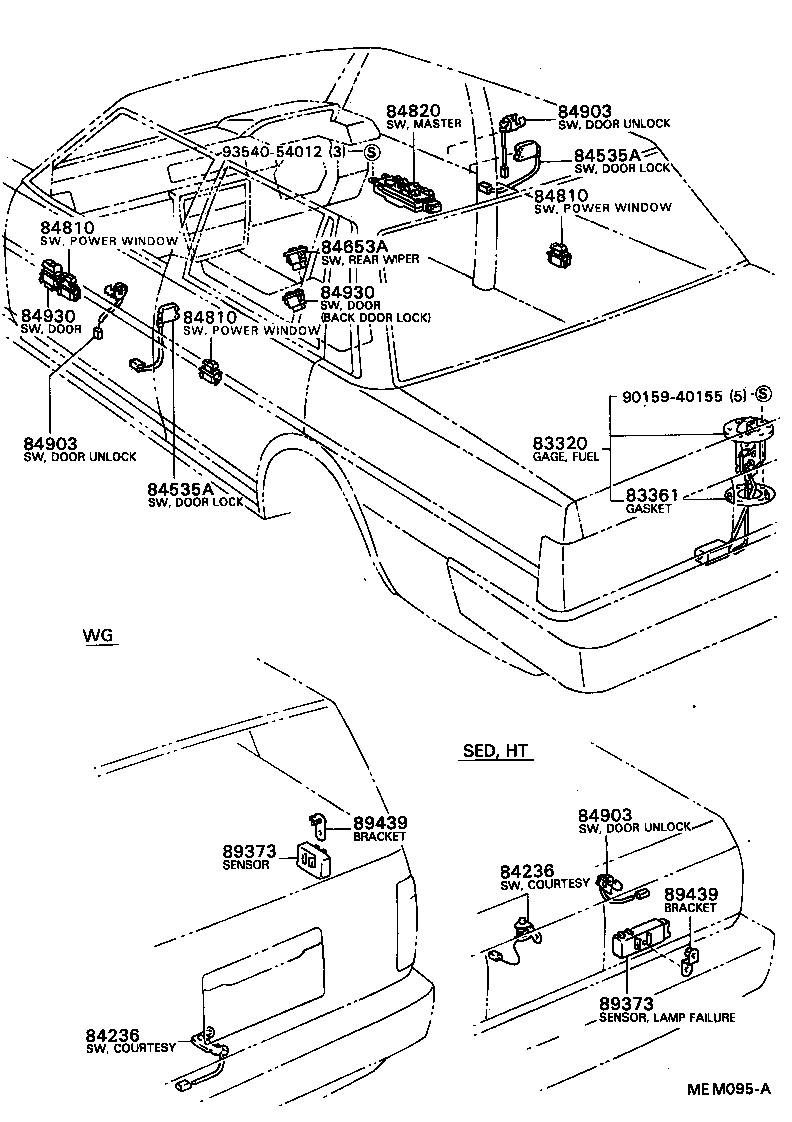

ILLUST NO. 6 OF 7(8810-9302)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22060 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22020 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-22060 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22020 |
GX71,MX75,RX7#,YX72 |
2 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GX71,MX75,RX7# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22100 |
MX75..GLX TOKAIRIKA |
1 | ||
| 84340-30050 |
MX75..GLX MATUSHITA |
1 | ||
| 84340-30030 |
MX75..GL;GX71,RX7#,YX72 |
1 | ||
| 84340-30030 |
MX75..GL;GX71,RX7#,YX72..SA |
1 | ||
| 84532 - SWITCH, ROOM LAMP RETAINER | ||||
| 84532-22080 |
GX71,MX75..GLX |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX71,MX75,RX7#,YX72 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22060 |
RX72..GL;GX71,MX75..GLX |
2 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22050 |
GX71,MX75,RX7#,YX72 |
1 | ||
| Common parts | ||||
| 82711-2A090 | ||||
| 82711-32360 | ||||
| 90266-02002 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
ILLUST NO. 7 OF 7(8810-9302)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80007 |
MX75..GL;GX71,RX73,YX72 |
1 | ||
| 83320-80003 |
MX75..GLX |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22020 |
GX71,MX75,RX73,YX72 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22020 |
GX71,MX75,RX73,YX72 |
1 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-22020 |
GX71,MX75..GLX |
2 | ||
| 84535A - SWITCH, DOOR LOCK | ||||
| 84535-22020 |
GX71,MX75..GLX |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
RX72..GL;GX71,MX75..GLX |
3 | ||
| 84810-32050 |
GX71,MX75..GLX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
RX72..GL;GX71,MX75..GLX |
3 | ||
| 84810-32050 |
GX71,MX75..GLX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
RX72..GL;GX71,MX75..GLX |
3 | ||
| 84810-32050 |
GX71,MX75..GLX |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32090 |
GX71,MX75..GLX |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-22050 |
GX71,MX75..GLX LH DOOR |
1 | ||
| 84903-22040 |
GX71,MX75..GLX RH DOOR |
1 | ||
| 84903-22030 |
GX71,MX75..GLX LUGGAGE DOOR |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-22050 |
GX71,MX75..GLX LH DOOR |
1 | ||
| 84903-22040 |
GX71,MX75..GLX RH DOOR |
1 | ||
| 84903-22030 |
GX71,MX75..GLX LUGGAGE DOOR |
1 | ||
| 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK | ||||
| 84903-22050 |
GX71,MX75..GLX LH DOOR |
1 | ||
| 84903-22040 |
GX71,MX75..GLX RH DOOR |
1 | ||
| 84903-22030 |
GX71,MX75..GLX LUGGAGE DOOR |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22140 |
GX71,MX75,RX73,YX72 |
2 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22140 |
GX71,MX75,RX73,YX72 |
2 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-22010 |
GX71,MX75,RX73,YX72 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-22010 |
GX71,MX75,RX73,YX72 |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
