MX75R-XEPGFN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8812- )MX75

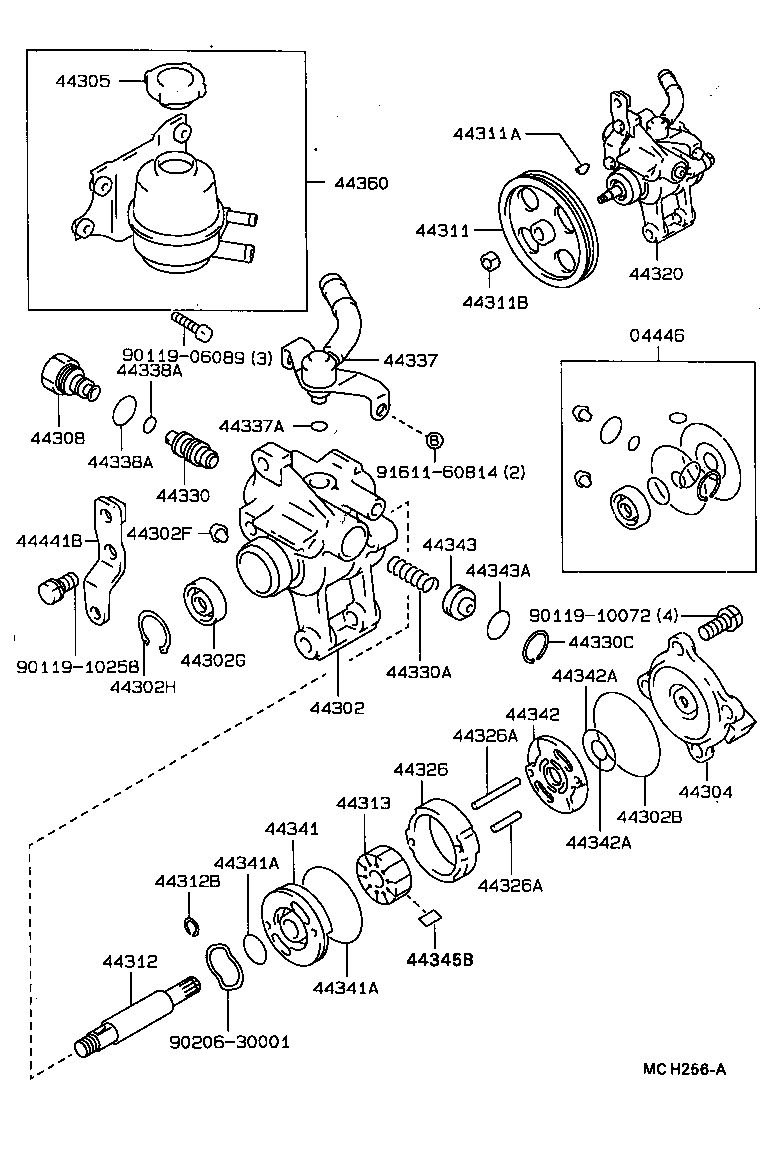

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302F 44302G 44302H 44304 44305 44308 44311 44311A 44311B 44312 44312B 44313 44320 44326 44326A 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44341 44341A 44341A 44342 44342A 44342A 44343 44343A 44345B 44360 44441B 9011906089 9011910072 9011910258 9020630001 9161160814
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30091

MX75

 1
04446-30090

MX75

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30090

MX75

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-63002

MX75

 1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05035

GX71,MX75

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18008

MX75

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-32001

MX75

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44324-30100

MX75

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-32030

GX71,MX75

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-22080

MX75

 1
44311 - PULLEY, VANE PUMP
44311-14050

MX75

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

GX71,MX75,RX7#

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90179-12022

GX71,MX75

 1
44312 - SHAFT, VANE PUMP
44312-12020

MX75

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

GX71,MX75

 1
44320 - PUMP ASSY, VANE
44320-22390

MX75

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-30150

MX75

NO MARK

 1
44325-30190

MX75

MARK 4

 1
44325-30170

MX75

MARK 2

 1
44325-30160

MX75

MARK 1

 1
44325-30180

MX75

MARK 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

MX75

L=25,OD=5.0

 1
90250-05017

MX75

L=43.5,OD=5.0

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

MX75

L=25,OD=5.0

 1
90250-05017

MX75

L=43.5,OD=5.0

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-30100

MX75

MARK A

 1
44330-30140

MX75

MARK E

 1
44330-30130

MX75

MARK D

 1
44330-30150

MX75

MARK F

 1
44330-30110

MX75

MARK B

 1
44330-30120

MX75

MARK C

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

GX71,MX75,RX7#

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-02200

MX75

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-22070

MX75

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013

MX75,RX7#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

MX75,RX7#

OD=25.5,ID=22.5

 1
96711-19014

MX75,RX7#

OD=17.0,ID=13.0

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

MX75,RX7#

OD=25.5,ID=22.5

 1
96711-19014

MX75,RX7#

OD=17.0,ID=13.0

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-30030

MX75

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-56002

MX75

OUTER

 1
90301-21001

MX75

INNER

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-56002

MX75

OUTER

 1
90301-21001

MX75

INNER

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-30020

MX75

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-13004

MX75

INNER

 1
90301-30004

MX75

OUTER

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-13004

MX75

INNER

 1
90301-30004

MX75

OUTER

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12030

MX75

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19019

MX75

 1
44345B - PLATE, VANE PUMP
44345-12030

GX71,MX75,RX7#

L=14.993

 10
44345-12010

GX71,MX75,RX7#

L=14.997

 10
44345-12050

GX71,MX75,RX7#

L=14.989

 10
44345-12020

GX71,MX75,RX7#

L=14.995

 10
44345-12040

GX71,MX75,RX7#

L=14.991

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22110

GX71,MX75

 1
44441B - BRACKET, PUMP, FRONT
44441-30070

MX75

 1
Common parts
90119-06089
90119-10072
90119-10258
90206-30001
91611-60814
