MX75R-XEMEFN (1988)

Toyota Cressida Wagon

Production Dec 1988 - May 1992
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

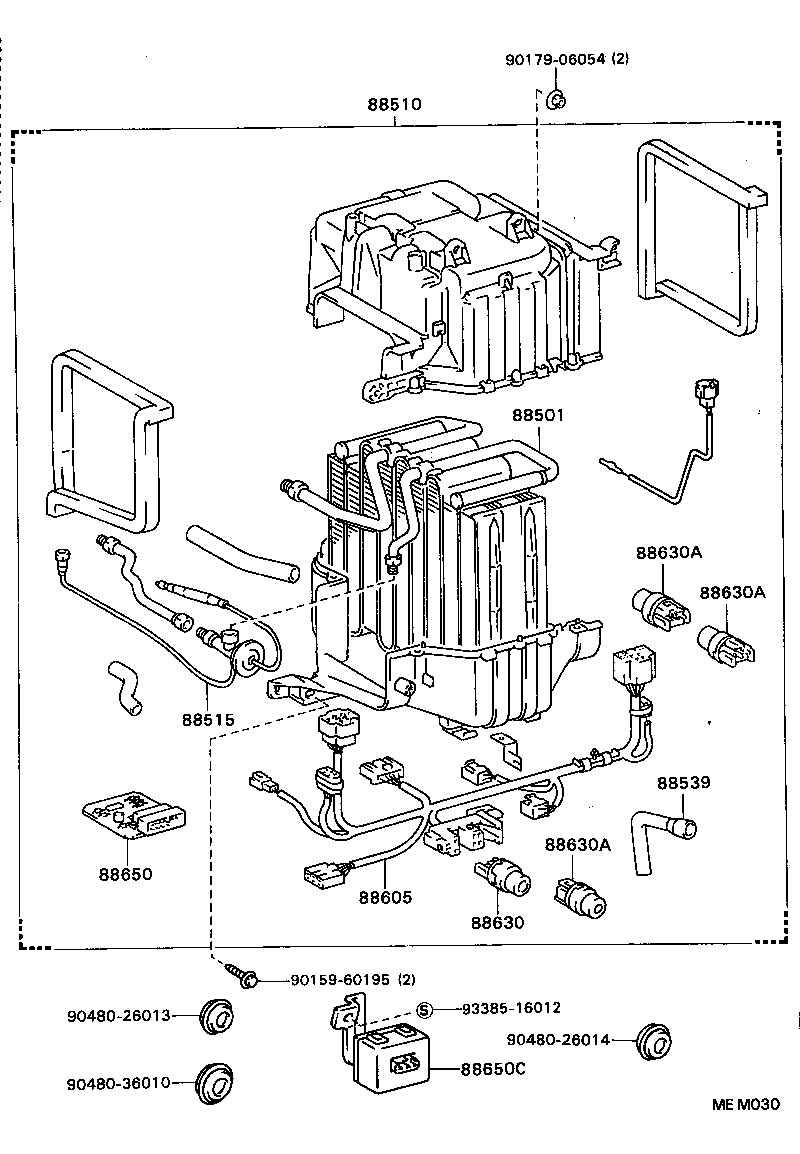

ILLUST NO. 1 OF 2(8810-9302)

Click highlighted areas on diagram

MAKER OPTION

diagram 88501 88510 88515 88539 88605 88630 88630A 88630A 88630A 88650 88650C 9015960195 9017906054 9048026013 9048026014 9048036010 9338516012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22152

GX71,MX75,RX7#,YX72..RHD

 1
88510 - UNIT ASSY, COOLER
88510-22251

MX75,RX7#,YX72..(GL,STD,XL)..SA

 1
88515 - VALVE, COOLER EXPANSION
88515-22070

GX71,MX75,RX7#,YX72..SA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

GX71,MX75,RX7#,YX72

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22320

MX75,RX7#,YX72..(GL,STD,XL)..SA

 1
88630 - RELAY ASSY, COOLER
90987-03001

RX72..LHD..GEN;GX71,MX75,RX7#,YX72..SA,V

 1
90987-03001

GX71,MX75,RX7#,YX72..SA

 1
Common parts
90159-60195
90179-06054
90480-26013
90480-26014
90480-36010
93385-16012
