TX62R-XEKRSN (1981)

Toyota Cressida

Production Jul 1981 - Aug 1982
Engine 3T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8107- )3T

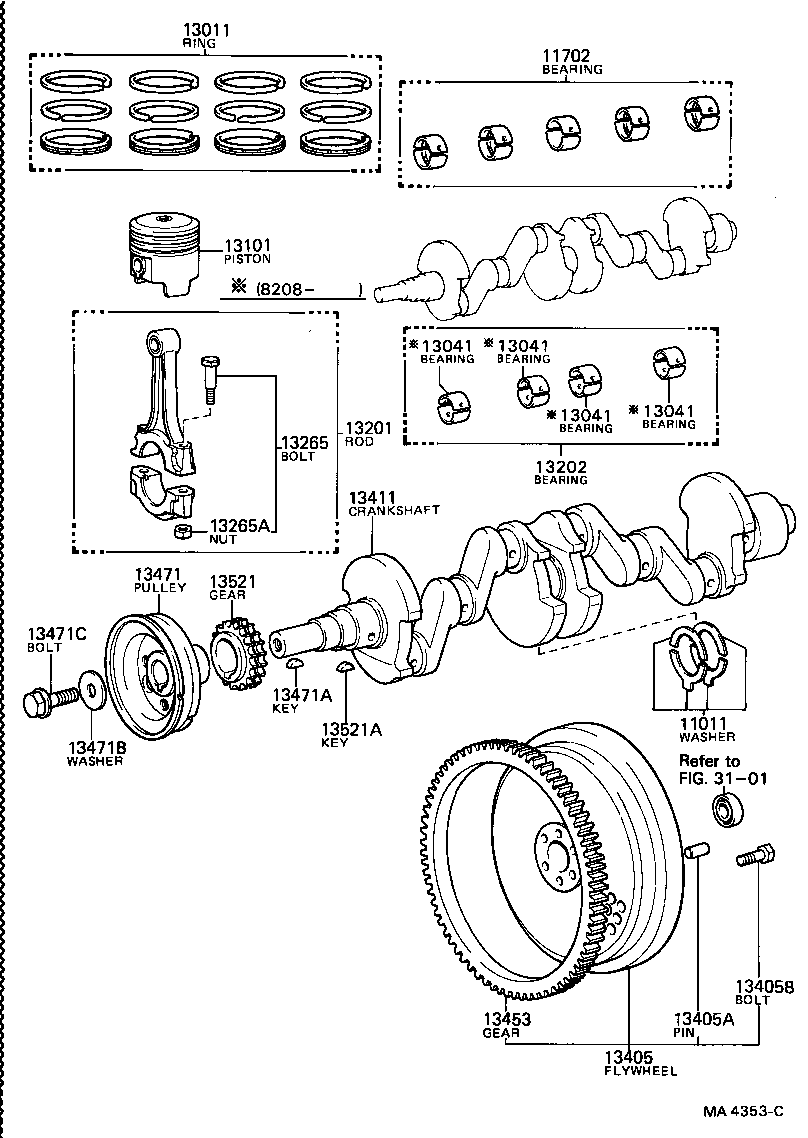

Click highlighted areas on diagram

diagram 11011 11702 13011 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471B 13471C 13521 13521A 3101
Part # Description Qty Price
13011 - RING SET, PISTON
13011-28030

3T..TX62

STD

 1
13014-28030

3T..TX62

O/S 0.75

 1
13015-28030

3T..TX62

O/S 1.00

 1
13013-28030

3T..TX62

O/S 0.50

 1
13201 - ROD SUB-ASSY, CONNECTING
13201-25010

3T..TX62

 4
13202 - BEARING SET, CONNECTING ROD
13202-25010

3T..TX62

STD

 1
13204-25010

3T..TX62

U/S 0.25

 1
13205-25010

3T..TX62

U/S 0.50

 1
13203-25010

3T..TX62

U/S 0.05

 1
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

3T..TX62

 12
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

3T..TX62..MTM

L=23,OD=8,L=23,OD=8

 3
13453 - GEAR, FLYWHEEL RING
13453-20010

3T..TX62..MTM

N=115

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

3T..TX62

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

3T..TX62

 1
Linked diagrams
3101
