TX62R-XEKRSN (1981)
Toyota Cressida
Production
Jul 1981
-
Aug 1982
Engine
3T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8107- )3T

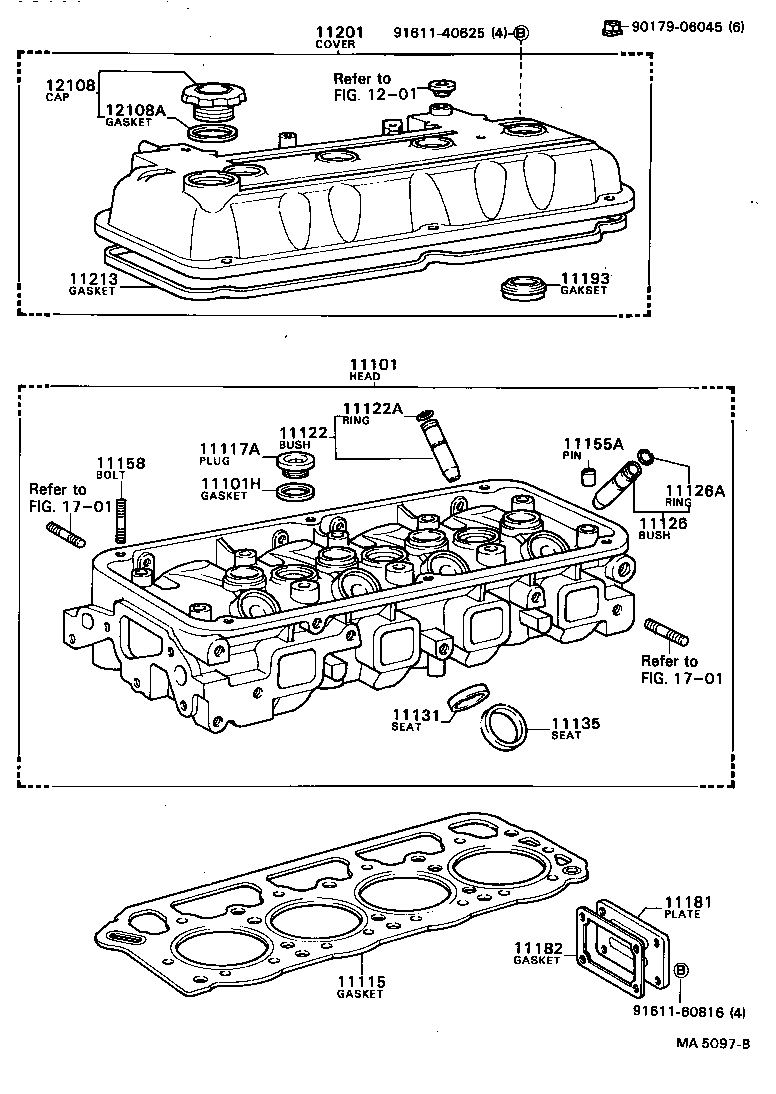

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
3T..TX62 |
6 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
3T..TX62 |
6 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-25010 |
3T..TX62 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
3T..TX62 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
3T..TX62 |
1 | ||
| Common parts | ||||
| 90179-06045 | ||||
| 91611-40625 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
