TX62R-XEHRSN (1981)
Toyota Cressida
Production
Jul 1981
-
Apr 1985
Engine
3T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8107- )3T

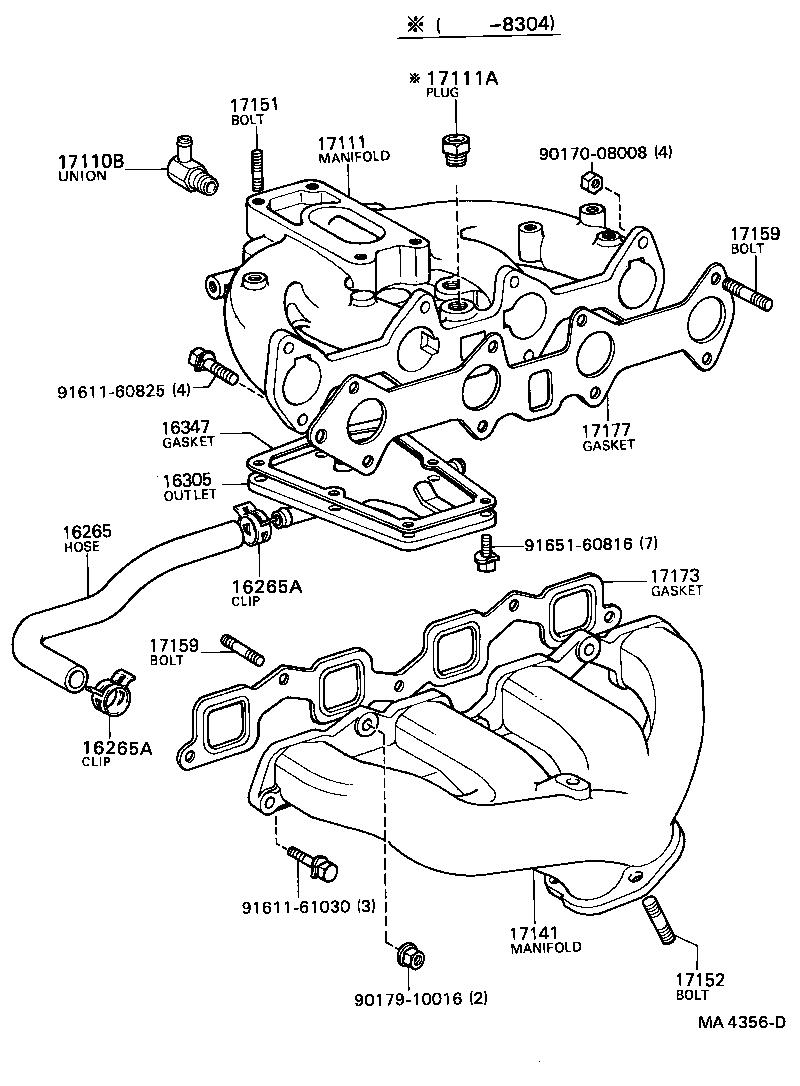

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 90445-21611 |
3T..TX62 |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-20005 |
3T..TX62 |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-20005 |
3T..TX62 |
2 | ||
| 16305 - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-25011 |
3T..TX62 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-25012 |
3T..TX62 |
1 | ||
| 16347-25011 |
3T..TX62 |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90407-09001 |
3T..TX62 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-26051 |
3T..TX62 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-53007 |
3T..TX62 |
1 | ||
| 90345-53002 |
3T..TX62 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-26012 |
3T..TX62 |
1 | ||
| 17141-27011 |
3T..TX62 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08023 |
3T..TX62 |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10056 |
3T..TX62 L=44,S=14&20 |
3 | ||
| 90116-10058 |
3T..TX62 L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08035 |
3T..TX62 INTAKE MANIFOLD |
4 | ||
| 92122-61025 |
3T..TX62 EXHAUST MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08035 |
3T..TX62 INTAKE MANIFOLD |
4 | ||
| 92122-61025 |
3T..TX62 EXHAUST MANIFOLD |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-25012 |
3T..TX62 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-25030 |
3T..TX62 |
1 | ||
| Common parts | ||||
| 90170-08008 | ||||
| 90179-10016 | ||||
| 91611-60825 | ||||
| 91611-61030 | ||||
| 91651-60816 | ||||
