RX81L-AEPESV (1989)

Toyota Cressida

Production Sep 1989 - Aug 1996
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)GX81,LX80,MX81,RX8#..4FC ; (9302-)4FC

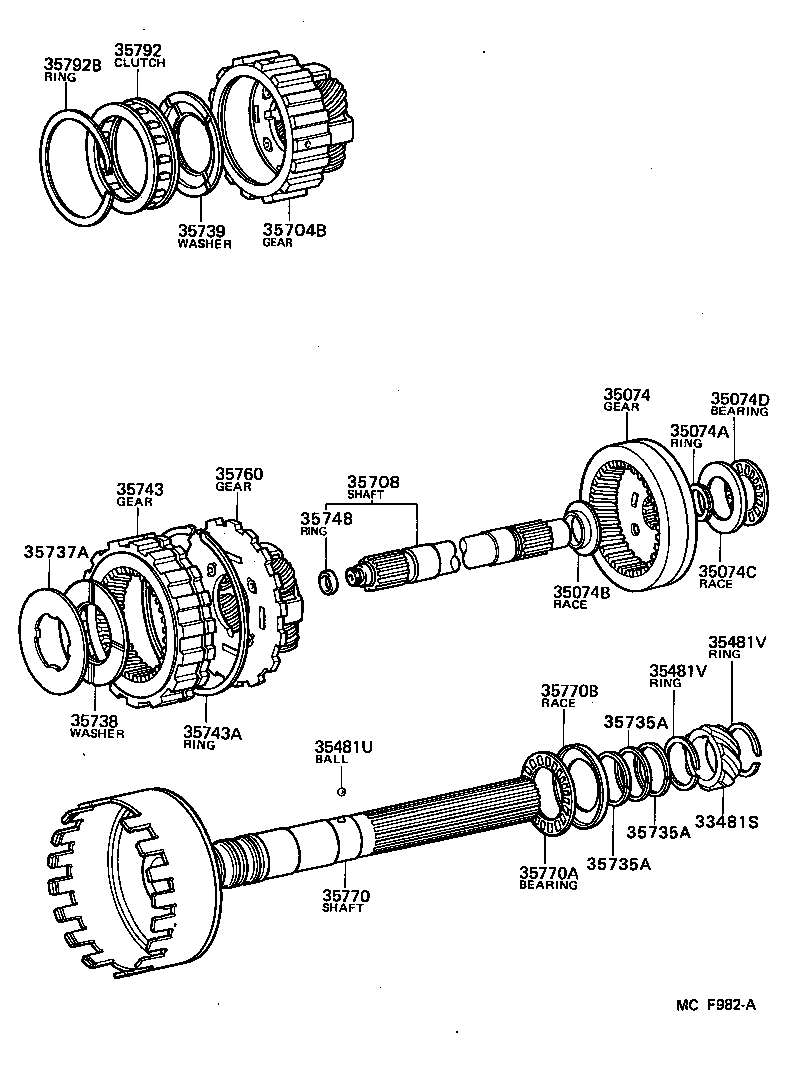

Click highlighted areas on diagram

A42D,A42DL,A43D,A43DL

diagram 33481S 35074 35074A 35074B 35074C 35074D 35481U 35481V 35481V 35704B 35708 35735A 35735A 35735A 35737A 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-26011

GX81,LX80,MX81,RX8#..4FC

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30030

MX81,RX8#..4FC

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

GX81,LX80,MX81,RX8#..4FC

 1
35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON
35789-22050

GX81,LX80,MX81,RX8#..4FC

 1
35789-30180

MX81,RX8#..4FC

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

GX81,LX80,MX81,RX8#..4FC

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

GX81,LX80,MX81,RX8#..4FC

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

GX81,LX80,MX8#,RX8#..4FC

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

GX81,LX80,MX81,RX8#..4FC

T=1.50,OD=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

GX81,LX80,MX81,RX8#..4FC

T=1.50,OD=33.8

 2
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-30030

MX81,RX8#..4FC

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30041

MX81,RX8#..4FC

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

GX81,LX80,MX81,RX8#..4FC

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

GX81,LX80,MX81,RX8#..4FC

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

GX81,LX80,MX81,RX8#..4FC

 3
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-30020

MX81,RX8#..4FC

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30010

MX81,RX8#..4FC

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30010

MX81,RX8#..4FC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30010

MX81,RX8#..4FC

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

GX81,LX80,MX81,RX8#..4FC

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

GX81,LX80,MX81,RX8#..4FC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30030

MX81,RX8#..4FC

 1
35770 - SHAFT ASSY, OUTPUT
35770-30010

MX81,RX8#..4FC

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

GX81,LX80,MX81,RX8#..4FC

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

GX81,LX80,MX81,RX8#..4FC

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30011

MX81,RX8#..4FC

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

GX81,LX80,MX81,RX8#..4FC

 1
