RX81L-AEMES (1988)
Toyota Cressida
Production
Aug 1988
-
Aug 1990
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )RX8#

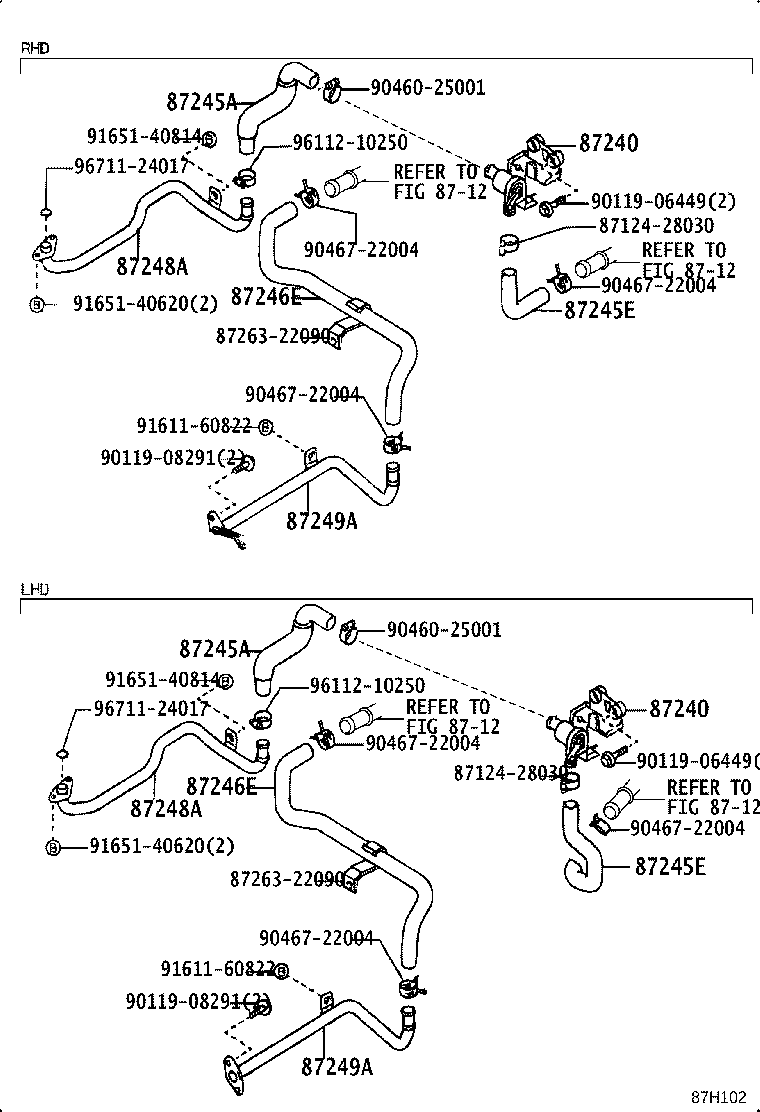

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22340 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22340 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2A140 |
RX8#..LHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2A140 |
RX8#..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-2A190 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-2A190 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-2A210 |
RX8#..LHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-2A210 |
RX8#..LHD |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-22130 |
RX8# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-22130 |
RX8# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-22030 |
RX8# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-22030 |
RX8# |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87263-22090 | ||||
| 90119-06449 | ||||
| 90119-08291 | ||||
| 90460-25001 | ||||
| 90467-22004 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||
| 91651-40814 | ||||
| 96112-10250 | ||||
| 96711-24017 | ||||
| Linked diagrams | ||||
| 8712 | ||||
