RX81L-AEMES (1988)
Toyota Cressida
ILLUST NO. 1 OF 6(8808- )RX8#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81,MX8#,RX8# 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,LX80,MX8#,RX8# 20A,YELLOW,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,LX80,MX8#,RX8# 15A,COWL SIDE |
6 | ||
| 90982-09005 |
RX8# 7.5A,E/G ROOM J/B |
1 | ||
| 90982-09005 |
GX81,LX80,MX8#,RX8# 7.5A,COWL SIDE |
5 | ||
| 90982-09002 |
GX81,LX80,MX8#,RX8# 10A,COWL SIDE |
1 | ||
| 90982-09004 |
GX81,MX8#,RX8# 20A,YELLOW,E/G ROOM J/B |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81,MX8#,RX8# 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,LX80,MX8#,RX8# 20A,YELLOW,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,LX80,MX8#,RX8# 15A,COWL SIDE |
6 | ||
| 90982-09005 |
RX8# 7.5A,E/G ROOM J/B |
1 | ||
| 90982-09005 |
GX81,LX80,MX8#,RX8# 7.5A,COWL SIDE |
5 | ||
| 90982-09002 |
GX81,LX80,MX8#,RX8# 10A,COWL SIDE |
1 | ||
| 90982-09004 |
GX81,MX8#,RX8# 20A,YELLOW,E/G ROOM J/B |
3 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-22360 |
RX80;GX81,RX81..LHD |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22070 |
GX81,LX80,MX8#,RX8# NO.1 |
1 | ||
| 82670-22050 |
RX8# ENGINE ROOM |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22080 |
RX8# UPPER |
1 | ||
| 82672-22090 |
RX8# LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22080 |
RX8# UPPER |
1 | ||
| 82672-22090 |
RX8# LOWER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22040 |
RX8# NO.2 |
1 | ||
| 82673-22020 |
RX8# NO.1 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22040 |
RX8# NO.2 |
1 | ||
| 82673-22020 |
RX8# NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
RX8# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GX81,LX80,MX81,RX8#..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GX81,LX80,MX8#,RX8# MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
GX81,LX80,MX8#,RX8# *ND,TAIL LAMP |
1 | ||
| 90987-02006 |
GX81,LX80,MX8#,RX8# HEADLAMP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
GX81,LX80,MX8#,RX8# MARUKO |
1 | ||
| 90987-02004 |
GX81,LX80,MX8#,RX8# NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-60080 |
RX8# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-22060 |
MX81,RX8# |
1 | ||
| Common parts | ||||
| 82710-22080 | ||||
| 82711-12200 | ||||
| 90119-06157 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90464-00073 | ||||
| 90464-00157 | ||||
| 90468-08002 | ||||
| 91611-60812 | ||||
| 91651-40610 | ||||
| 91655-F0616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||

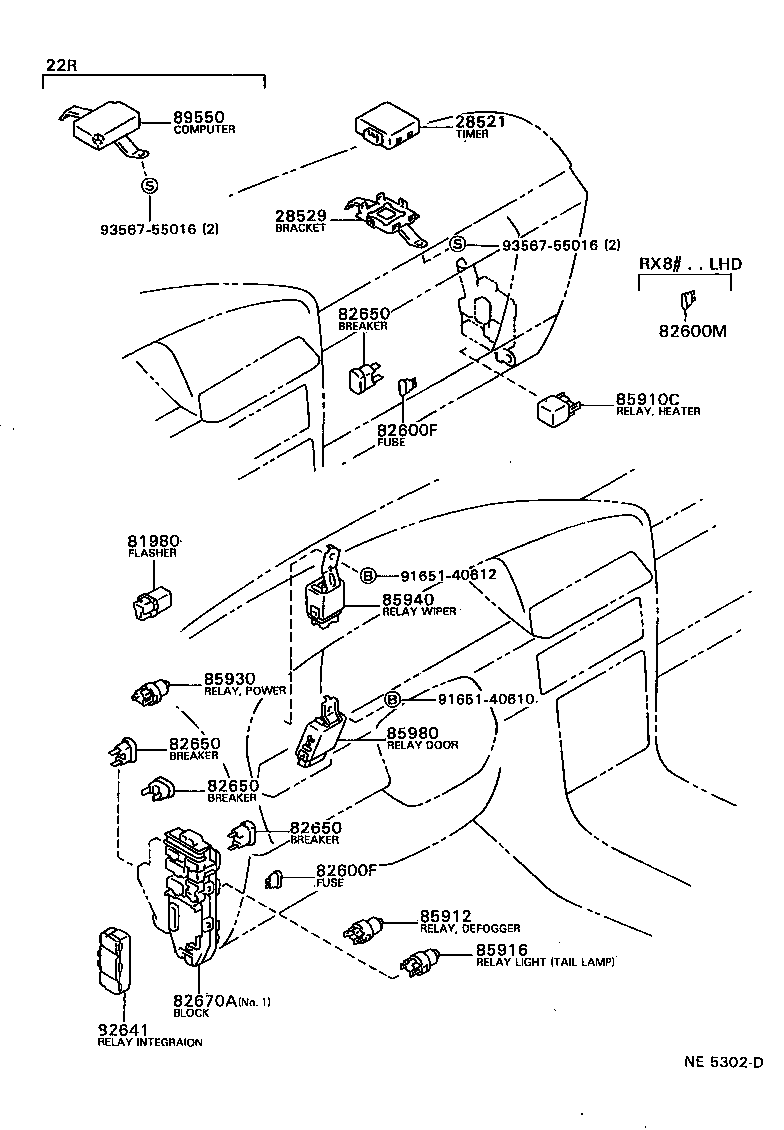

ILLUST NO. 2 OF 6(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30110 |
GX81,RX8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81,MX8#,RX8# 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,LX80,MX8#,RX8# 20A,YELLOW,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,LX80,MX8#,RX8# 15A,COWL SIDE |
6 | ||
| 90982-09005 |
RX8# 7.5A,E/G ROOM J/B |
1 | ||
| 90982-09005 |
GX81,LX80,MX8#,RX8# 7.5A,COWL SIDE |
5 | ||
| 90982-09002 |
GX81,LX80,MX8#,RX8# 10A,COWL SIDE |
1 | ||
| 90982-09004 |
GX81,MX8#,RX8# 20A,YELLOW,E/G ROOM J/B |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX81,MX8#,RX8# 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,LX80,MX8#,RX8# 20A,YELLOW,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,LX80,MX8#,RX8# 15A,COWL SIDE |
6 | ||
| 90982-09005 |
RX8# 7.5A,E/G ROOM J/B |
1 | ||
| 90982-09005 |
GX81,LX80,MX8#,RX8# 7.5A,COWL SIDE |
5 | ||
| 90982-09002 |
GX81,LX80,MX8#,RX8# 10A,COWL SIDE |
1 | ||
| 90982-09004 |
GX81,MX8#,RX8# 20A,YELLOW,E/G ROOM J/B |
3 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-24010 |
LX80,RX8#..GEN |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX8#,RX8# 30A |
2 | ||
| 82650-20020 |
GX81,LX80,MX8#,RX8# 40A |
1 | ||
| 82650-35010 |
RX80..GL;RX80..LHD..XL;GX81,LX80,MX8#,RX81 20A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX8#,RX8# 30A |
2 | ||
| 82650-20020 |
GX81,LX80,MX8#,RX8# 40A |
1 | ||
| 82650-35010 |
RX80..GL;RX80..LHD..XL;GX81,LX80,MX8#,RX81 20A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX8#,RX8# 30A |
2 | ||
| 82650-20020 |
GX81,LX80,MX8#,RX8# 40A |
1 | ||
| 82650-35010 |
RX80..GL;RX80..LHD..XL;GX81,LX80,MX8#,RX81 20A |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81,LX80,MX8#,RX8# 30A |
2 | ||
| 82650-20020 |
GX81,LX80,MX8#,RX8# 40A |
1 | ||
| 82650-35010 |
RX80..GL;RX80..LHD..XL;GX81,LX80,MX8#,RX81 20A |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22070 |
GX81,LX80,MX8#,RX8# NO.1 |
1 | ||
| 82670-22050 |
RX8# ENGINE ROOM |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GX81,LX80,MX8#,RX8# MARUKO |
1 | ||
| 90987-02004 |
GX81,LX80,MX8#,RX8# NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02002 |
GX81,LX80,MX8#,RX8# MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
GX81,LX80,MX8#,RX8# *ND,TAIL LAMP |
1 | ||
| 90987-02006 |
GX81,LX80,MX8#,RX8# HEADLAMP |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02004 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX NIPPONDENSO |
1 | ||
| 90987-02002 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX MARUKO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22130 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22180 |
GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 6(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22280 |
GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) W(RADIO SWITCH) |
1 | ||
| 84091-22310 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10350 |
GX81,LX80,MX81,RX8#..GD,GL,GLX SATELLITE |
1 | ||
| 84999-10320 |
GX81,LX80,MX8#,RX8# HAZARD |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10350 |
GX81,LX80,MX81,RX8#..GD,GL,GLX SATELLITE |
1 | ||
| 84999-10320 |
GX81,LX80,MX8#,RX8# HAZARD |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-22200 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30040 |
GX81,LX80,MX8#,RX8# TOKAIRIKA |
1 | ||
| 84340-22080 |
GX81,LX80,MX8#,RX8# MATSUSHITA |
1 | ||
| 84340-30030 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 84340-28010 |
GX81,LX80,MX8#,RX8# TOKAIRIKA |
1 | ||
| 84340-30030 |
GX81,LX80,MX8#,RX8# MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22080 |
GX81..RHD;LX80,MX81,RX8#..GD,GL,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22140 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22140 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
GX81,LX80,MX81,RX8# 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22160 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22110 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22120 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22020 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| Common parts | ||||
| 84587-22010 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80014 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22070 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22740 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84310-22730 |
GX81,LX80,MX81,RX8#..LHD W(INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22190 |
GX81,MX8#,RX8#..GD,GL,GLX |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22470 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 84652-22460 |
GX81,LX80,MX81,RX8#..LHD W(INTERMITTENT WIPER) |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8408 | ||||
ILLUST NO. 5 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22040 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 84231-16060 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-22030 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 84742 - SWITCH, SLIDE ROOF LIMIT | ||||
| 84742-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22290 |
GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22091 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX LH |
1 | ||
| 84931-22081 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22091 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX LH |
1 | ||
| 84931-22081 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX RH |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22070 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 89720 - COMPUTER ASSY, SLIDING ROOF CONTROL | ||||
| 89720-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| Common parts | ||||
| 82711-2A500 | ||||
| 82711-32360 | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-60219 | ||||
| 90467-10012 | ||||
| 90467-10092 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
| 93540-14012 | ||||
| 93567-55014 | ||||
ILLUST NO. 6 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80129 |
RX8# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22050 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22230 |
GX81,LX80,MX81,RX8# |
1 | ||
| Common parts | ||||
| 90159-50160 | ||||
| 90159-50219 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
