RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

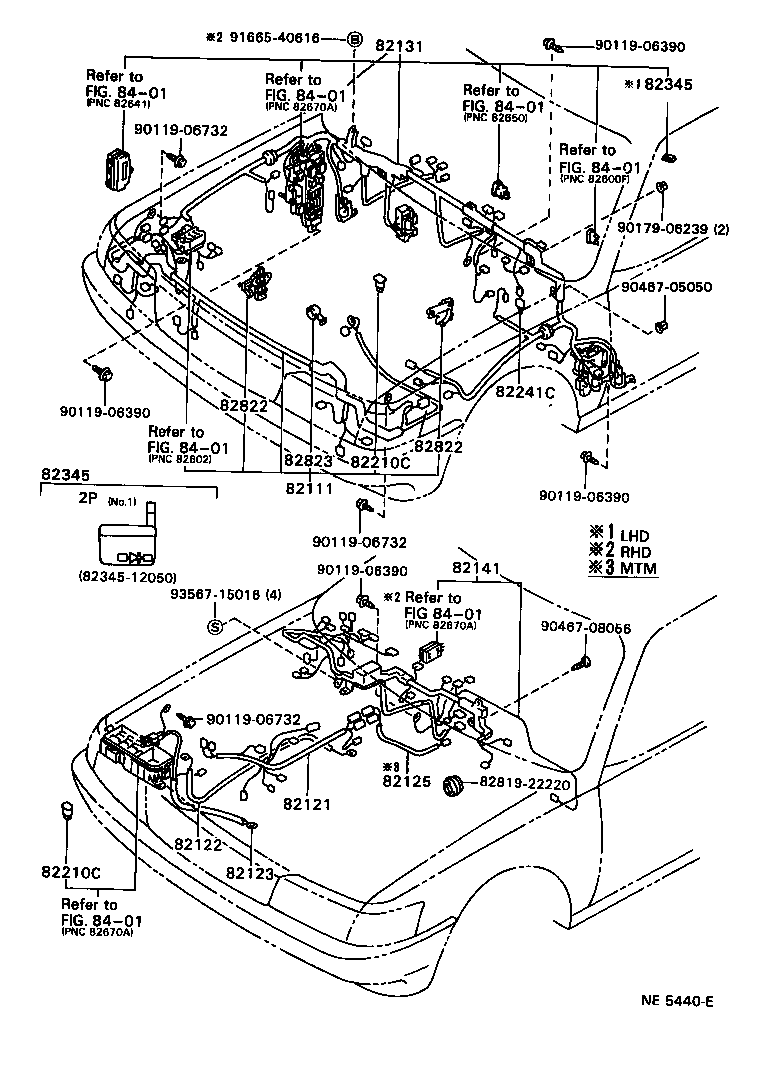

ILLUST NO. 1 OF 7(8808- )RX8#

Click highlighted areas on diagram

diagram 82111 82121 82122 82123 82125 82131 82141 82210C 82210C 82241C 82345 82345 8234512050 8281922220 82822 82822 82823 8401 8401 8401 8401 8401 8401 8401 9011906390 9011906390 9011906390 9011906390 9011906732 9011906732 9011906732 9017906239 9046705050 9046708056 9166540616 9356715016
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2A320

RX8#..LHD

 1
82111-2A130

RX8#..LHD

 1
82121 - WIRE, ENGINE
82121-22650

RX8#

 1
82122 - WIRE, ENGINE, NO.2
82122-22130

RX8#

 1
82123 - WIRE, ENGINE, NO.3
82123-22090

RX8#

W(55D23R BATTERY)

 1
82123-22080

RX8#

 1
82125 - WIRE, TRANSMISSION
82125-22080

GX81..RHD..5F;LX80,MX81,RX8#..5F

 1
82131 - WIRE, COWL
82131-2A860

RX8#..LHD..GEN

 1
82141 - WIRE, INSTRUMENT PANEL
82141-22560

RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GD,GL,GLX)

W(FRONT DOOR SPEAKER)

 1
82141-22560

GX81,MX81,RX8#..LHD..(GD,GL,GLX)

W(FRONT DOOR SPEAKER)

 1
82141-22450

GX81,MX81,RX8#..LHD

 1
82210C - FUSIBLE LINK
90982-08188

GX81,LX80,MX8#,RX8#

30A,TERM.:FEMALE,PNK,E/G ROOM J/B

 1
90982-08189

GX81,MX8#,RX8#

40A,TERM.:FEMALE,GRN,E/G ROOM J/B

 1
90982-08189

GX81,LX80,MX8#,RX8#

40A,TERM.:FEMALE,GRN,E/G ROOM J/B

 1
90982-08246

RX80;GX81,RX81..LHD

100A,TERM.:MALE,BLUE

 1
82210C - FUSIBLE LINK
90982-08188

GX81,LX80,MX8#,RX8#

30A,TERM.:FEMALE,PNK,E/G ROOM J/B

 1
90982-08189

GX81,MX8#,RX8#

40A,TERM.:FEMALE,GRN,E/G ROOM J/B

 1
90982-08189

GX81,LX80,MX8#,RX8#

40A,TERM.:FEMALE,GRN,E/G ROOM J/B

 1
90982-08246

RX80;GX81,RX81..LHD

100A,TERM.:MALE,BLUE

 1
82241C - WIRE, RELAY
82241-22130

GX81,LX80,MX81,RX8#

 1
82345 - DIODE
82345-12050

GX81,LX80,MX81,RX8#..LHD

 1
82345 - DIODE
82345-12050

GX81,LX80,MX81,RX8#..LHD

 1
82822 - BRACKET,CONNECTOR BLOCK
82822-22140

RX8#

LH

 1
82822-22160

RX80;GX81,LX80,MX81,RX81..LHD

RH

 1
82822 - BRACKET,CONNECTOR BLOCK
82822-22140

RX8#

LH

 1
82822-22160

RX80;GX81,LX80,MX81,RX81..LHD

RH

 1
Common parts
82345-12050
82819-22220
90119-06390
90119-06732
90179-06239
90467-05050
90467-08056
91665-40616
93567-15016
Linked diagrams
8401

ILLUST NO. 2 OF 7(8808- )LHD

Click highlighted areas on diagram

diagram 82151 82152 82153 82154 82161 82162 82167 82171 82181 82186 82817B 9011906005 9011906005 9011906005 9011906005 9011906005 904670805601 9046708074 904671007103 9095001005 9095001005 9095001169 9095001169 9095001310
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-22400

GX81,MX81,RX8#..LHD..(GD,GL,GLX)

 1
82152 - WIRE, FRONT DOOR, LH
82152-22370

GX81,MX81,RX8#..LHD..(GD,GL,GLX)

 1
82153 - WIRE, REAR DOOR, NO.1
82153-22090

GX81,LX80,MX8#,RX8#..GD,GL,GLX

 1
82154 - WIRE, REAR DOOR, NO.2
82154-22070

GX81,LX80,MX8#,RX8#..GD,GL,GLX

 1
82161 - WIRE, FLOOR
82161-22820

LX80,RX8#..LHD..GL

 1
82162 - WIRE, FLOOR, NO.2
82162-22440

GX81,MX81,RX8#..LHD..(GD,GL,GLX)

 1
82171 - WIRE, ROOF, NO.1
82171-22220

LX80,MX81,RX8#..LHD..(GL,XL)

 1
82171-22290

GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX)

W(MOON ROOF)

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-22230

GX81,LX80,MX81,RX8#..GEN

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-22050

GX81,LX80,MX81,RX8#

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-22600

GX81,LX80,MX8#,RX8#

 1
Common parts
90119-06005
90467-0805601
90467-08074
90467-1007103
90950-01005
90950-01169
90950-01310

ILLUST NO. 3 OF 7(8808- )

Click highlighted areas on diagram

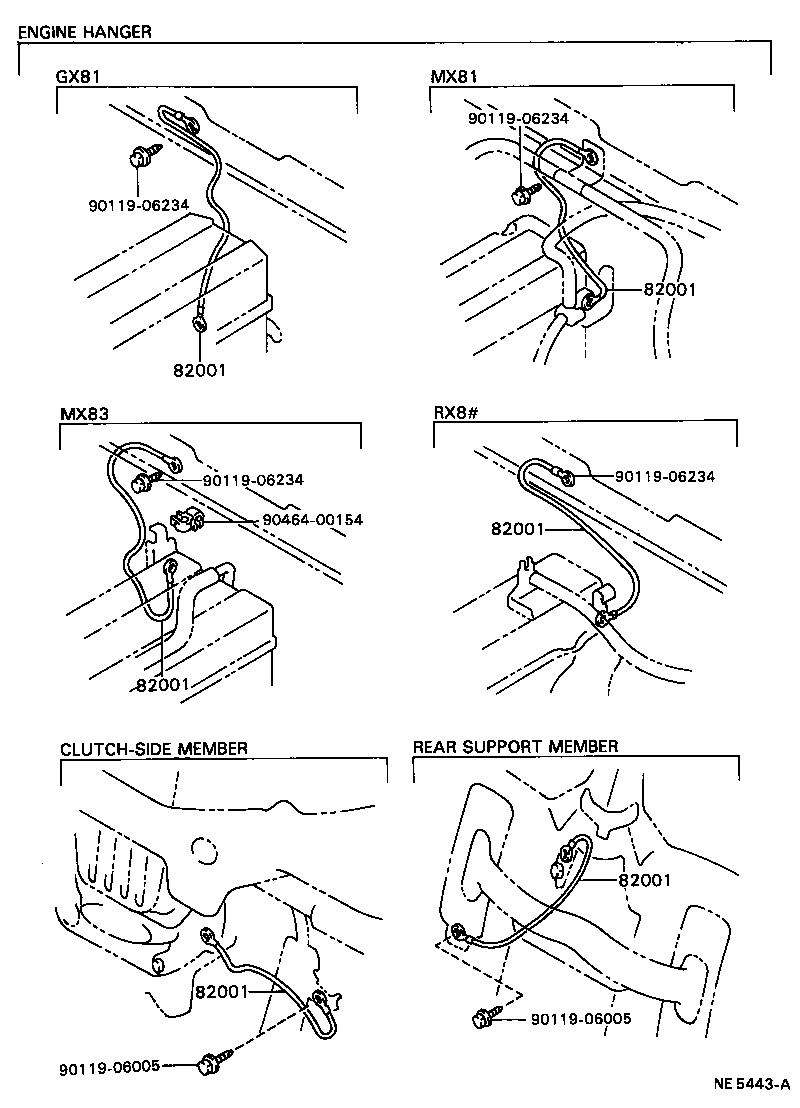

CABLE BOND

diagram 82001 82001 82001 82001 82001 82001 9011906005 9011906005 9011906234 9011906234 9011906234 9011906234 9046400154
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07200

MX83,RX8#

ENGINE HANGER

 1
90980-07156

GX81,MX81,RX8#..GEN

C/L SIDE M.RR SUP M.

 2
90980-07200

RX8#

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07200

MX83,RX8#

ENGINE HANGER

 1
90980-07156

GX81,MX81,RX8#..GEN

C/L SIDE M.RR SUP M.

 2
90980-07200

RX8#

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07200

MX83,RX8#

ENGINE HANGER

 1
90980-07156

GX81,MX81,RX8#..GEN

C/L SIDE M.RR SUP M.

 2
90980-07200

RX8#

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07200

MX83,RX8#

ENGINE HANGER

 1
90980-07156

GX81,MX81,RX8#..GEN

C/L SIDE M.RR SUP M.

 2
90980-07200

RX8#

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07200

MX83,RX8#

ENGINE HANGER

 1
90980-07156

GX81,MX81,RX8#..GEN

C/L SIDE M.RR SUP M.

 2
90980-07200

RX8#

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07200

MX83,RX8#

ENGINE HANGER

 1
90980-07156

GX81,MX81,RX8#..GEN

C/L SIDE M.RR SUP M.

 2
90980-07200

RX8#

ENGINE HANGER

 1
Common parts
90119-06005
90119-06234
90464-00154

ILLUST NO. 4 OF 7(8808- )

Click highlighted areas on diagram

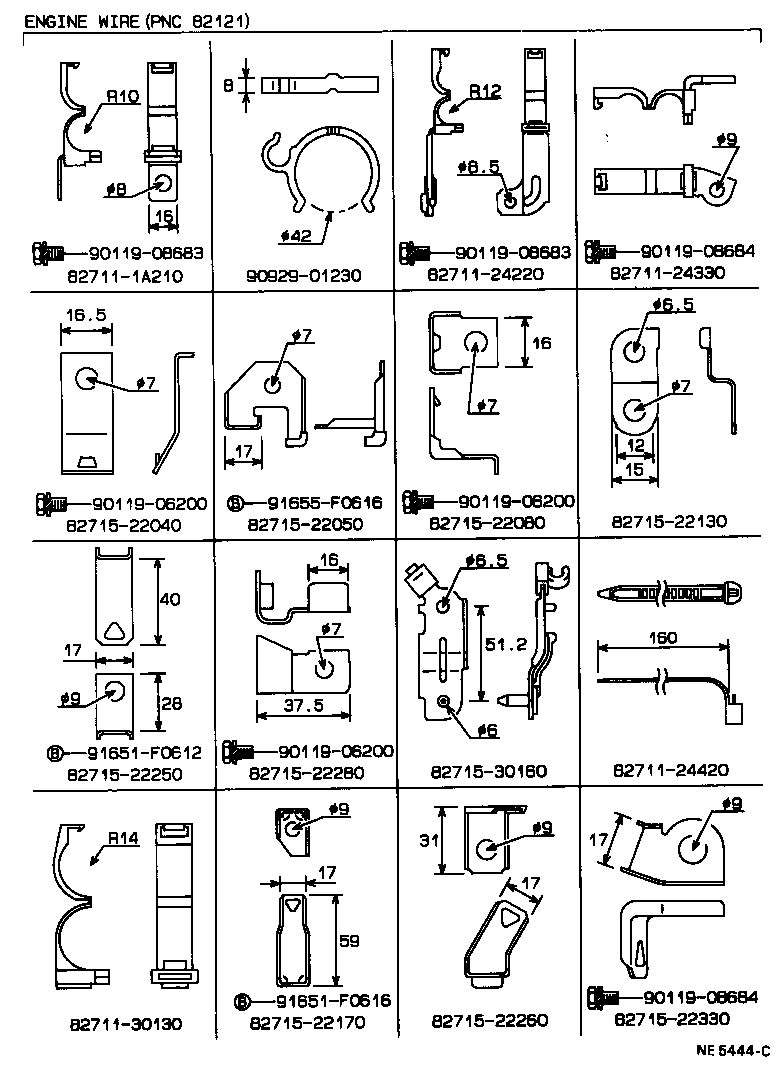

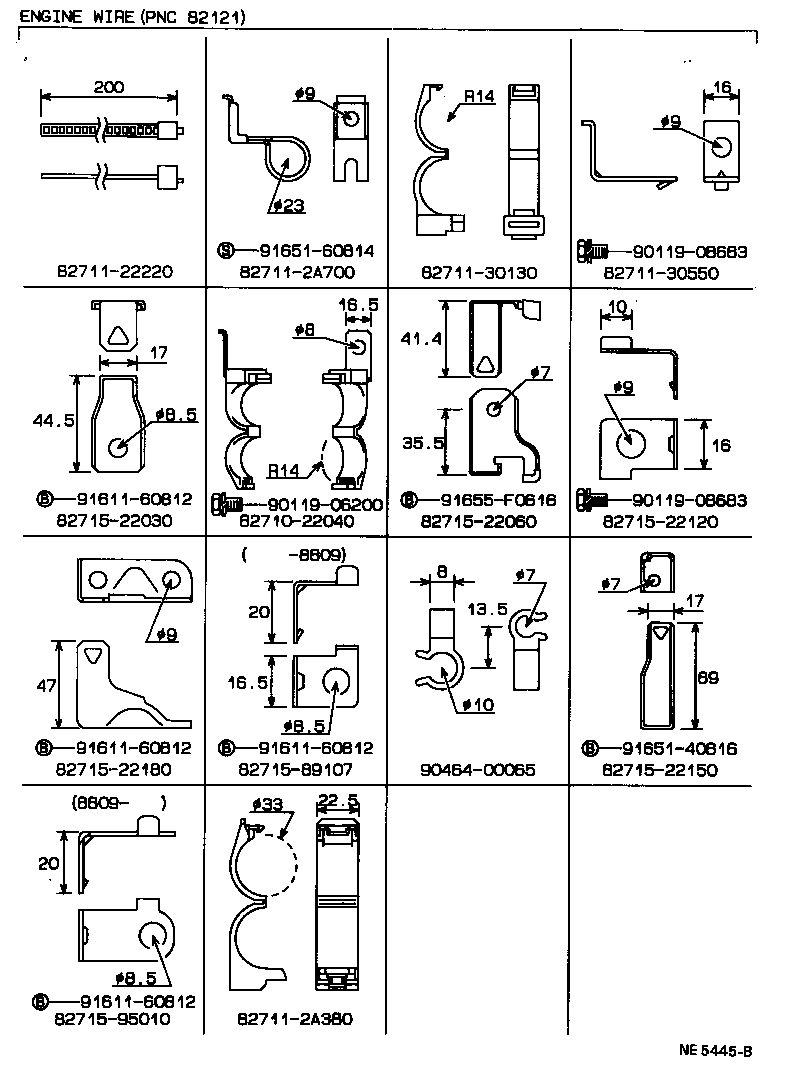

CLAMPS & BRACKETS

diagram 82121 827111A210 8271124220 8271124330 8271124420 8271130130 8271522040 8271522050 8271522080 8271522130 8271522170 8271522250 8271522260 8271522280 8271522330 8271530160 9011906200 9011906200 9011906200 9011908683 9011908683 9011908684 9011908684 9092901230 91651F0612 91651F0616 91655F0616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-22650

RX8#

 1
Common parts
82711-1A210
82711-24220
82711-24330
82711-24420
82711-30130
82715-22040
82715-22050
82715-22080
82715-22130
82715-22170
82715-22250
82715-22260
82715-22280
82715-22330
82715-30160
90119-06200
90119-08683
90119-08684
90929-01230
91651-F0612
91651-F0616
91655-F0616

ILLUST NO. 5 OF 7(8808- )

Click highlighted areas on diagram

CLAMPS & BRACKETS

diagram 82121 8271022040 8271122220 827112A380 827112A700 8271130130 8271130550 8271522030 8271522060 8271522120 8271522150 8271522180 8271589107 8271595010 9011906200 9011908683 9011908683 9046400065 9161160812 9161160812 9161160812 9161160812 9165140616 9165160814 91655F0616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-22650

RX8#

 1
Common parts
82710-22040
82711-22220
82711-2A380
82711-2A700
82711-30130
82711-30550
82715-22030
82715-22060
82715-22120
82715-22150
82715-22180
82715-89107
82715-95010
90119-06200
90119-08683
90464-00065
91611-60812
91651-40616
91651-60814
91655-F0616

ILLUST NO. 6 OF 7(8808- )

Click highlighted areas on diagram

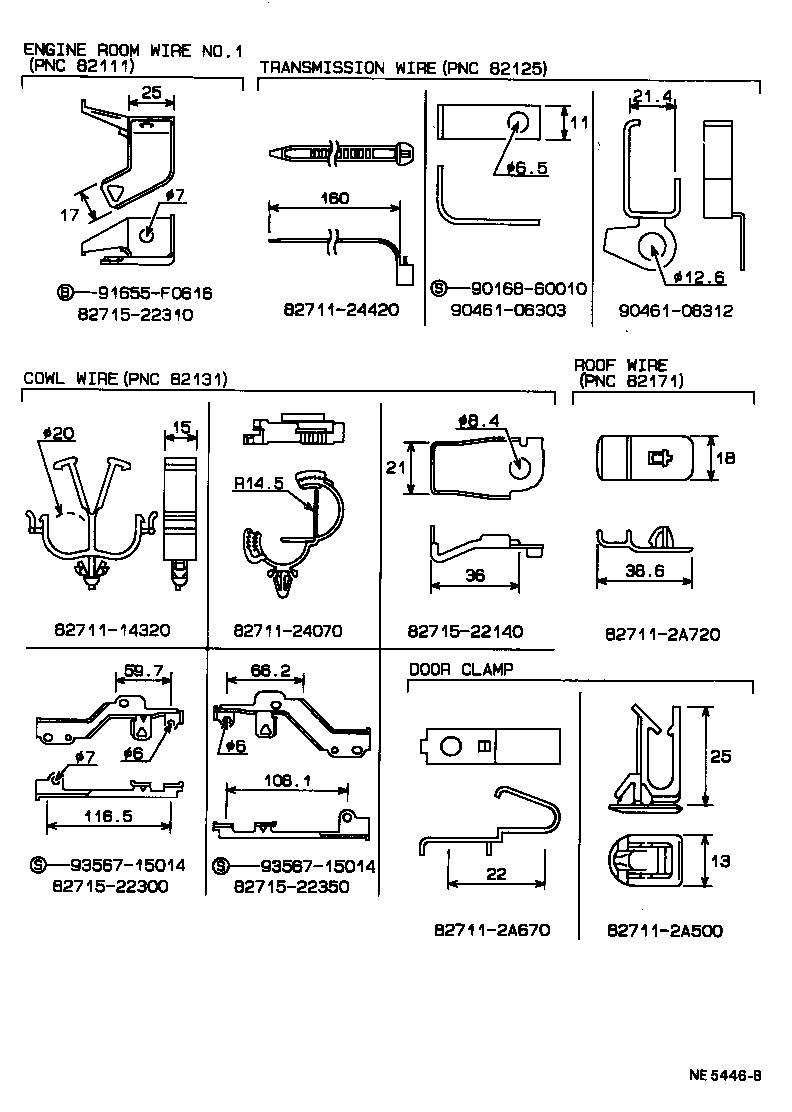

CLAMPS & BRACKETS

diagram 82111 82125 82131 82171 8271114320 8271124070 8271124420 827112A500 827112A670 827112A720 8271522140 8271522300 8271522310 8271522350 9016860010 9046106303 9046108312 91655F0616 9356715014 9356715014
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2A320

RX8#..LHD

 1
82111-2A130

RX8#..LHD

 1
82125 - WIRE, TRANSMISSION
82125-22080

GX81..RHD..5F;LX80,MX81,RX8#..5F

 1
82131 - WIRE, COWL
82131-2A860

RX8#..LHD..GEN

 1
82171 - WIRE, ROOF, NO.1
82171-22220

LX80,MX81,RX8#..LHD..(GL,XL)

 1
82171-22290

GX81,LX80,MX81,RX8#..LHD..(GD,GL,GLX)

W(MOON ROOF)

 1
Common parts
82711-14320
82711-24070
82711-24420
82711-2A500
82711-2A670
82711-2A720
82715-22140
82715-22300
82715-22310
82715-22350
90168-60010
90461-06303
90461-08312
91655-F0616
93567-15014
