RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

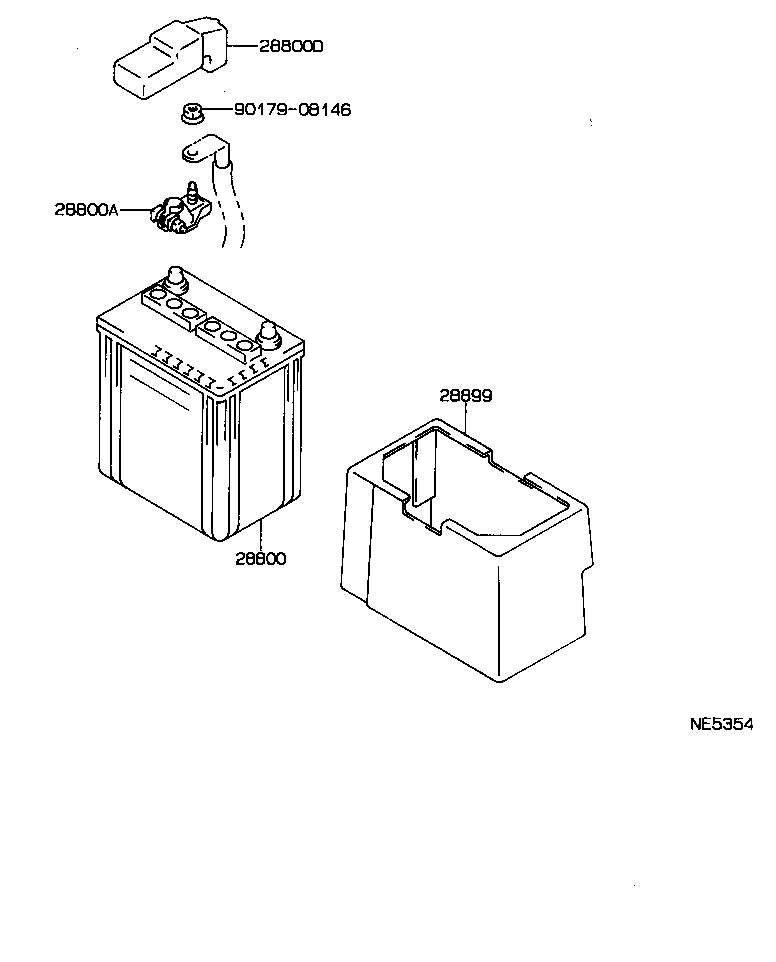

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28899 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-14010

22R..RX8#

55D23R

 1
28800-37011

22R..RX80..RHD;22R..RX8#..LHD..5F

34B19R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

22R..RX8#

W(55D23R BATTERY),SUMITOMO

 1
90982-05037

22R..RX8#

W(55D23R BATTERY),YAZAKI

 1
90982-05037

22R..RX81..5F;22R..RX80..GEN;22R..RX80..4FC..V

W(55D23R BATTERY),YAZAKI

 1
90982-05028

22R,1GFE..GX81,RX8#

SUMITOMO

 1
90982-05030

22R..RX81..5F;22R..RX80..GEN;22R..RX80..4FC..V

W(55D23R BATTERY),SUMITOMO

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

22R,1GFE,2L,5ME,7MGE..GX81,LX80,MX8#,RX8#

 1
Common parts
90179-08146
