RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

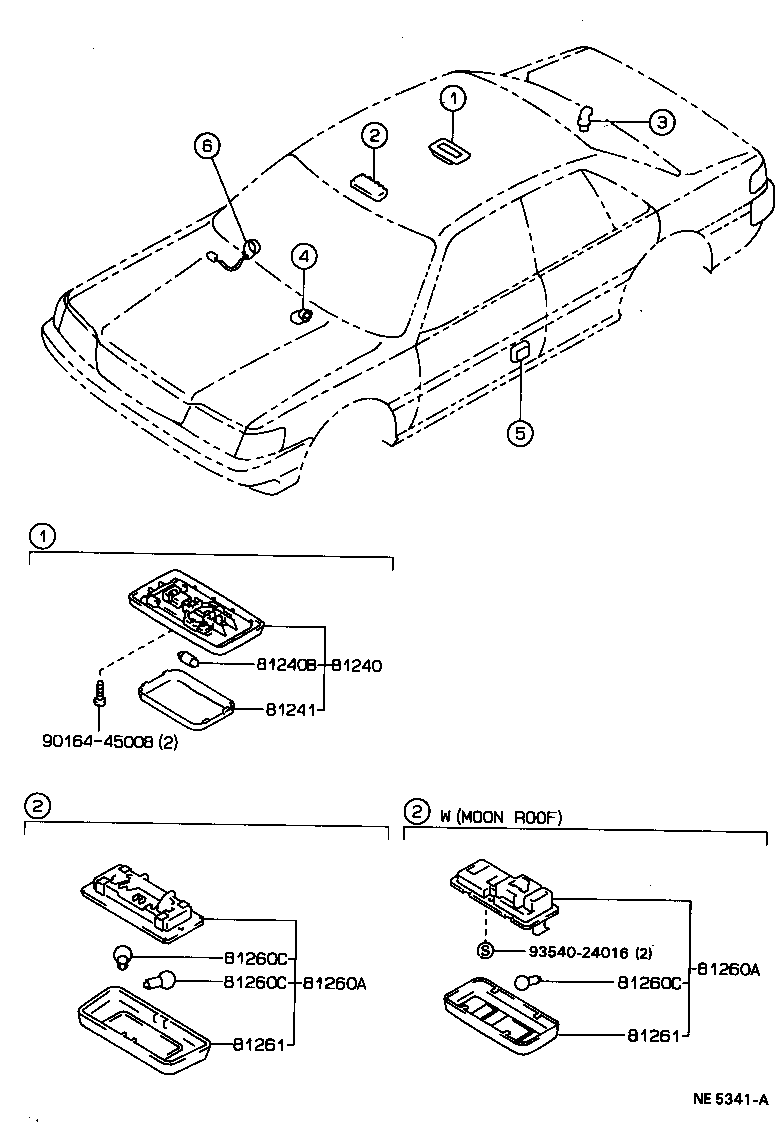

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260A 81260A 81260C 81260C 81260C 81261 81261 9016445008 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2211006

MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX

W(MOON ROOF),SABLE,TRIM3#,4#

 1
81240-2211004

MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX

W(MOON ROOF),BLUE,TRIM8#

 1
81240-2210004

GX81,LX80,MX8#,RX8#..GD,GL,GLX

BLUE,TRIM8#

 1
81240-2210006

GX81,LX80,MX8#,RX8#..GD,GL,GLX

SABLE,TRIM3#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX81,LX80,MX8#,RX8#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-22110

GX81,LX80,MX8#,RX8#..GD,GL,GLX

 1
81260A - LAMP ASSY, MAP
81260-2213006

LX80,MX81,RX8#..GL

LIGHT SABLE,TRIM3#,4#

 1
81260-2213004

LX80,MX81,RX8#..GL

BLUE,TRIM8#

 1
81260A - LAMP ASSY, MAP
81260-2213006

LX80,MX81,RX8#..GL

LIGHT SABLE,TRIM3#,4#

 1
81260-2213004

LX80,MX81,RX8#..GL

BLUE,TRIM8#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

LX80,MX81,RX8#..GL

12V 10W,W(MOON ROOF)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

LX80,MX81,RX8#..GL

12V 10W,W(MOON ROOF)

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

LX80,MX81,RX8#..GL

12V 10W,W(MOON ROOF)

 1
81261 - LENS AND COVER, MAP LAMP
81261-2213004

LX80,MX81,RX8#..GL

LIGHT BLUE,TRIM8#

 1
81261-2213006

LX80,MX81,RX8#..GL

LIGHT SABLE,TRIM3#,4#

 1
81261 - LENS AND COVER, MAP LAMP
81261-2213004

LX80,MX81,RX8#..GL

LIGHT BLUE,TRIM8#

 1
81261-2213006

LX80,MX81,RX8#..GL

LIGHT SABLE,TRIM3#,4#

 1
Common parts
90164-45008
93540-24016

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 81230 81230B 81231 81260 81260B 81330 81330B 81870D 81870E 9015950151 9331515010
Part # Description Qty Price
81260 - LAMP ASSY, GLOVE BOX
81260-32071

GX81,LX80,MX8#,RX8#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GX81,LX80,MX8#,RX8#

12V 1.2W W/O SOCKET

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-30090

GX81,LX80,MX8#,RX8#

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

GX81,LX80,MX8#,RX8#

12V 3.8W

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-22040

GX81,LX80,MX81,RX8#..LHD

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

GX81,LX80,MX8#,RX8#

12V 1.2W W/O SOCKET

 1
Common parts
90159-50151
93315-15010
