RX81L-AEMES (1988)
Toyota Cressida
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2A47004 |
LX80,MX81,RX8#..LHD..GL DARK BLUE,TRIM8# |
1 | ||
| 71071-2A47006 |
LX80,MX81,RX8#..LHD..GL SABLE,TRIM4# |
1 | ||
| 71071-2A47002 |
LX80,MX81,RX8#..LHD..GL NEW MAROON,TRIM3# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2A03006 |
LX80,MX81,RX8#..LHD..GL SABLE,TRIM4# |
1 | ||
| 71072-2A03004 |
LX80,MX81,RX8#..LHD..GL DARK BLUE,TRIM8# |
1 | ||
| 71072-2A03002 |
LX80,MX81,RX8#..LHD..GL NEW MAROON,TRIM3# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A67006 |
LX80,MX8#,RX8#..GL SABLE,TRIM4# |
1 | ||
| 71073-2A67004 |
LX80,MX8#,RX8#..GL DARK BLUE,TRIM8# |
1 | ||
| 71073-2A67002 |
LX80,MX8#,RX8#..GL NEW MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A67006 |
LX80,MX8#,RX8#..GL SABLE,TRIM4# |
1 | ||
| 71073-2A67004 |
LX80,MX8#,RX8#..GL DARK BLUE,TRIM8# |
1 | ||
| 71073-2A67002 |
LX80,MX8#,RX8#..GL NEW MAROON,TRIM3# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2A62004 |
LX80,MX81,RX8#..LHD..GL DARK BLUE,TRIM8# |
1 | ||
| 71410-2A62006 |
LX80,MX81,RX8#..LHD..GL SABLE,TRIM4# |
1 | ||
| 71410-2A62002 |
LX80,MX81,RX8#..LHD..GL NEW MAROON,TRIM3# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2A23004 |
LX80,RX8#..LHD..GL..GEN DARK BLUE,TRIM8# |
1 | ||
| 71420-2A23006 |
LX80,RX8#..LHD..GL..GEN SABLE,TRIM4# |
1 | ||
| 71420-2A23002 |
LX80,RX8#..LHD..GL..GEN NEW MAROON,TRIM3# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2C12006 |
LX80,MX8#,RX8#..GL SABLE,TRIM4# |
1 | ||
| 71430-2C12004 |
LX80,MX8#,RX8#..GL DARK BLUE,TRIM8# |
1 | ||
| 71430-2C12002 |
LX80,MX8#,RX8#..GL NEW MAROON,TRIM3# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2C02006 |
LX80,MX8#,RX8#..GL SABLE,TRIM4# |
1 | ||
| 71440-2C02004 |
LX80,MX8#,RX8#..GL DARK BLUE,TRIM8# |
1 | ||
| 71440-2C02002 |
LX80,MX8#,RX8#..GL NEW MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22410 |
LX80,MX8#,RX8#..GL,XL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22410 |
LX80,MX8#,RX8#..GL,XL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22360 |
LX80,MX8#,RX8#..GL,XL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22360 |
LX80,MX8#,RX8#..GL,XL |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22330 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22160 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22490 |
MX83,RX80..GL;GX81,LX80,MX81,RX81..LHD..(GD,GL,GLX) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22370 |
GX81,MX83..RHD;LX80,MX81,RX8#..GL |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2233004 |
LX80,MX8#,RX8#..GL DARK BLUE,TRIM8# |
1 | ||
| 71705-2233006 |
LX80,MX8#,RX8#..GL SABLE,TRIM4# |
1 | ||
| 71705-2233002 |
LX80,MX8#,RX8#..GL NEW MAROON,TRIM3# |
1 | ||
| 71705B - CAP(FOR FRONT SEAT BACK BOARD) | ||||
| 71788-2202002 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
2 | ||
| 71788-2202006 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX SABLE,TRIM4# |
2 | ||
| 71788-2202004 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX DARK BLUE,TRIM8# |
2 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2233004 |
LX80,MX8#,RX8#..GL DARK BLUE,TRIM8# |
1 | ||
| 71705-2233006 |
LX80,MX8#,RX8#..GL SABLE,TRIM4# |
1 | ||
| 71705-2233002 |
LX80,MX8#,RX8#..GL NEW MAROON,TRIM3# |
1 | ||
| 71706A - CAP, FRONT SEAT BACK BOARD | ||||
| 71788-2202002 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
2 | ||
| 71788-2202004 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX DARK BLUE,TRIM8# |
2 | ||
| 71788-2202006 |
GX81,LX80,MX8#,RX8#..GD,GL,GLX SABLE,TRIM4# |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-2204002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 71831-2204006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 71831-2204004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-2204004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 71831-2204002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 71831-2204006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2269002 |
LX80,MX81,RX8#..GL NEW MAROON,TRIM3# |
2 | ||
| 71910-2269006 |
LX80,MX81,RX8#..GL SABLE,TRIM4# |
2 | ||
| 71910-2269004 |
LX80,MX81,RX8#..GL DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2269002 |
LX80,MX81,RX8#..GL NEW MAROON,TRIM3# |
2 | ||
| 71910-2269006 |
LX80,MX81,RX8#..GL SABLE,TRIM4# |
2 | ||
| 71910-2269004 |
LX80,MX81,RX8#..GL DARK BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2269002 |
LX80,MX81,RX8#..GL NEW MAROON,TRIM3# |
2 | ||
| 71910-2269006 |
LX80,MX81,RX8#..GL SABLE,TRIM4# |
2 | ||
| 71910-2269004 |
LX80,MX81,RX8#..GL DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201004 |
GX81,LX80,MX8#,RX8# W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204006 |
GX81,LX80,MX8#,RX8# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201006 |
GX81,LX80,MX8#,RX8# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201002 |
GX81,LX80,MX8#,RX8# W/O(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX8#,RX8# W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204002 |
GX81,LX80,MX8#,RX8# W(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201004 |
GX81,LX80,MX8#,RX8# W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204006 |
GX81,LX80,MX8#,RX8# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201006 |
GX81,LX80,MX8#,RX8# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201002 |
GX81,LX80,MX8#,RX8# W/O(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX8#,RX8# W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204002 |
GX81,LX80,MX8#,RX8# W(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201004 |
GX81,LX80,MX8#,RX8# W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204006 |
GX81,LX80,MX8#,RX8# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201006 |
GX81,LX80,MX8#,RX8# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201002 |
GX81,LX80,MX8#,RX8# W/O(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX8#,RX8# W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204002 |
GX81,LX80,MX8#,RX8# W(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201004 |
GX81,LX80,MX8#,RX8# W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204006 |
GX81,LX80,MX8#,RX8# W(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201006 |
GX81,LX80,MX8#,RX8# W/O(LOCK),SABLE,TRIM4# |
2 | ||
| 71931-2201002 |
GX81,LX80,MX8#,RX8# W/O(LOCK),NEW MAROON,TRIM3# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX8#,RX8# W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-2204002 |
GX81,LX80,MX8#,RX8# W(LOCK),NEW MAROON,TRIM3# |
2 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90386-12027 | ||||
| 90467-1001601 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 93530-54025 | ||||

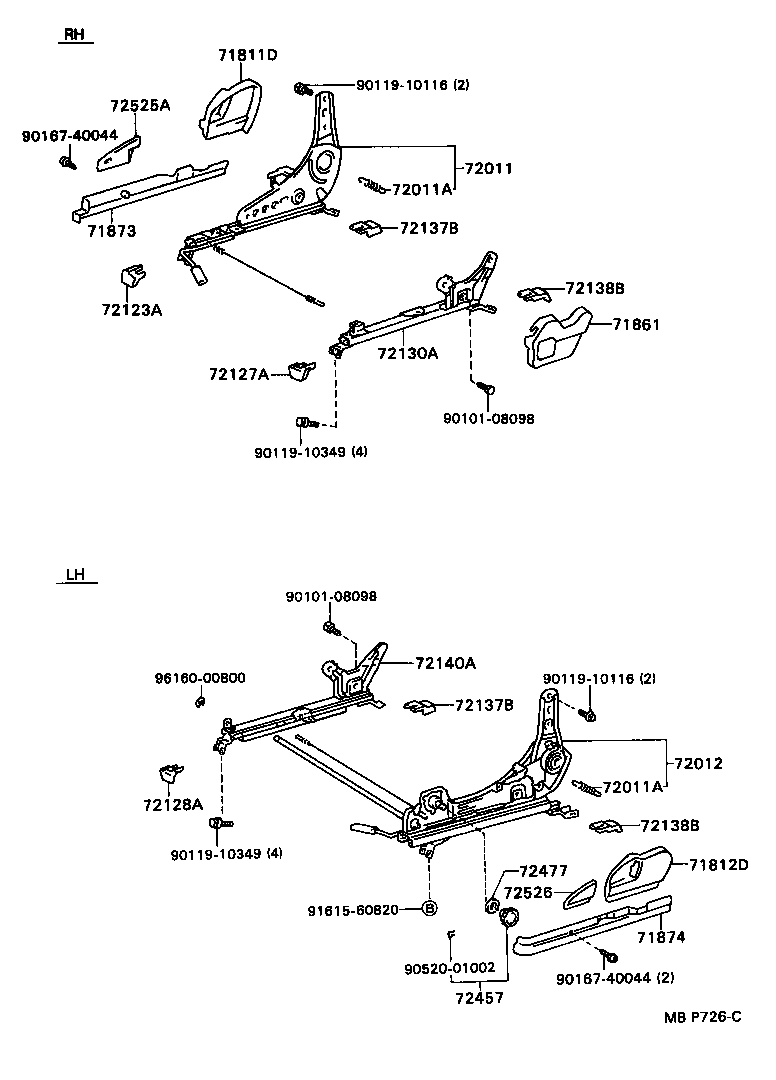

ILLUST NO. 2 OF 2(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2220004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 71811-2220006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 71811-2220002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2215004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 71812-2215006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 71812-2215002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2201004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 71873-2201006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 71873-2201002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2201006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 71874-2201002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 71874-2201004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22110 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22100 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-2206004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 72123-2206006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 72123-2206002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2205004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 72127-2205006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 72127-2205002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-2205006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 72128-2205004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 72128-2205002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-22270 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
2 | ||
| 72138-2205006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
2 | ||
| 72138-2205006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-22260 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202004 |
MX83..GL;GX81,LX80,MX81,RX8# DARK BLUE,TRIM8# |
1 | ||
| 72457-2202002 |
MX83..GL;GX81,LX80,MX81,RX8# NEW MAROON,TRIM3# |
1 | ||
| 72457-2202006 |
MX83..GL;GX81,LX80,MX81,RX8# SABLE,TRIM4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2202002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 72525-2202004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 72525-2202006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2202006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 72526-2202002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 72526-2202004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-10116 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01002 | ||||
| 91615-60820 | ||||
| 96160-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
