RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

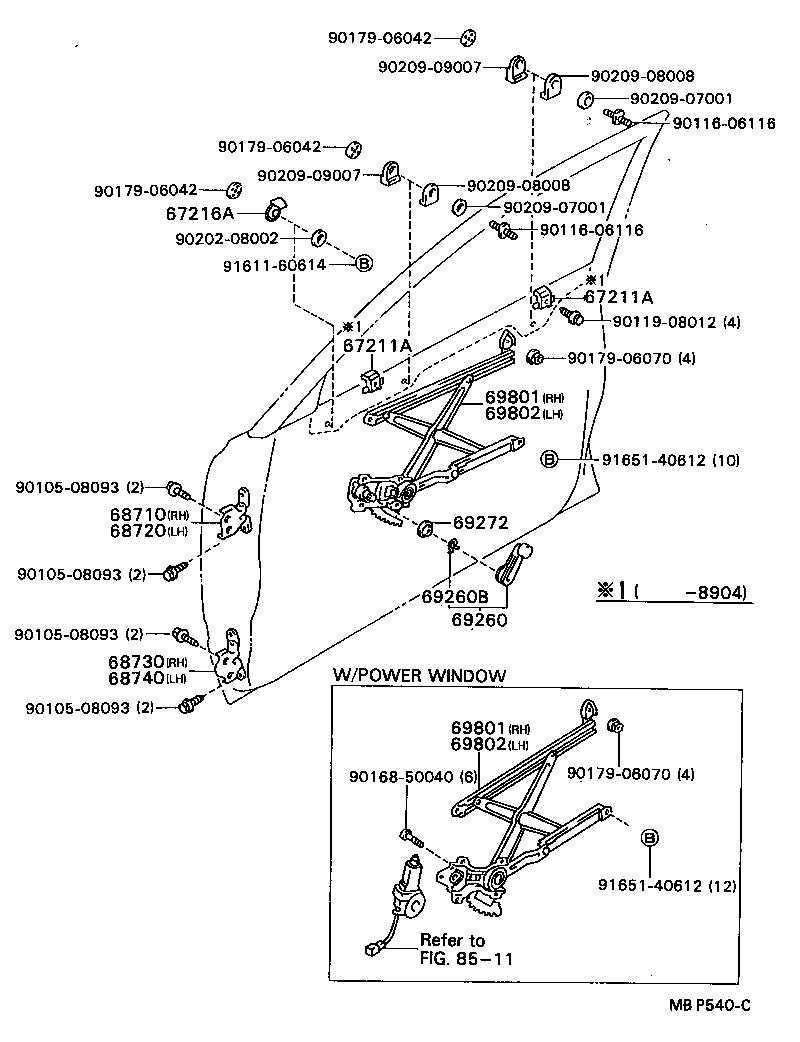

Click highlighted areas on diagram

diagram 67211A 67211A 67216A 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8511 9010508093 9010508093 9010508093 9010508093 9011606116 9011606116 9011908012 9016850040 9017906042 9017906042 9017906042 9017906070 9017906070 9020208002 9020907001 9020907001 9020908008 9020908008 9020909007 9020909007 9161160614 9165140612 9165140612
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22020

GX81,LX80,MX8#,RX8#

 4
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-22020

GX81,LX80,MX8#,RX8#

 4
67216A - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-30050

GX81,LX80,MX8#,RX8#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-22060

GX81,LX80,MX81,RX8#..GEN

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-22050

GX81,LX80,MX81,RX8#..GEN

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-22040

GX81,LX80,MX81,RX8#..GEN

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-22040

GX81,LX80,MX81,RX8#..GEN

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-22110

GX81,MX8#,RX8#..GD,GL,GLX

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-22110

GX81,MX8#,RX8#..GD,GL,GLX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-22110

GX81,MX8#,RX8#..GD,GL,GLX

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-22110

GX81,MX8#,RX8#..GD,GL,GLX

 1
Common parts
90105-08093
90116-06116
90119-08012
90168-50040
90179-06042
90179-06070
90202-08002
90209-07001
90209-08008
90209-09007
91611-60614
91651-40612
Linked diagrams
8511
