RX81L-AEMES (1988)
Toyota Cressida

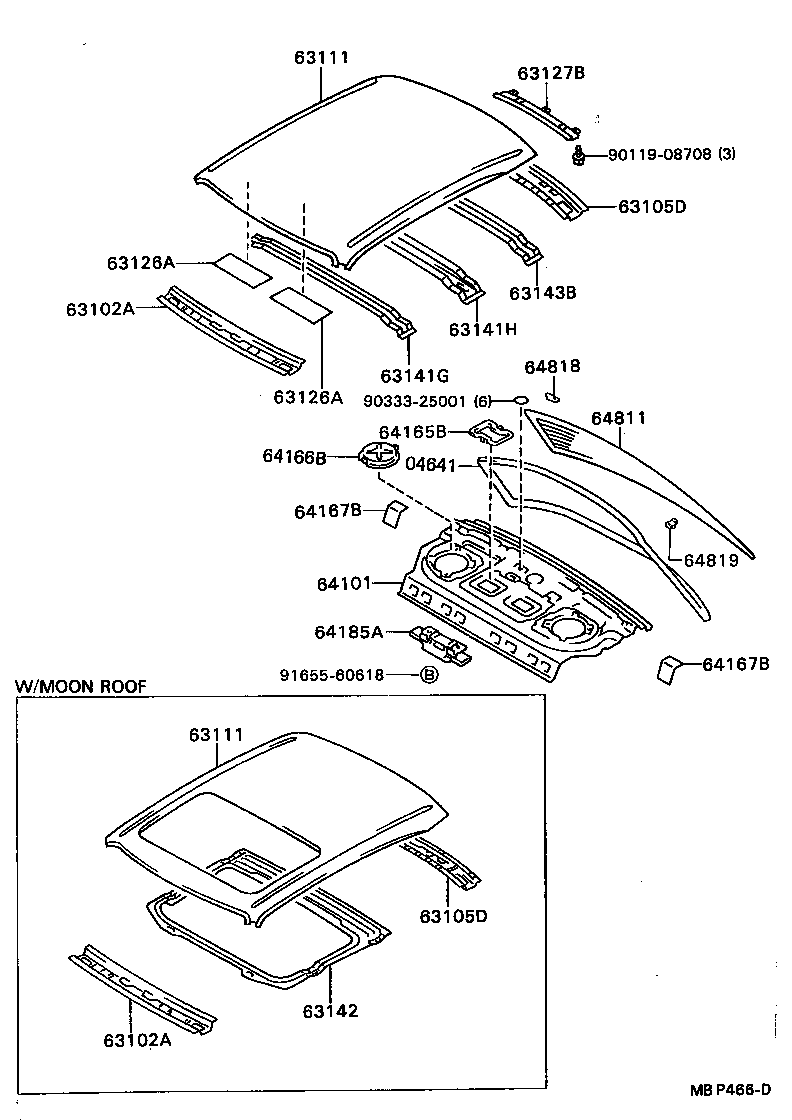

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
GX81..4FC;GX81..LHD;LX80,MX8#,RX8# |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22150 |
LX80,MX8#,RX8#..GL,XL |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-22150 |
LX80,MX8#,RX8#..GL,XL |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-22020 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63105-22020 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22170 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63111-22180 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-22170 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63111-22180 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX W(MOON ROOF) |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32010 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 63127B - DAMPER, BACK WINDOW UPPER FREME | ||||
| 63127-22010 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63127-22010 |
RX80..V;GX81,MX8#,RX81 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63143-22100 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63103-22120 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-22040 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-22100 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-22280 |
GX81,LX80,MX81,RX8# |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-22020 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 64166B - COVER, UPPER BACK PANEL HOLE, NO.2 | ||||
| 64166-22040 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,RX8#..GEN |
2 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-22040 |
LX80,MX81,RX8#..GL,XL |
2 | ||
| 64167B - COVER, UPPER BACK PANEL HOLE, NO.3 | ||||
| 64167-22040 |
LX80,MX81,RX8#..GL,XL |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-22680 |
GX81,LX80,MX81,RX8#..GL,GLX,XL *EHTT,T=3.5 |
1 | ||
| 64811-22690 |
GX81,LX80,MX81,RX8#..GL,GLX *EHT,T=3.5,BRONZE |
1 | ||
| 64811-22700 |
GX81,LX80,MX81,RX8#..GL,GLX,XL *TT,T=3.5 |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-22060 |
GX81,LX80,MX8#,RX8# GREEN |
9 | ||
| 64818-22070 |
GX81,LX80,MX8#,RX8# ORANGE |
9 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-22040 |
GX81,LX80,MX8#,RX8# |
4 | ||
| Common parts | ||||
| 90119-08708 | ||||
| 90333-25001 | ||||
| 91655-60618 | ||||

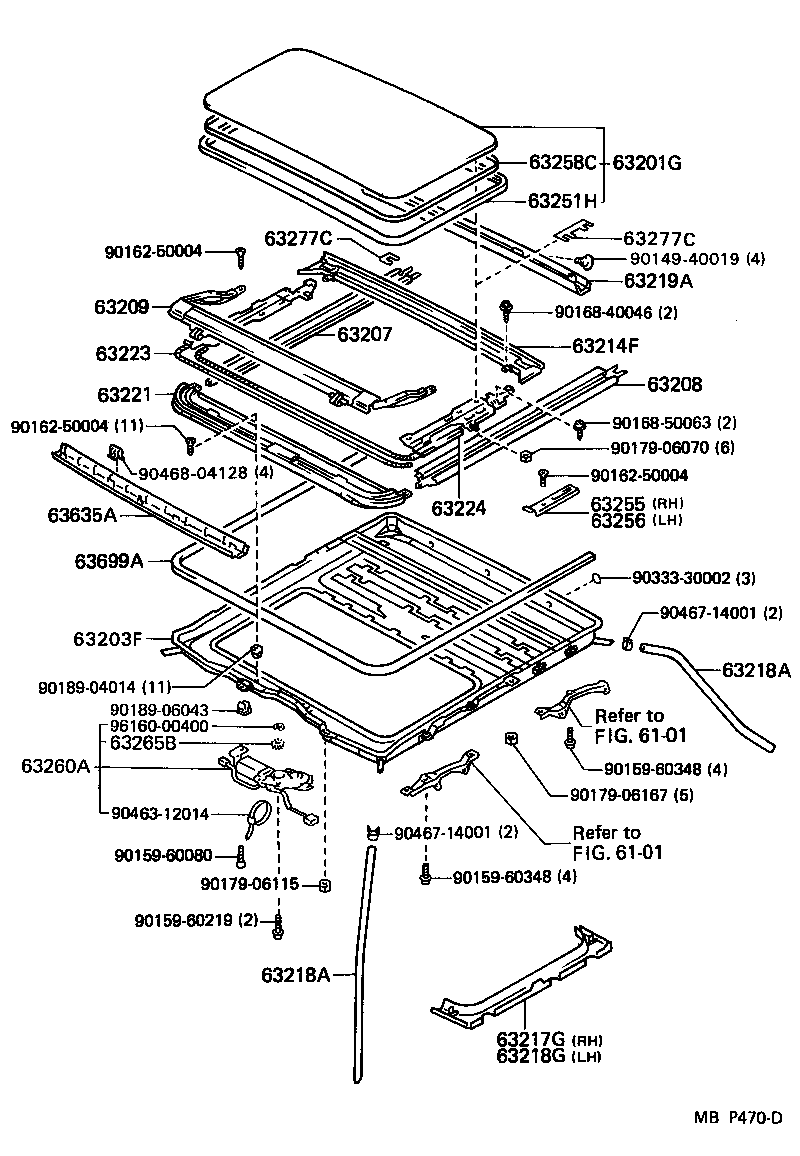

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-22050 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX *LAM,T=4.7,BLUE |
1 | ||
| 63201-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX *LAM,T=4.7,BRONZE |
1 | ||
| 63201-22070 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX *LAM,T=4.7,BLUE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-22050 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-2201002 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
1 | ||
| 63217-2201006 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX SABLE,TRIM4# |
1 | ||
| 63217-2201004 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX DARK BLUE,TRIM8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX FRONT |
2 | ||
| 63249-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX REAR |
2 | ||
| 63249-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX FRONT |
2 | ||
| 63249-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX REAR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX FRONT |
2 | ||
| 63249-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX REAR |
2 | ||
| 63249-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX FRONT |
2 | ||
| 63249-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX REAR |
2 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-2201006 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX SABLE,TRIM4# |
1 | ||
| 63218-2201004 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX DARK BLUE,TRIM8# |
1 | ||
| 63218-2201002 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-2201004 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX DARK BLUE,TRIM8# |
1 | ||
| 63219-2201002 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
1 | ||
| 63219-2201006 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX SABLE,TRIM4# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63251-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-22030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63258C - HOLDER, SLIDING ROOF WEATHERSTRIP, REAR | ||||
| 63258-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
2 | ||
| 63258-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-22020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20050 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=2.0,FRONT,T=2.0 |
1 | ||
| 63277-20030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=1.0,FRONT,T=1.0 |
1 | ||
| 63277-20040 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=2.0,REAR,T=2.0 |
1 | ||
| 63277-20020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=1.0,REAR,T=1.0 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20050 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=2.0,FRONT,T=2.0 |
1 | ||
| 63277-20030 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=1.0,FRONT,T=1.0 |
1 | ||
| 63277-20040 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=2.0,REAR,T=2.0 |
1 | ||
| 63277-20020 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX T=1.0,REAR,T=1.0 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-2201006 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX SABLE,TRIM4# |
1 | ||
| 63635-2201002 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX NEW MAROON,TRIM3# |
1 | ||
| 63635-2201004 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX DARK BLUE,TRIM8# |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-22010 |
MX83..GLX;GX81,LX80,MX81,RX8#..GD,GL,GLX |
1 | ||
| Common parts | ||||
| 90149-40019 | ||||
| 90159-60080 | ||||
| 90159-60219 | ||||
| 90159-60348 | ||||
| 90162-50004 | ||||
| 90168-40046 | ||||
| 90168-50063 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90179-06167 | ||||
| 90189-04014 | ||||
| 90189-06043 | ||||
| 90333-30002 | ||||
| 90463-12014 | ||||
| 90467-14001 | ||||
| 90468-04128 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 6101 | ||||
