RX81L-AEMES (1988)
Toyota Cressida
(8808- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-22170 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-22220 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-22120 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-22120 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-22070 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-22050 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-22060 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-22060 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-22080 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-2225006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55401-2225002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55401-2225004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-22110 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-2210004 |
LX80,MX81,RX8#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55473-2210006 |
LX80,MX81,RX8#..LHD..(GL,XL) SABLE,TRIM4# |
1 | ||
| 55473-2210002 |
LX80,MX81,RX8#..LHD..(GL,XL) NEW MAROON,TRIM3# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-22190 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-22190 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-2226004 |
LX80,MX81,RX8#..LHD..(GL,XL) DARK BLUE,TRIM8# |
1 | ||
| 55432-2226006 |
LX80,MX81,RX8#..LHD..(GL,XL) SABLE,TRIM4# |
1 | ||
| 55432-2226002 |
LX80,MX81,RX8#..LHD..(GL,XL) NEW MAROON,TRIM3# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55045-2207004 |
RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL) W(COOL BOX),DARK BLUE,TRIM8# |
1 | ||
| 55433-2212006 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) SABLE,TRIM4# |
1 | ||
| 55045-2207002 |
RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL) W(COOL BOX),NEW MAROON,TRIM3# |
1 | ||
| 55433-2212004 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) DARK BLUE,TRIM8# |
1 | ||
| 55045-2207006 |
RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL) W(COOL BOX),SABLE,TRIM4# |
1 | ||
| 55433-2212002 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) NEW MAROON,TRIM3# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55045-2207004 |
RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL) W(COOL BOX),DARK BLUE,TRIM8# |
1 | ||
| 55433-2212006 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) SABLE,TRIM4# |
1 | ||
| 55045-2207002 |
RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL) W(COOL BOX),NEW MAROON,TRIM3# |
1 | ||
| 55433-2212004 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) DARK BLUE,TRIM8# |
1 | ||
| 55045-2207006 |
RX80..V;RX80..LHD..GL..GEN;GX81,MX81,RX81..LHD..(GL,GLX,XL) W(COOL BOX),SABLE,TRIM4# |
1 | ||
| 55433-2212002 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) NEW MAROON,TRIM3# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-2210004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55434-2210006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55434-2210002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55439A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.3 | ||||
| 55439-22050 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2213004 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) DARK BLUE,TRIM8# |
1 | ||
| 55550-2213006 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) SABLE,TRIM4# |
1 | ||
| 55550-2213002 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) NEW MAROON,TRIM3# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
GX81,LX80,MX81,RX8# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
GX81,LX80,MX81,RX8#..GEN |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-2202006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 55524-2202004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 55524-2202002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 55537B - COVER, REAR DEFOGGER SWITCH HOLE | ||||
| 55537-22040 |
GX81,LX80,MX81,RX8#..LHD..(GL,GLX,XL) |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-22060 |
GX81,MX8#,RX8# |
1 | ||
| 55544B - COVER, INSTRUMENT PANEL LOWER REGISTER HOLE | ||||
| 55544-2203002 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,MX83,RX8#..ARL,GEN NEW MAROON,TRIM3# |
1 | ||
| 55544-2203006 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,MX83,RX8#..ARL,GEN SABLE,TRIM4# |
1 | ||
| 55544-2203004 |
RX80..XL..V;MX81,RX81..GLX,XL;GX81,LX80,MX83,RX8#..ARL,GEN DARK BLUE,TRIM8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22090 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22090 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-22010 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-22010 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-22030 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2202006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 55565-2202004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 55565-2202002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-2203006 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 55569-2203002 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 55569-2203004 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-22120 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-2208006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55607-2208002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55607-2208004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-22130 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2213004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55660-2213006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55660-2213002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-22150 |
GX81,LX80,MX81,RX8#..LHD |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-1403024 |
GX81,LX80,MX8#,RX8# DARK BLUE,TRIM8# |
1 | ||
| 55680-1403022 |
GX81,LX80,MX8#,RX8# NEW MAROON,TRIM3# |
1 | ||
| 55680-1403016 |
GX81,LX80,MX8#,RX8# SABLE,TRIM4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2207004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55961-2207006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55961-2207002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2207004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55962-2207006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55962-2207002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-2202006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55981-2202002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55981-2202004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-2202002 |
GX81,LX80,MX81,RX8#..LHD NEW MAROON,TRIM3# |
1 | ||
| 55982-2202006 |
GX81,LX80,MX81,RX8#..LHD SABLE,TRIM4# |
1 | ||
| 55982-2202004 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| 55982-2202104 |
GX81,LX80,MX81,RX8#..LHD DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-60363 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14013 | ||||
| 90468-04087 | ||||
| 90468-04152 | ||||
| 91655-40618 | ||||
| 91656-60820 | ||||
| 91665-40618 | ||||
| 93567-15012 | ||||
| 93567-15016 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||

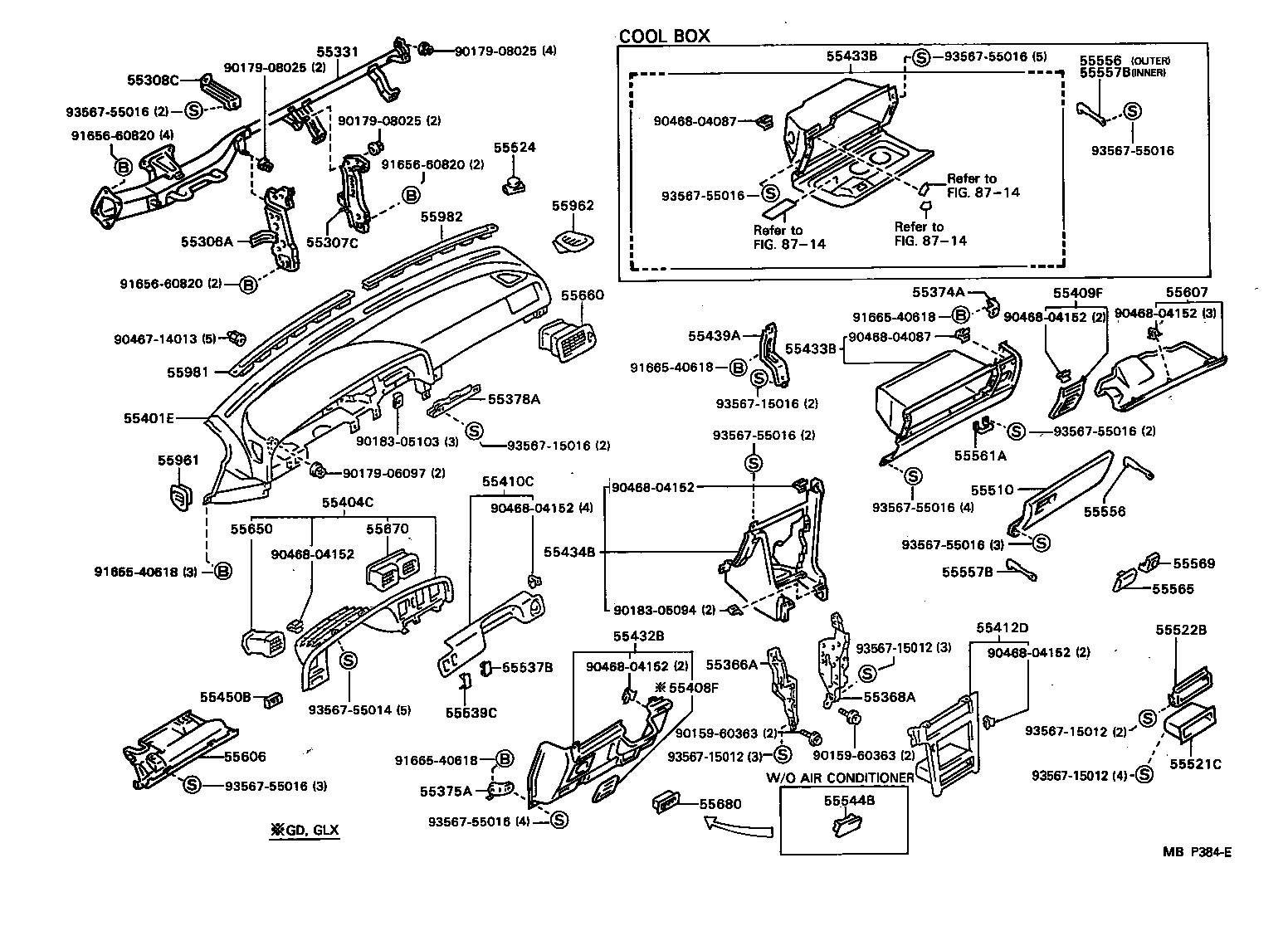

| Linked diagrams | ||||
| 8714 | ||||
