RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

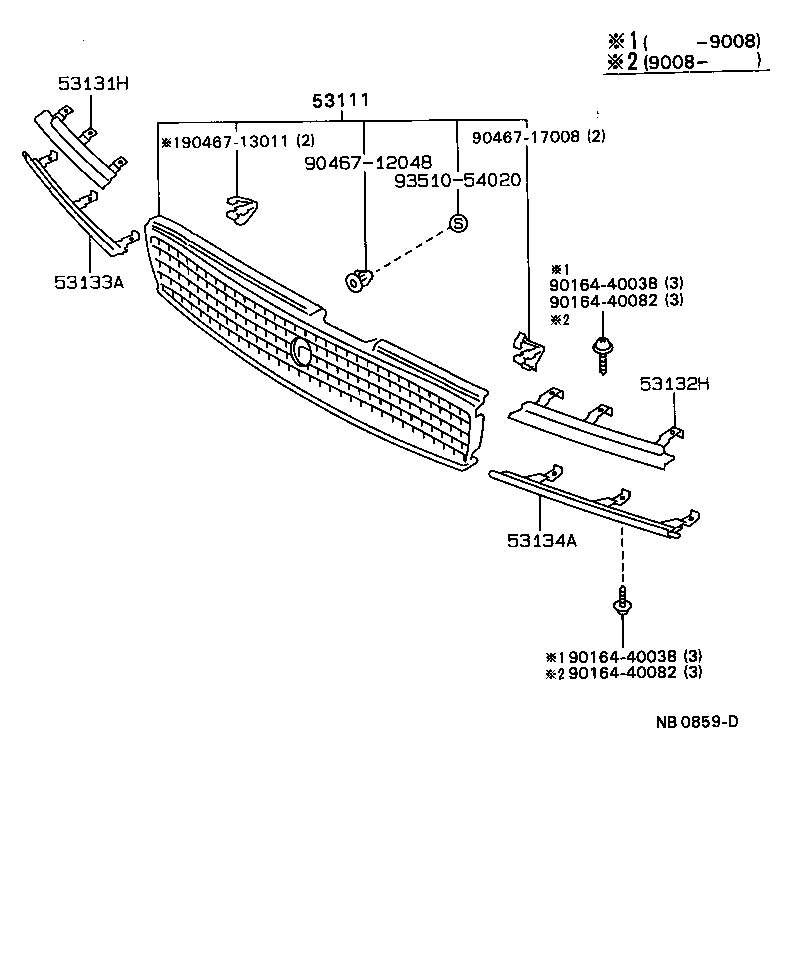

Click highlighted areas on diagram

diagram 53111 53131H 53132H 53133A 53134A 9016440038 9016440038 9016440082 9016440082 9046712048 9046713011 9046717008 9351054020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-22180

GX81,LX80,MX8#,RX8#

 1
53131H - DOOR, HEADLAMP, UPPER RH
53131-22320

GX81,LX80,MX8#,RX8#

 1
53132H - DOOR, HEADLAMP, UPPER LH
53132-22300

GX81,LX80,MX8#,RX8#

 1
53133A - DOOR, HEADLAMP, LOWER RH
53133-22150

GX81,LX80,MX8#,RX8#

 1
53134A - DOOR, HEADLAMP, LOWER LH
53134-22110

GX81,LX80,MX8#,RX8#

 1
Common parts
90164-40038
90164-40082
90467-12048
90467-13011
90467-17008
93510-54020
