RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

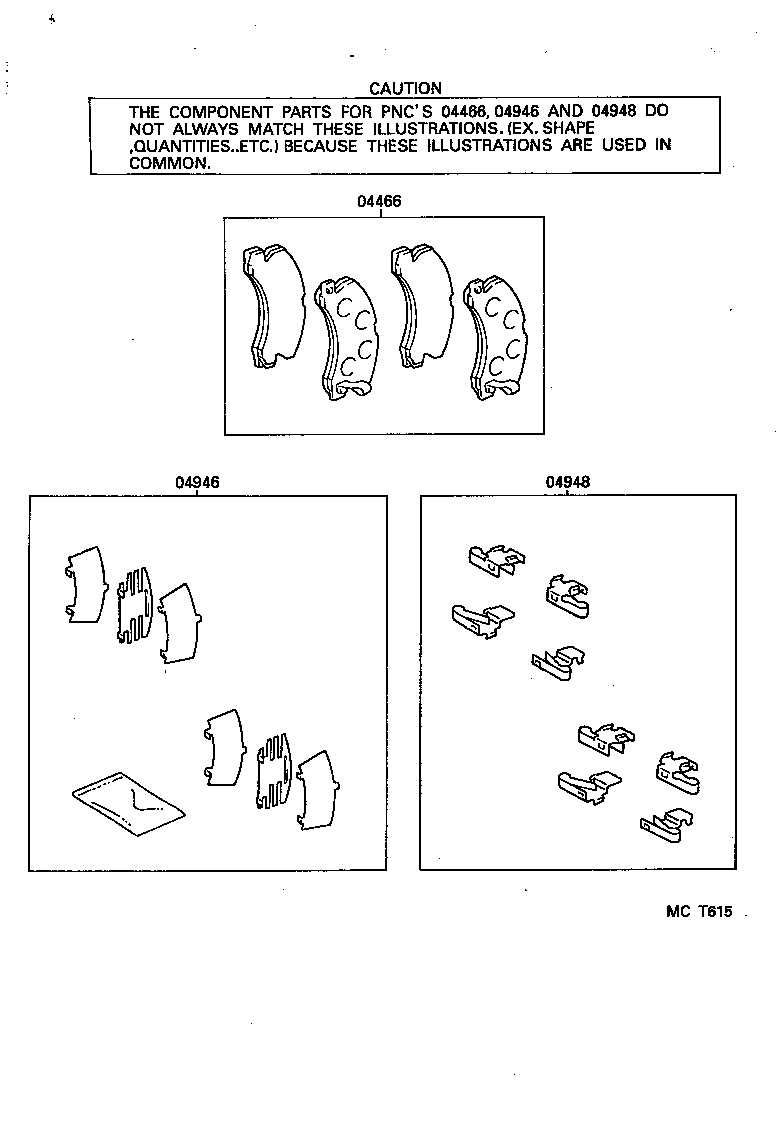

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-22030

GX81,MX8#,RX81

MARK SUMITOMO M2231

 1
04466-22040

GX81,MX81,RX81

MARK AK PA511

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-22020

GX81,MX8#,RX81

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-22030

GX81,MX81,RX81

 1
04948-22010

GX81,MX8#,RX81

 1

ILLUST NO. 1 OF 2(8808- )GX81,MX8#,RX81

Click highlighted areas on diagram

diagram 04479A 04492 31478C 47547C 47716A 47716A 47721C 47721D 47721D 47722A 47730B 47731B 47744C 47744C 47745B 47745B 47750A 47769A 47771A 47771A 47779A 47810A
Part # Description Qty Price
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-22040

GX81,MX8#,RX81

 1
04492 - PAD KIT, DISC BRAKE, REAR
04492-22100

GX81,MX8#,RX81

 1
04492-22120

GX81,MX81,RX81

 1
04492-22101

GX81,MX8#,RX81

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

GX81,MX8#,RX81

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-35020

GX81,MX8#,RX81

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-22020

GX81,MX8#,RX81

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-22020

GX81,MX8#,RX81

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-22110

GX81,MX8#,RX81

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09016

GX81,MX8#,RX81

*9-1.25PX84.7-20

 2
90119-09015

GX81,MX8#,RX81

*9-1.25PX55.7-20

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90119-09016

GX81,MX8#,RX81

*9-1.25PX84.7-20

 2
90119-09015

GX81,MX8#,RX81

*9-1.25PX55.7-20

 2
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47721-22110

GX81,MX8#,RX81

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-22210

GX81,MX8#,RX81

 1
47731B - PISTON, REAR DISC BRAKE
47731-22030

GX81,MX8#,RX81

 2
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-22100

GX81,MX8#,RX81

 4
47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47744-22100

GX81,MX8#,RX81

 4
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-22060

GX81,MX8#,RX81

 4
47745B - SHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745-22060

GX81,MX8#,RX81

 4
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-22210

GX81,MX8#,RX81

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-22020

GX81,MX8#,RX81

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-22010

GX81,MX8#,RX81

 2
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-10206

GX81,MX8#,RX81

 4
