RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9111)RX8#..5F

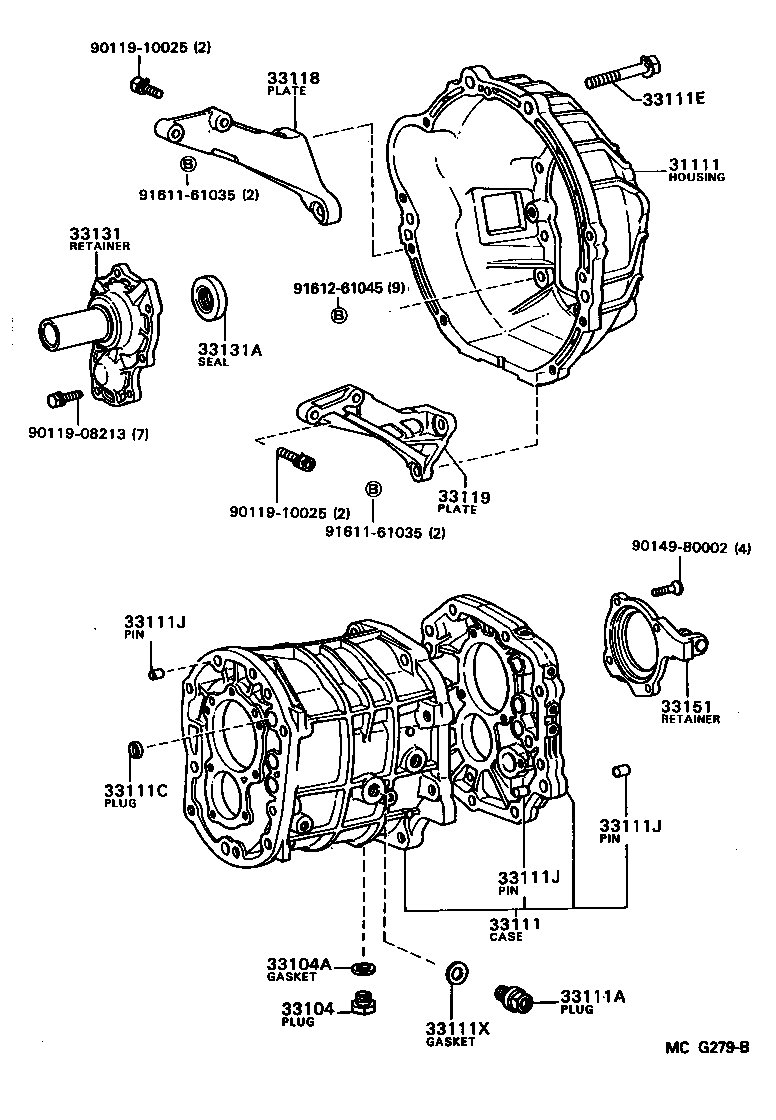

Click highlighted areas on diagram

W55

diagram 31111 33104 33104A 33111 33111A 33111C 33111E 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33151 9011908213 9011910025 9011910025 9014980002 9161161035 9161161035 9161261045
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20171

RX8#..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GX81,LX80,MX81,RX8#..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GX81,LX80,MX81,RX8#..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22031

GX81,LX80,MX81,RX8#..5F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GX81,LX80,MX81,RX8#..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GX81,LX80,MX81,RX8#..5F

OD=14

 3
33111E - BOLT(FOR TRANSMISSION CASE & ENGINE SETTING)
91619-61250

GX81,LX80,RX8#..5F

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX81,LX80,MX81,RX8#..5F

L=16,OD=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX81,LX80,MX81,RX8#..5F

L=16,OD=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX81,LX80,MX81,RX8#..5F

L=16,OD=12

 6
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

GX81,LX80,MX81,RX8#..5F

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22030

RX8#..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22022

RX8#..5F

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22021

GX81,LX80,MX81,RX8#..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

GX81,LX80,MX81,RX8#..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

GX81,LX80,MX81,RX8#..5F

 1
Common parts
90119-08213
90119-10025
90149-80002
91611-61035
91612-61045
