RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5F

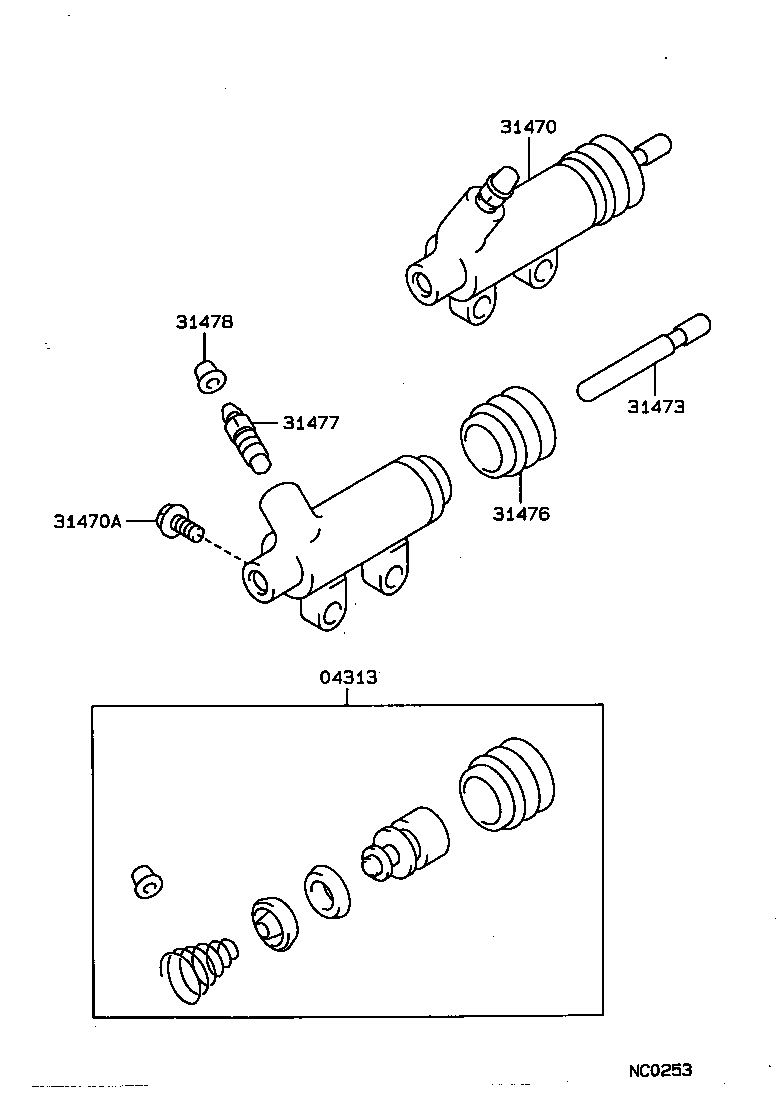

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-12030

GX81,LX80,MX81,RX8#..5F

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-20190

RX8#..5F

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

GX81,LX80,MX81,RX8#..5F

*8-1.25PX25-25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-22010

GX81,LX80,MX81,RX8#..5F

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

GX81,LX80,MX81,RX8#..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

GX81,LX80,MX81,RX8#..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

GX81,LX80,MX81,RX8#..5F

 1
