RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R

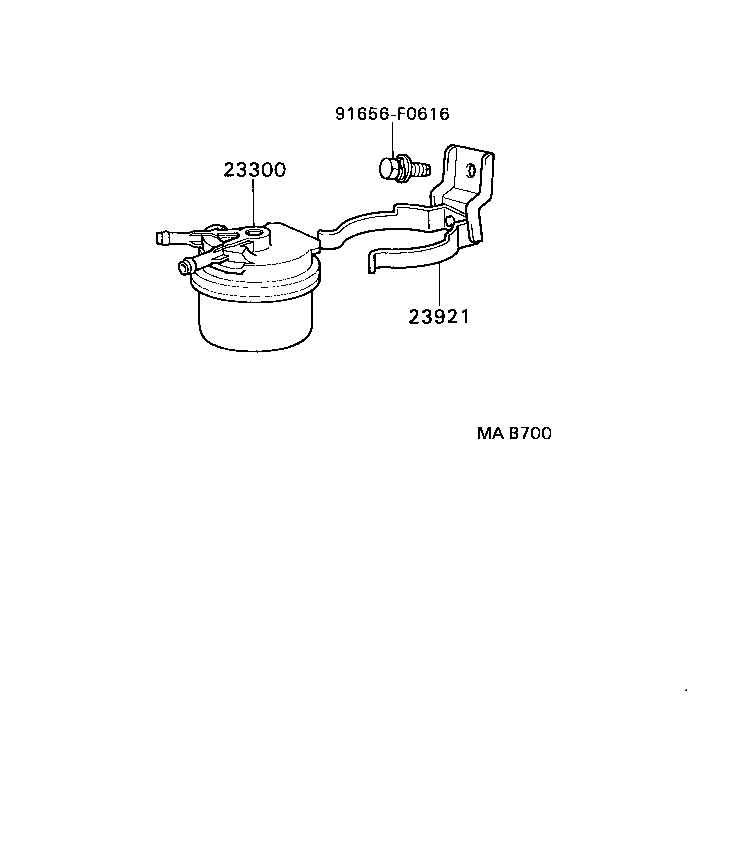

Click highlighted areas on diagram

diagram 23300 23921 91656F0616
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-34100

22R..RX8#

 1
23921 - SUPPORT, FUEL FILTER
23921-38020

22R..RX8#

 1
Common parts
91656-F0616
