RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R

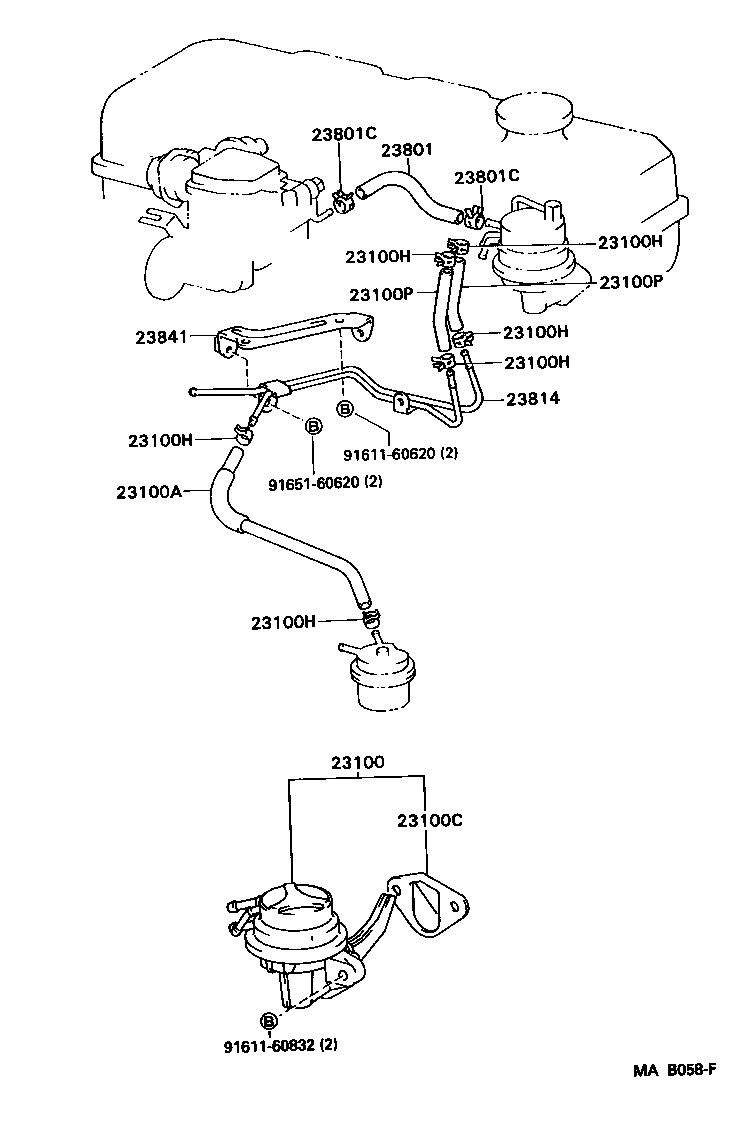

Click highlighted areas on diagram

diagram 23100 23100A 23100C 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23801 23801C 23801C 23814 23841 9161160620 9161160832 9165160620
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39336

22R..RX8#

 1
23100A - HOSE, FUEL
90447-12082

22R..RX8#

 1
23100C - INSULATOR, FUEL PUMP
90923-06010

22R..RX8#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-41100

22R..RX8#

FUEL PUMP PIPE

 4
96132-41100

22R..RX8#

FILTER TO PIPE

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

22R..RX8#

FUEL PUMP PIPE

 4
96132-41100

22R..RX8#

FILTER TO PIPE

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

22R..RX8#

FUEL PUMP PIPE

 4
96132-41100

22R..RX8#

FILTER TO PIPE

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

22R..RX8#

FILTER TO PIPE

 2
96132-41100

22R..RX8#

FUEL PUMP PIPE

 4
23100H - CLIP(FOR FUEL HOSE)
96132-41100

22R..RX8#

FUEL PUMP PIPE

 4
96132-41100

22R..RX8#

FILTER TO PIPE

 2
23100H - CLIP(FOR FUEL HOSE)
96132-41100

22R..RX8#

FUEL PUMP PIPE

 4
96132-41100

22R..RX8#

FILTER TO PIPE

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-06020

22R..RX8#

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95333-06020

22R..RX8#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95333-06020

22R..RX8#

*H,L=200

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-41100

22R..RX8#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-41100

22R..RX8#

 2
23814 - PIPE, FUEL DELIVERY
23814-37040

22R..RX8#

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-35050

22R..RX8#

 1
Common parts
91611-60620
91611-60832
91651-60620
