RX81L-AEMES (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22R

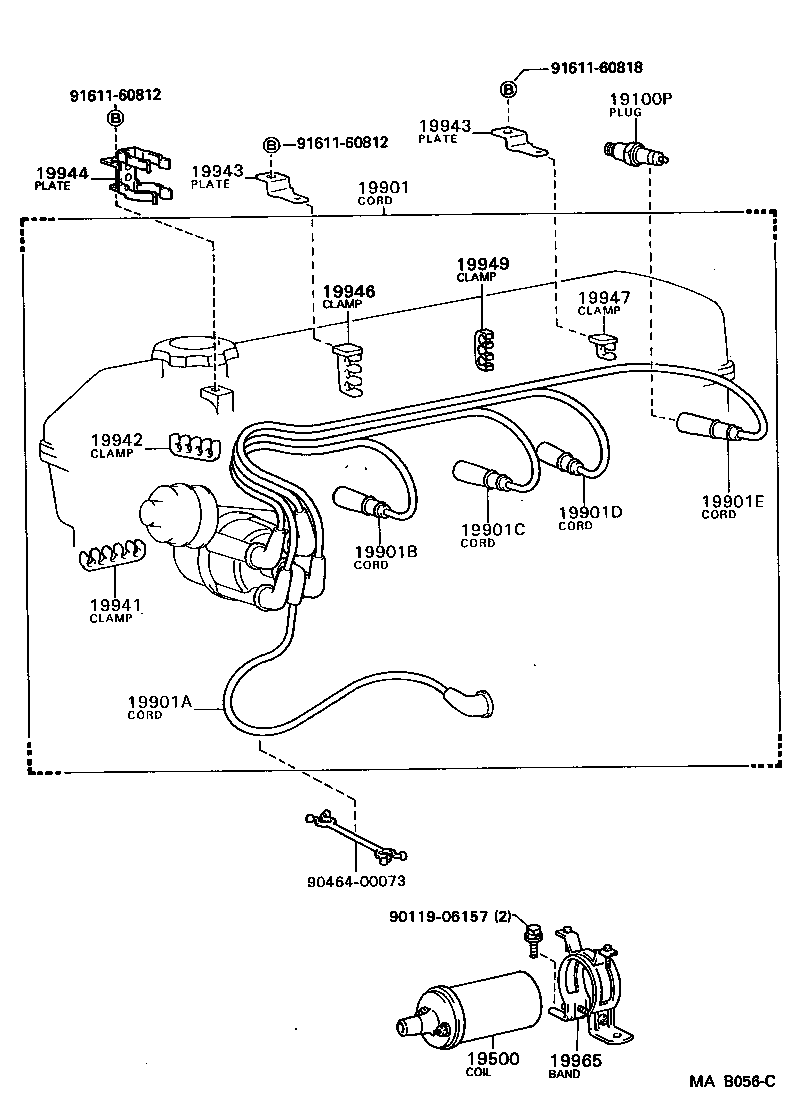

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19947 19949 19965 9011906157 9046400073 9161160812 9161160812 9161160818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22R..RX8#

W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02117

22R..RX8#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21428

22R..RX80;22R..RX81..GEN

 1
19901A - CORD, COIL RESISTIVE
90919-13305

22R..RX8#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

22R..RX8#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

22R..RX8#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

22R..RX8#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

22R..RX8#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22R..RX8#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22R..RX8#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22R..RX8#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22R..RX8#

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RX8#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22R..RX8#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22R..RX8#

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22R..RX8#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03079

22R..RX8#

 1
Common parts
90119-06157
90464-00073
91611-60812
91611-60818
