RX81L-AEMES (1988)
Toyota Cressida

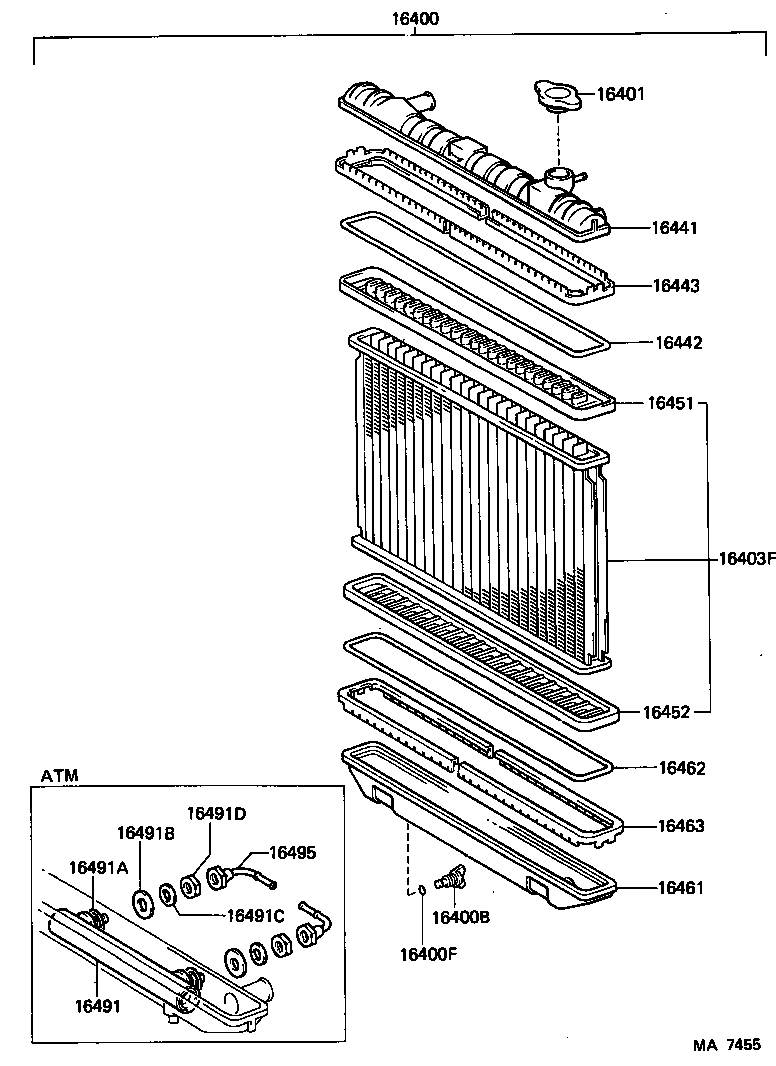

ILLUST NO. 3 OF 3(8808- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-35450 |
22R..RX8#..LHD..5F..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16400-35450 |
22R..RX8#..LHD..5F..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16400-35450 |
22R..RX8#..LHD..5F..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16400-35450 |
22R..RX8#..LHD..5F..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16400-35470 |
22R..RX8#..5F..GEN |
1 | ||
| 16400-35470 |
22R..RX8#..5F..GEN |
1 | ||
| 16400-35470 |
22R..RX8#..5F..GEN |
1 | ||
| 16400-35470 |
22R..RX8#..5F..GEN |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
22R..RX8# |
1 | ||
| 23322-54010 |
22R..RX8# |
1 | ||
| 23322-54010 |
22R..RX8# |
1 | ||
| 23322-54010 |
22R..RX8# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
22R..RX8# |
1 | ||
| 96711-19007 |
22R..RX8# |
1 | ||
| 96711-19007 |
22R..RX8# |
1 | ||
| 96711-19007 |
22R..RX8# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
22R..RX8# |
1 | ||
| 16401-63010 |
22R..RX8# |
1 | ||
| 16401-63010 |
22R..RX8# |
1 | ||
| 16401-63010 |
22R..RX8# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-54650 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16403-54650 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16403-54650 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16403-54650 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16403-35470 |
22R..RX8#..GEN |
1 | ||
| 16403-35470 |
22R..RX8#..GEN |
1 | ||
| 16403-35470 |
22R..RX8#..GEN |
1 | ||
| 16403-35470 |
22R..RX8#..GEN |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-35450 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16441-35450 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16441-35450 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16441-35450 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16441-35480 |
22R..RX8#..GEN |
1 | ||
| 16441-35480 |
22R..RX8#..GEN |
1 | ||
| 16441-35480 |
22R..RX8#..GEN |
1 | ||
| 16441-35480 |
22R..RX8#..GEN |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16462-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16462-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16462-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16442-70350 |
22R..RX8#..GEN |
1 | ||
| 16442-70350 |
22R..RX8#..GEN |
1 | ||
| 16442-70350 |
22R..RX8#..GEN |
1 | ||
| 16442-70350 |
22R..RX8#..GEN |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-70350 |
22R..RX8#..GEN |
2 | ||
| 16443-70350 |
22R..RX8#..GEN |
2 | ||
| 16443-70350 |
22R..RX8#..GEN |
2 | ||
| 16443-70350 |
22R..RX8#..GEN |
2 | ||
| 16463-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
2 | ||
| 16463-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
2 | ||
| 16463-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
2 | ||
| 16463-70350 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16451-70350 |
22R..RX8#..GEN |
1 | ||
| 16451-70350 |
22R..RX8#..GEN |
1 | ||
| 16451-70350 |
22R..RX8#..GEN |
1 | ||
| 16451-70350 |
22R..RX8#..GEN |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70320 |
22R..RX8#..LHD..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16452-70350 |
22R..RX8#..GEN |
1 | ||
| 16452-70350 |
22R..RX8#..GEN |
1 | ||
| 16452-70350 |
22R..RX8#..GEN |
1 | ||
| 16452-70350 |
22R..RX8#..GEN |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-54650 |
22R..RX8#..5F |
1 | ||
| 16461-54650 |
22R..RX8#..5F |
1 | ||
| 16461-54650 |
22R..RX8#..5F |
1 | ||
| 16461-54650 |
22R..RX8#..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-70350 |
22R..RX8# |
1 | ||
| 16462-70350 |
22R..RX8# |
1 | ||
| 16462-70350 |
22R..RX8# |
1 | ||
| 16462-70350 |
22R..RX8# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-70350 |
22R..RX8# |
2 | ||
| 16463-70350 |
22R..RX8# |
2 | ||
| 16463-70350 |
22R..RX8# |
2 | ||
| 16463-70350 |
22R..RX8# |
2 | ||

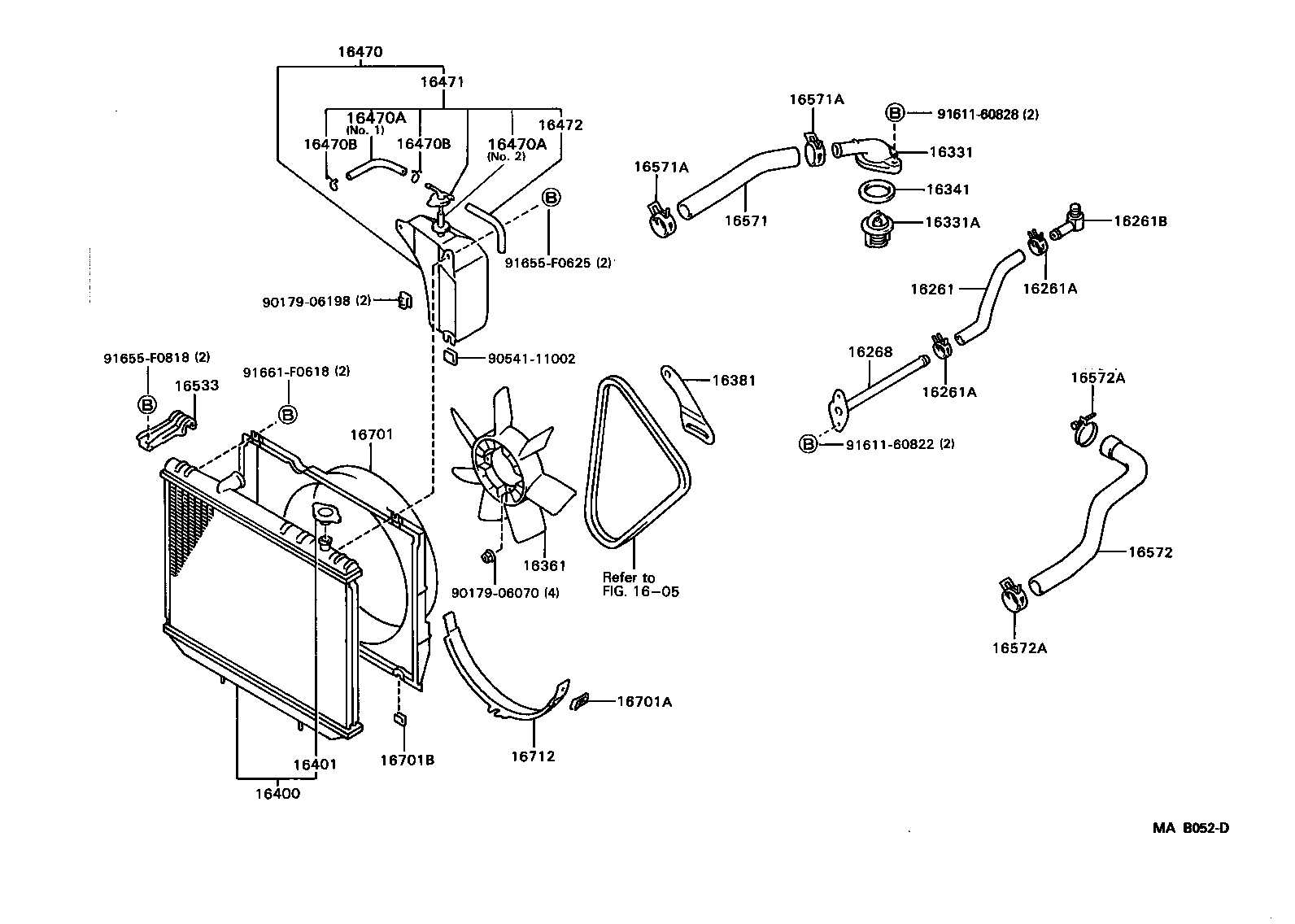

ILLUST NO. 1 OF 3(8808- )22R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-35040 |
22R..RX8# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R..RX8# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
22R..RX8# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90407-53007 |
22R..RX8# |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-35010 |
22R..RX8# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-35050 |
22R..RX8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03078 |
22R..RX8# *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
22R..RX8# |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
22R..RX8# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-35010 |
22R..RX8# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-35450 |
22R..RX8#..LHD..5F..GEN HEAT PROOFING PACKAGE |
1 | ||
| 16400-35470 |
22R..RX8#..5F..GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
22R..RX8# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-35060 |
22R..RX8# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
22R..RX8# L=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
22R..RX8# L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R..RX8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
22R..RX8# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-35020 |
22R..RX8# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-95A01 |
22R..RX8# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70020 |
22R..RX8# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-35150 |
22R..RX8# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
22R..RX8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
22R..RX8# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-35110 |
22R..RX8# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
22R..RX8# PUMP SIDE |
1 | ||
| 90467-38001 |
22R..RX8# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
22R..RX8# PUMP SIDE |
1 | ||
| 90467-38001 |
22R..RX8# RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-35070 |
22R..RX8# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
22R..RX8# |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
22R..RX8# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-34070 |
22R..RX8# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-06198 | ||||
| 90541-11002 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91655-F0625 | ||||
| 91655-F0818 | ||||
| 91661-F0618 | ||||
| Linked diagrams | ||||
| 1605 | ||||
