RX80R-AEPES (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )RX80..RHD

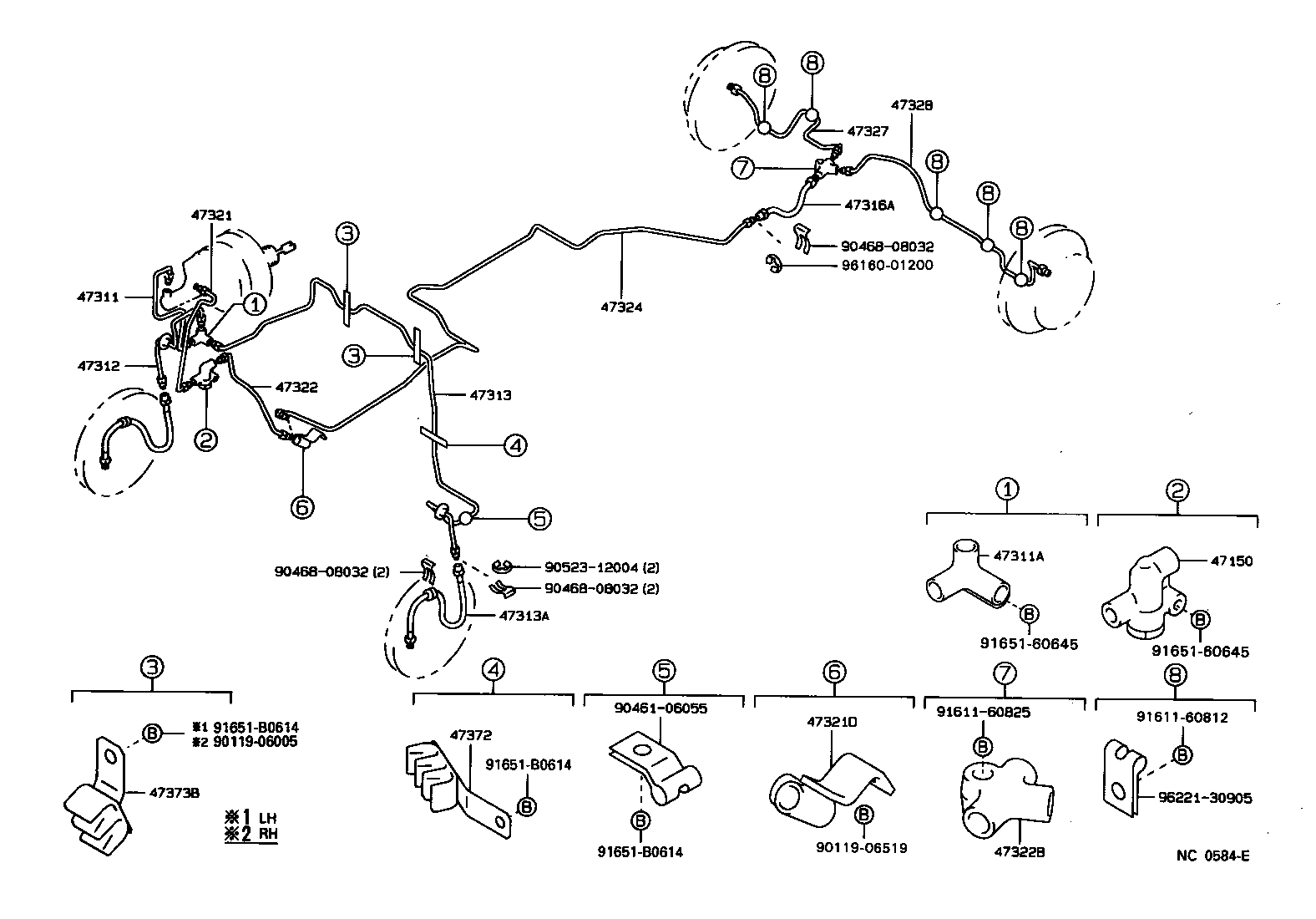

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-22050 |
GX81,LX80,MX81,RX8# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-22400 |
GX81,RX80..RHD |
1 | ||
| 47311-22490 |
RX80..RHD |
1 | ||
| 47311-22401 |
GX81,RX80..RHD |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10227 |
GX81,RX80..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-22180 |
GX81,MX83,RX80..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-22310 |
RX80..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02570 |
GX81,LX80,MX8#,RX8#..ARL,GEN |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32805 |
LX80,RX80..GEN |
1 | ||
| 90947-02619 |
LX80,RX80..GEN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-22200 |
GX81,RX80..RHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10119 |
RX8# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-22220 |
RX80..RHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
LX80,RX80 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-22220 |
RX80 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-22110 |
LX80,RX80 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-22110 |
LX80,RX80 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-22130 |
GX81,RX80..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22200 |
RX80..RHD |
2 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06519 | ||||
| 90461-06055 | ||||
| 90468-08032 | ||||
| 90523-12004 | ||||
| 91611-60812 | ||||
| 91611-60825 | ||||
| 91651-60645 | ||||
| 91651-B0614 | ||||
| 96160-01200 | ||||
| 96221-30905 | ||||
