RX80L-AEPESV (1988)

Toyota Cressida

Production Aug 1988 - Aug 1990
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)GX81,LX80,MX81,RX8#..4FC ; (9302-)4FC

Click highlighted areas on diagram

A42D,A42DL,A43D,A43DL

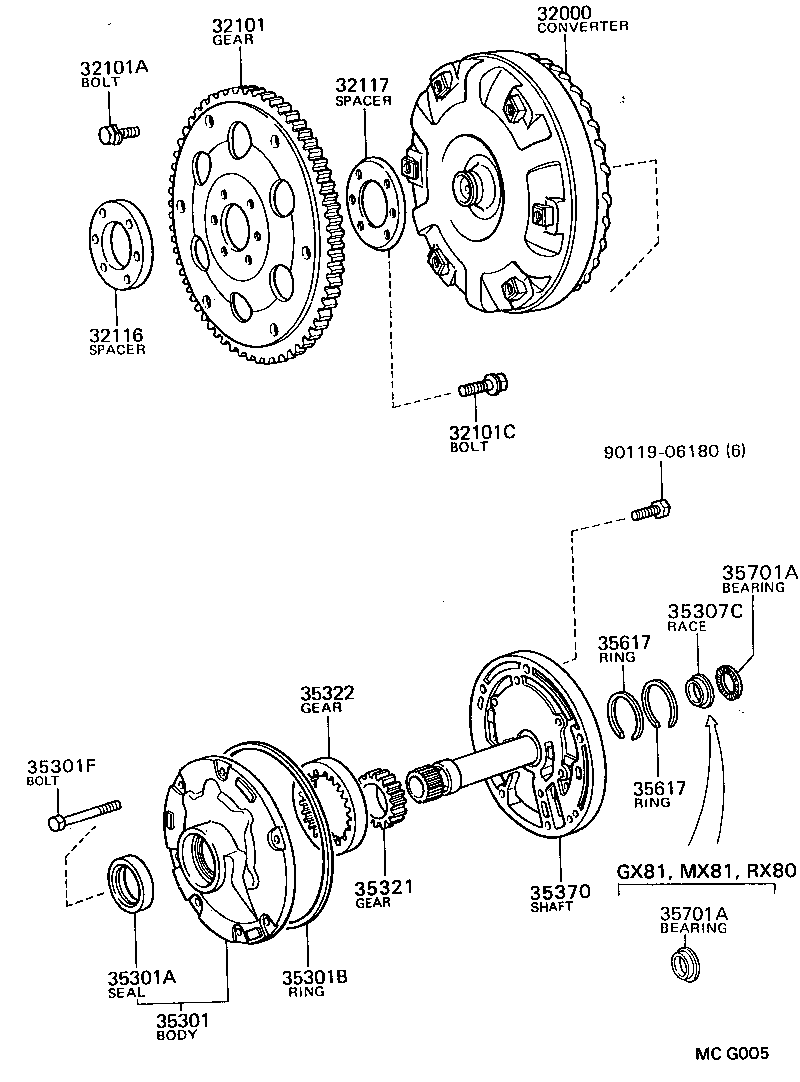

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 35701A 35701A 9011906180
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-14101

RX8#..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-20050

RX8#..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

MX81,RX8#..4FC

*8-1.25PX12-8

 5
90109-08113

MX81,RX8#..4FC

*8-1.25PX12-8.4

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90913-01011

RX8#..4FC

*17-1.25PX26-18

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-20011

RX8#..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20021

RX8#..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

LX80,RX8#..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

GX81,LX80,MX81,RX8#..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

GX81,LX80,MX81,RX8#..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

GX81,LX80,MX81,RX8#..4FC

 7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22010

LX80,RX8#..4FC

T=15.286-15.235

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

LX80,RX8#..4FC

T=15.286-15.235

 1
35370 - SHAFT ASSY, STATOR
35370-30023

RX8#..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

GX81,LX80,MX81,RX8#..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

GX81,LX80,MX81,RX8#..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

GX81,MX81,RX8#..4FC

 1
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

GX81,MX81,RX8#..4FC

 1
Common parts
90119-06180
