RX72L-XTMESV (1986)
Toyota Cressida

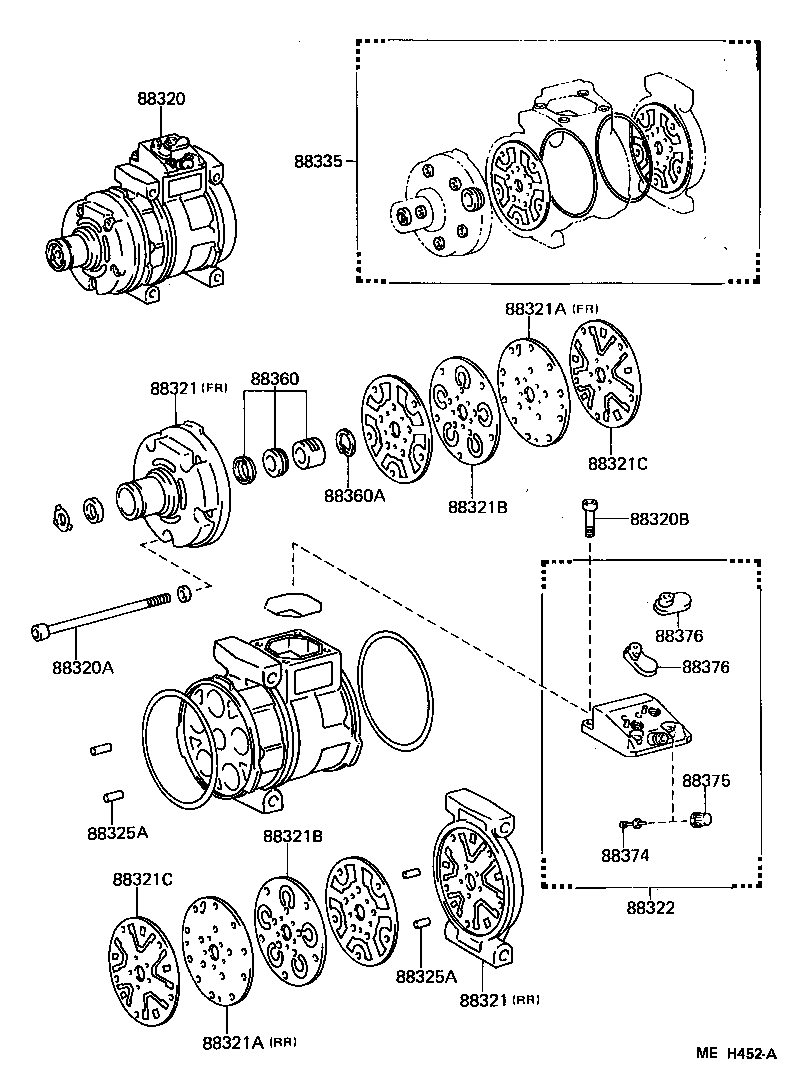

(8608- )ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22470 |
RX72..ME 10PA17C |
1 | ||
| 88320-22471 |
RX72..ME 10PA17C |
1 | ||
| 88320-22450 |
RX72..ME 10PA17C |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
MX73,RX72..ME |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
MX73,RX72..ME |
4 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
MX73,RX72..ME 10PA17C,RR |
1 | ||
| 88321-14021 |
RX72..ME FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
MX73,RX72..ME 10PA17C,RR |
1 | ||
| 88321-14021 |
RX72..ME FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
MX73,RX72..ME RR |
1 | ||
| 88341-14020 |
MX73,RX72..ME FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
MX73,RX72..ME RR |
1 | ||
| 88341-14020 |
MX73,RX72..ME FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
MX73,RX72..ME |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14020 |
MX73,RX72..ME |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MX73,RX72..ME |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MX73,RX72..ME |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-22300 |
RX72..ME |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
GX71,LX7#,MX7#,RX7# |
4 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
GX71,LX7#,MX7#,RX7# |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
MX73,RX72..ME |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-14040 |
MX73,RX72..ME |
1 | ||
| 88360-14030 |
MX73,RX72..ME |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30270 |
MX73..GLX..SA;GX71,LX7#,MX72,RX7#;MX73..ARL,EUR,GEN,ME |
2 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MX73,RX72..ME SUCTION |
1 | ||
| 88376-22020 |
MX73,RX72..ME DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22010 |
MX73,RX72..ME SUCTION |
1 | ||
| 88376-22020 |
MX73,RX72..ME DISCHARGE |
1 | ||

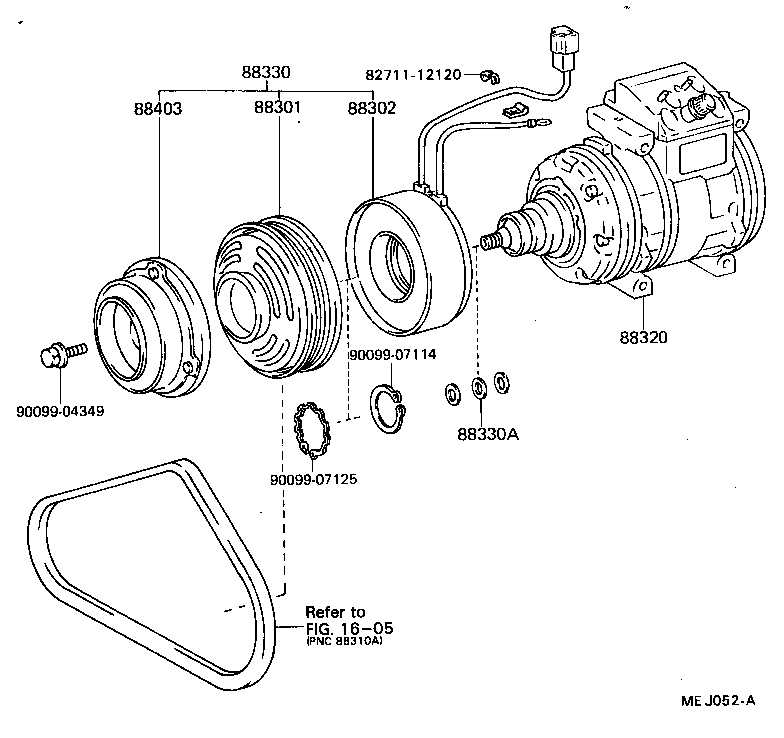

(8608- )ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22070 |
RX72..ME |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-30430 |
RX72..ME |
1 | ||
| 88411-22150 |
RX72..ME |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22470 |
RX72..ME 10PA17C |
1 | ||
| 88320-22471 |
RX72..ME 10PA17C |
1 | ||
| 88320-22450 |
RX72..ME 10PA17C |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22180 |
RX72..ME |
1 | ||
| 88410-22200 |
RX72..ME |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MX73,RX72..ME |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
MX73,RX72..ME |
1 | ||
| 88403-16010 |
MX73,RX72..ME |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| Linked diagrams | ||||
| 1605 | ||||
