RX72L-XEPESV (1986)

Toyota Cressida

Production Aug 1986 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )22R

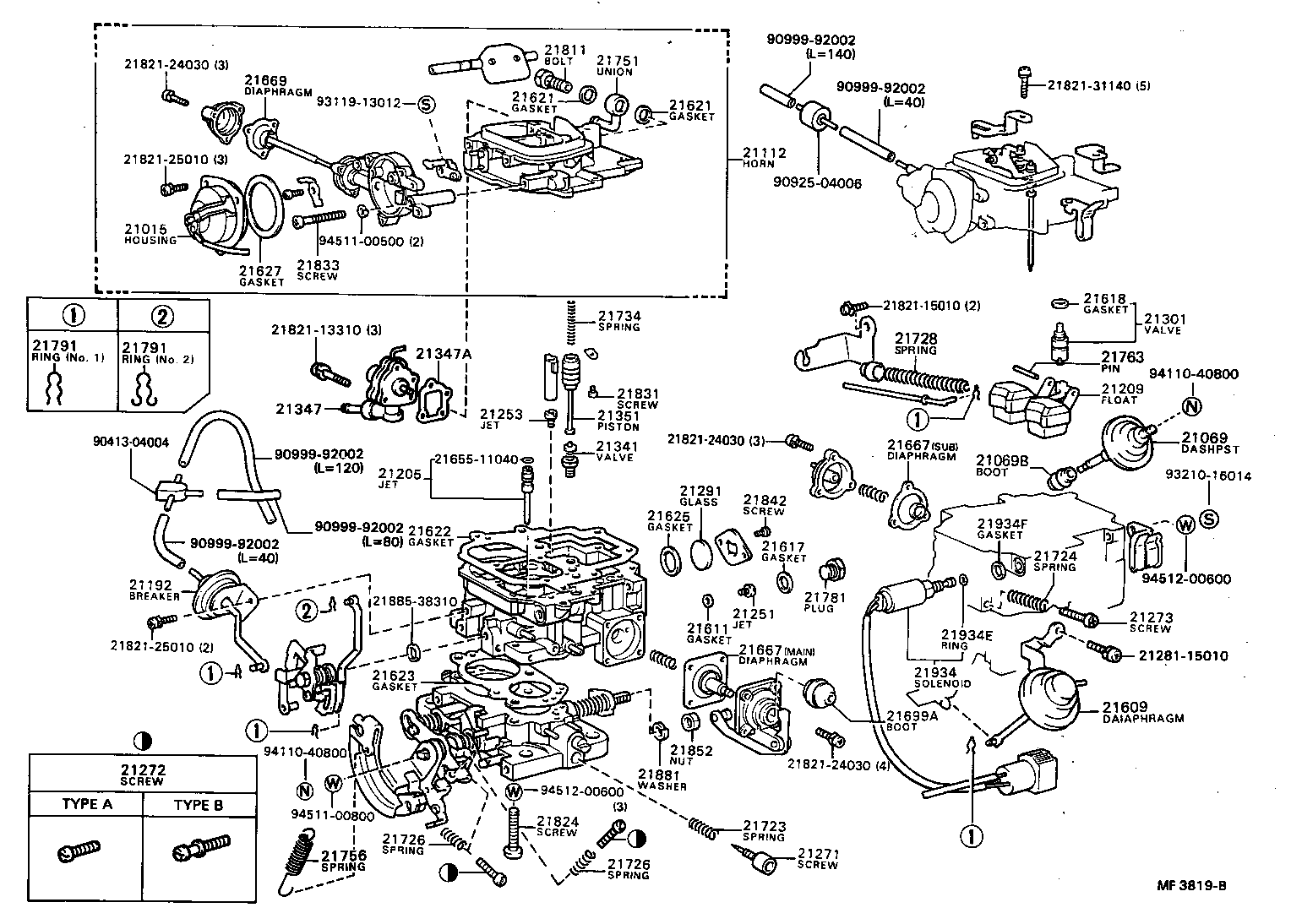

Click highlighted areas on diagram

diagram 21015 21069 21069B 21112 21192 21205 21209 21251 21253 21271 21272 21273 2128115010 21291 21301 21341 21347 21347A 21351 21609 21611 21617 21618 21621 21621 21622 21623 21625 21627 2165511040 21667 21667 21669 21699A 21723 21724 21726 21726 21728 21734 21751 21756 21763 21781 21791 21791 21811 2182113310 2182115010 2182124030 2182124030 2182124030 2182125010 2182125010 2182131140 21824 21831 21833 21842 21852 21881 2188538310 21934 21934E 21934F 9041304004 9092504006 9099992002 9099992002 9099992002 9099992002 9099992002 9311913012 9321016014 9411040800 9411040800 9451100500 9451100800 9451200600 9451200600
Part # Description Qty Price
21015 - HOUSING SUB-ASSY, COIL
21015-35450

22R..RX72..ME

 1
21015-35451

22R..RX72,73

 1
21069 - DASH POT SUB-ASSY
21069-37040

21R..RX70..4FC;22R..RX72..RHD;21R..RX70..RHD..5F;22R..RX72..LHD..4FC

 1
21069B - BOOT(FOR DASH POT)
21699-41010

21R..RX70..4FC;22R..RX72..RHD;21R..RX70..RHD..5F;22R..RX72..LHD..4FC

 1
21112 - HORN, AIR
21112-35451

22R..RX72,73

 1
21112-35450

22R..RX72..ME

 1
21192 - BREAKER
21192-35350

22R..RX72,73

 1
21205 - JET SUB-ASSY, SLOW
21205-35360

22R..RX72,73

 1
21209 - FLOAT SUB-ASSY
21209-37041

21R,22R..RX7#

 1
21251 - JET, 1ST MAIN
90999-41114

22R..RX72,73

 1
21253 - JET, 2ND MAIN
21253-37040

21R,22R..RX7#

 1
21271 - SCREW, IDLE ADJUSTING
21271-37080

22R..RX72..ME

 1
21272 - SCREW, 1ST IDLE ADJUSTING
21273-26370

22R..RX72,73

TYPE B

 1
21844-33010

22R..RX72,73

TYPE A

 1
21273 - SCREW, THROTTLE ADJUSTING
21273-71010

21R,22R..RX7#

 1
21291 - GLASS, LEVEL GAGE
21291-34320

21R,22R..RX7#

 1
21301 - VALVE SUB-ASSY, NEEDLE
21301-35010

21R..RX70,71;22R..RX72..ME

 1
21301-35010

22R..RX72

 1
21301-35010

22R..RX7#..LHD

 1
21341 - VALVE, POWER
21304-61060

21R,22R..RX7#

 1
21347 - VALVE, SOLENOID
21347-35420

22R..RX72..ME

 1
21347-35450

22R..RX72..ME

 1
21351 - PISTON, POWER
21351-37040

21R,22R..RX7#

 1
21611 - GASKET, MAIN JET
21611-22010

21R,22R..RX7#

 1
21617 - GASKET, MAIN PASSAGE PLUG
21617-30010

21R,22R..RX7#

 1
21618 - GASKET, NEEDLE VALVE SEAT
21618-14010

21R,22R..RX7#

 1
21621 - GASKET, UNION NIPPLE
21633-24030

21R,22R..RX7#

 2
21621 - GASKET, UNION NIPPLE
21633-24030

21R,22R..RX7#

 2
21622 - GASKET, AIR HORN
21622-63010

21R,22R..RX7#

 1
21623 - GASKET, BODY FLANGE
21623-35290

21R,22R..RX7#

 1
21625 - GASKET, LEVEL GAGE
21655-60200

21R,22R..RX7#

 1
21627 - GASKET, COIL HOUSING
21627-28150

21R,22R..RX7#

 1
21669 - DIAPHRAGM
21669-37040

21R,22R..RX7#

 1
21699A - BOOT(FOR ACCELERATION PUMP)
21699-37040

21R,22R..RX7#

 1
21723 - SPRING, IDLE ADJUSTING
21723-37040

21R,22R..RX7#

 1
21724 - SPRING, THROTTLE ADJUSTING
21723-38330

21R,22R..RX7#

 1
21726 - SPRING, 1ST IDLE ADJUSTING
21726-38310

21R,22R..RX7#

 2
21726 - SPRING, 1ST IDLE ADJUSTING
21726-38310

21R,22R..RX7#

 2
21728 - SPRING, THROTTLE VALVE RETURN
21864-31400

21R,22R..RX7#..LHD

 1
21734 - SPRING, POWER PISTON
21734-71010

22R..RX72

 1
21751 - UNION, NIPPLE
21894-37040

21R,22R..RX7#

 1
21763 - PIN, FLOAT LEVER
21763-34320

21R,22R..RX7#

 1
21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781-15230

21R,22R..RX7#

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

21R,22R..RX7#

NO.1

 4
21791-13010

21R,22R..RX7#

NO.2

 1
21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791-60010

21R,22R..RX7#

NO.1

 4
21791-13010

21R,22R..RX7#

NO.2

 1
21811 - BOLT, UNION NIPPLE
21811-11060

21R,22R..RX7#

 1
21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
93110-16035

21R,22R..RX7#

 3
21831 - SCREW, POWER PISTON STOP
21821-15060

21R,22R..RX7#

 1
21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21833-33010

21R,22R..RX7#

 2
21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21842-33010

21R,22R..RX7#

 2
21852 - NUT, THROTTLE LEVER SET
21852-30010

21R,22R..RX7#

 1
21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
21881-60010

21R,22R..RX7#

 1
21934 - SOLENOID, THROTTLE VALVE
21062-35450

22R..RX72..ME

 1
21062-35421

22R..RX72..ME

 1
21934E - RING, O(FOR SOLENOID VALVE)
21655-44101

21R,22R..RX7#

 1
21934F - GASKET
21617-10010

21R,22R..RX7#

 2
21617-10010

22R..RX72..ME

 1
Common parts
21281-15010
21655-11040
21821-13310
21821-15010
21821-24030
21821-25010
21821-31140
21885-38310
90413-04004
90925-04006
90999-92002
93119-13012
93210-16014
94110-40800
94511-00500
94511-00800
94512-00600
