RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

Click highlighted areas on diagram

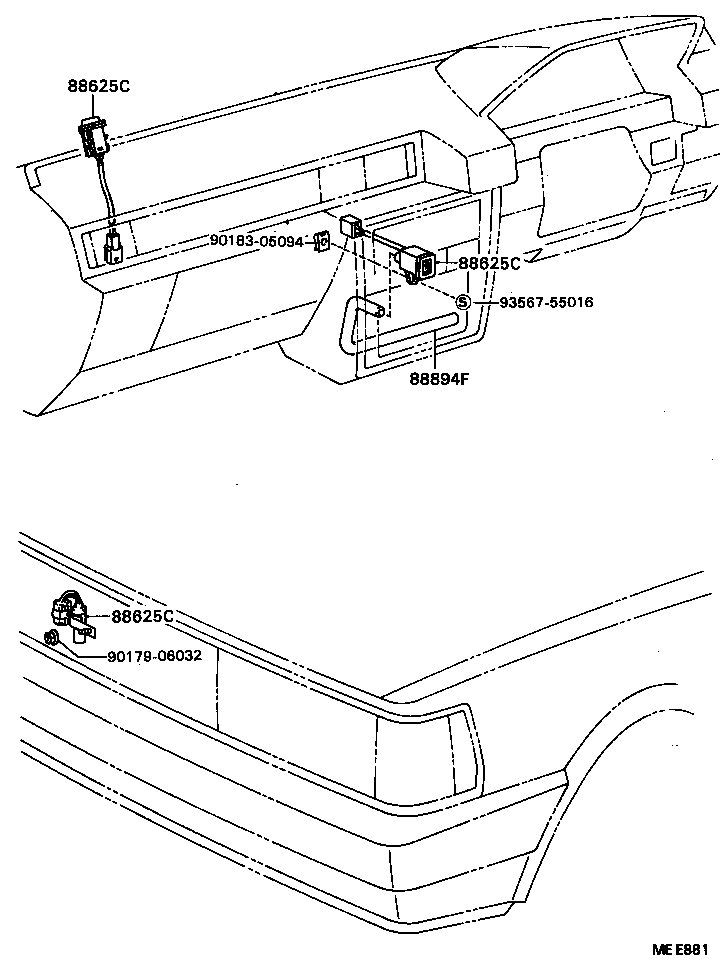

diagram 88625C 88625C 88625C 88894F 9017906032 9018305094 9356755016
Part # Description Qty Price
Common parts
90179-06032
90183-05094
93567-55016

(8408- )LHD

Click highlighted areas on diagram

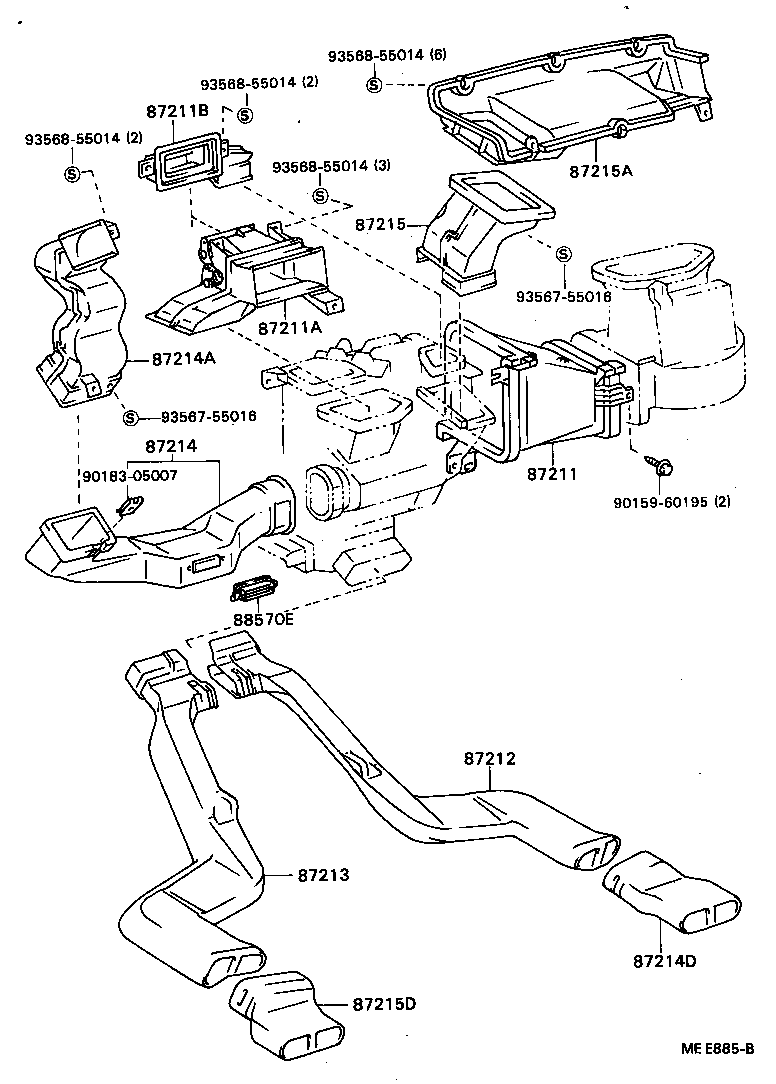

diagram 87211 87211A 87211B 87212 87213 87214 87214A 87214D 87215 87215A 87215D 88570E 9015960195 9018305007 9356755016 9356755016 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
87215 - DUCT, AIR, SIDE NO.1 LH
55086-22020

GX71,LX7#,MX7#,RX7#..LHD

 1
Common parts
90159-60195
90183-05007
93567-55016
93568-55014

(8408- )LHD

Click highlighted areas on diagram

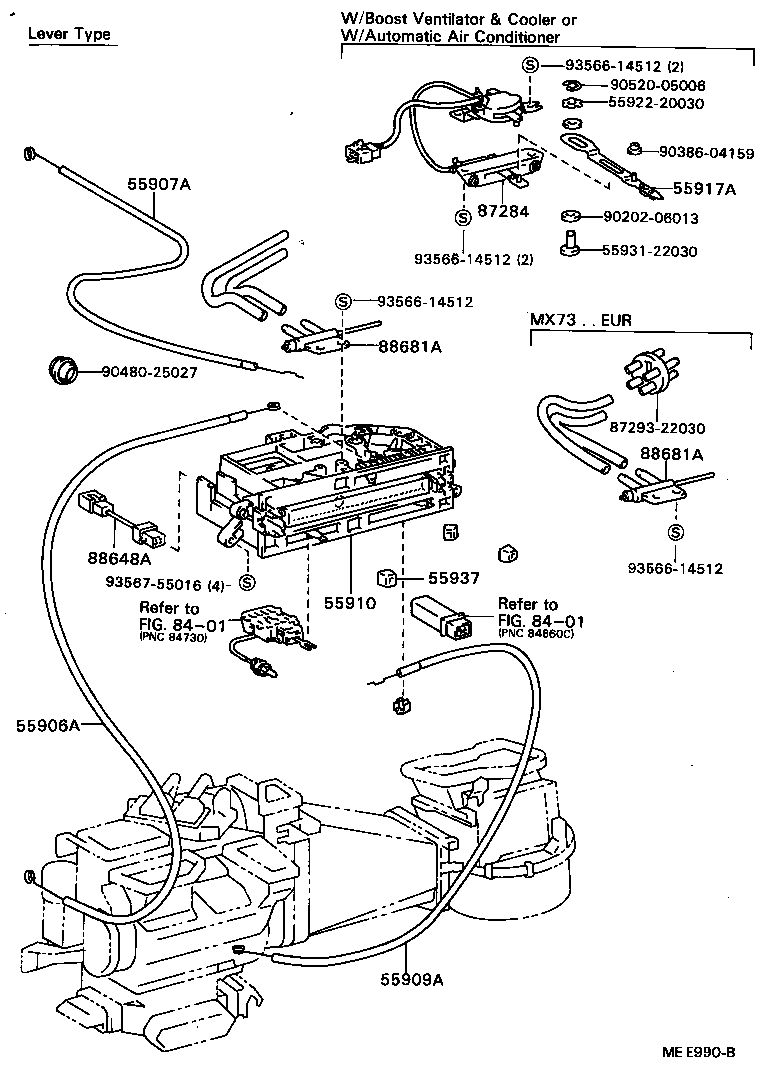

diagram 55906A 55907A 55909A 55910 55917A 5592220030 5593122030 55937 8401 8401 87284 8729322030 88648A 88681A 88681A 9020206013 9038604159 9048025027 9052005006 9356614512 9356614512 9356614512 9356614512 9356755016
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-22110

GX71,LX7#,MX7#,RX7#..LHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22340

LX70,RX7#..LHD..GEN

W/*BV

 1
55910-22360

RX7#..LHD..GEN

W/*BV & COOLER

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-22080

LX70,RX7#..LHD..GEN

W/*BV & COOLER

 1
Common parts
55922-20030
55931-22030
87293-22030
90202-06013
90386-04159
90480-25027
90520-05006
93566-14512
93567-55016
Linked diagrams
8401
