RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )HT,SED

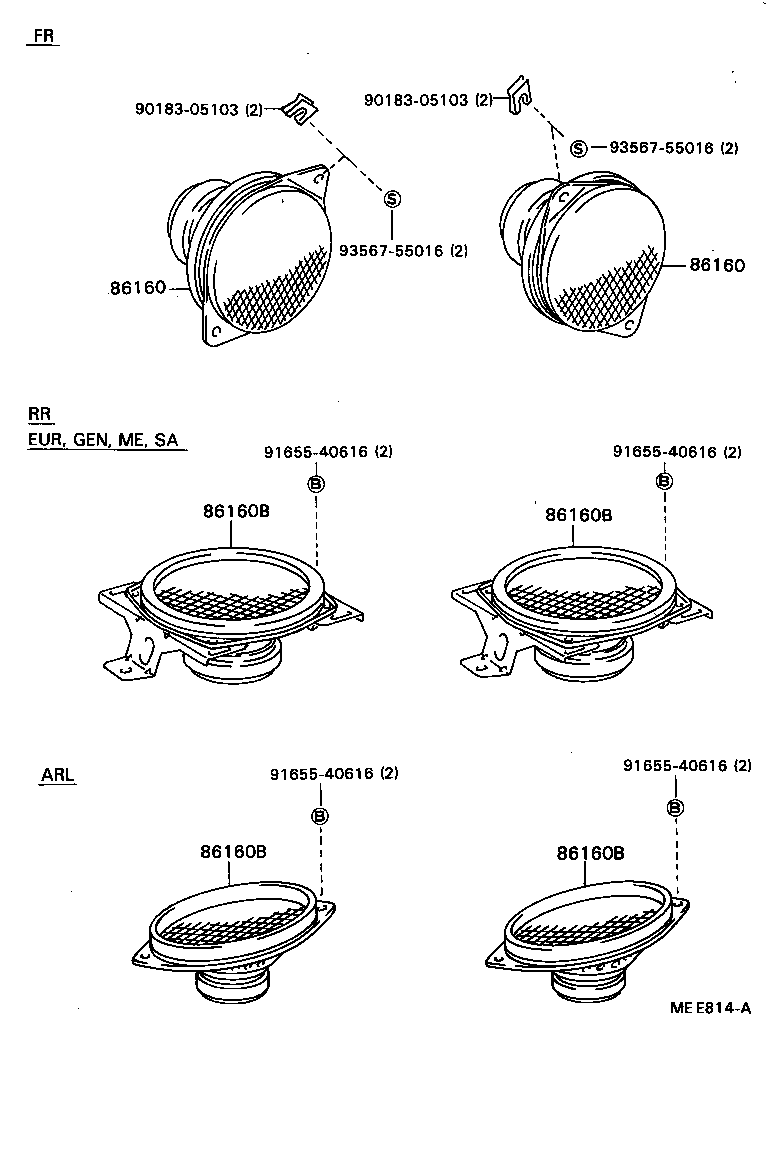

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160B 86160B 9018305103 9018305103 9165540616 9165540616 9165540616 9165540616 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

GX71,LX7#,MX7#,RX7#,YX70

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20230

GX71,LX7#,MX7#,RX7#,YX70

 2
86160B - SPEAKER ASSY, REAR
86160-22220

GX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,ME,SA)

 2
86160B - SPEAKER ASSY, REAR
86160-22220

GX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,ME,SA)

 2
86160B - SPEAKER ASSY, REAR
86160-22220

GX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,ME,SA)

 2
86160B - SPEAKER ASSY, REAR
86160-22220

GX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,ME,SA)

 2
Common parts
90183-05103
91655-40616
93567-55016
