RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

Click highlighted areas on diagram

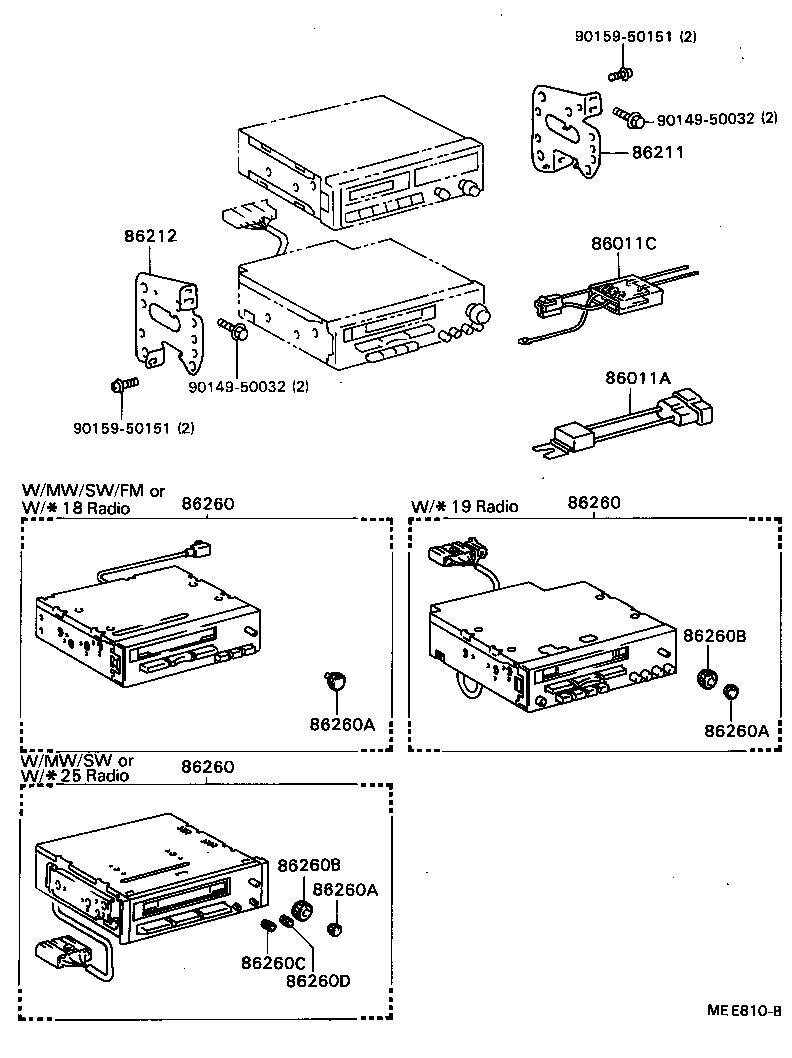

diagram 86011A 86011C 86211 86212 86260 86260 86260 86260A 86260A 86260A 86260B 86260B 86260C 86260D 9014950032 9014950032 9015950151 9015950151
Part # Description Qty Price
86011C - FILTER, NOISE
90980-05089

GX71,LX7#,MX7#,RX7#,YX70

 1
86211 - BRACKET, RADIO, NO.1
86211-22130

GX71,LX7#,RX7#..EUR,GEN,ME

 1
86212 - BRACKET, RADIO, NO.2
86212-22110

GX71,LX7#,RX7#..EUR,GEN,ME

 1
Common parts
90149-50032
90159-50151

(8408- )

Click highlighted areas on diagram

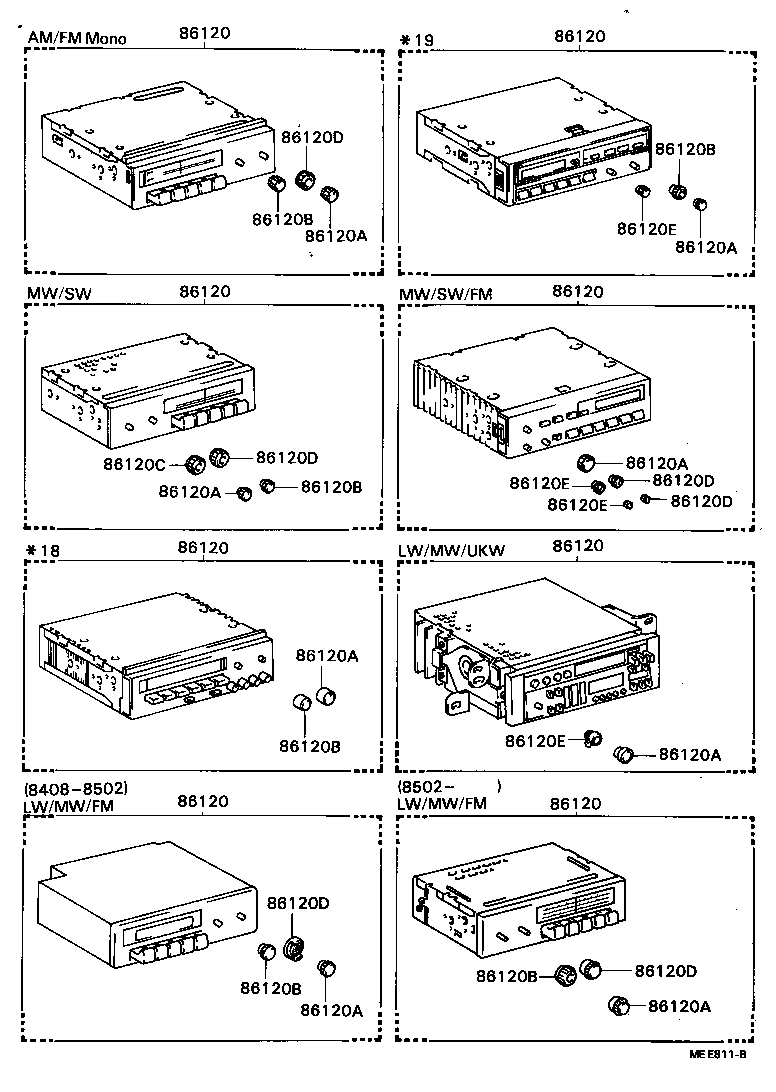

diagram 86120 86120 86120 86120 86120 86120 86120 86120 86120A 86120A 86120A 86120A 86120A 86120A 86120A 86120A 86120B 86120B 86120B 86120B 86120B 86120B 86120C 86120D 86120D 86120D 86120D 86120D 86120D 86120E 86120E 86120E 86120E
Part # Description Qty Price

(8408- )

Click highlighted areas on diagram

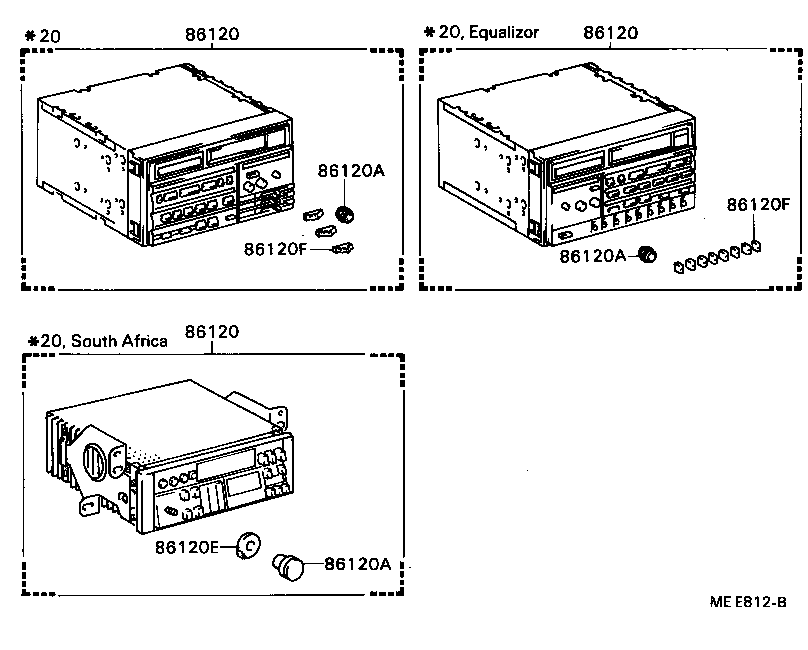

diagram 86120 86120 86120 86120A 86120A 86120A 86120E 86120F 86120F
Part # Description Qty Price
