RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

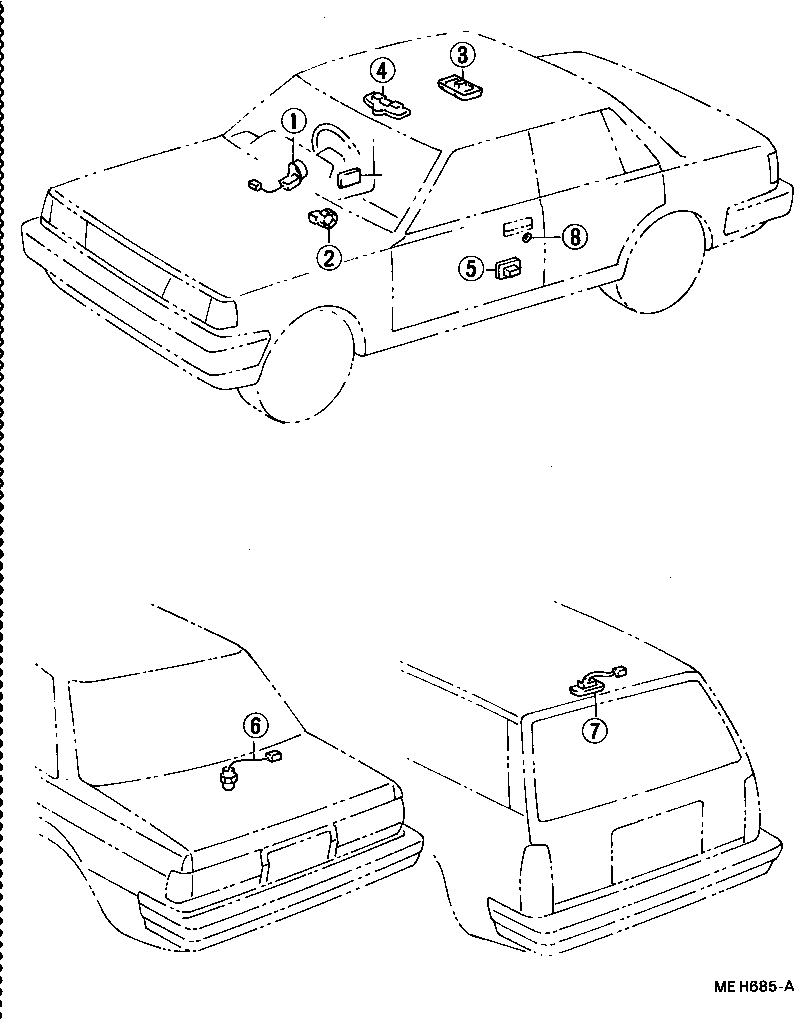

Click highlighted areas on diagram

diagram 25634
Part # Description Qty Price

(8408- )

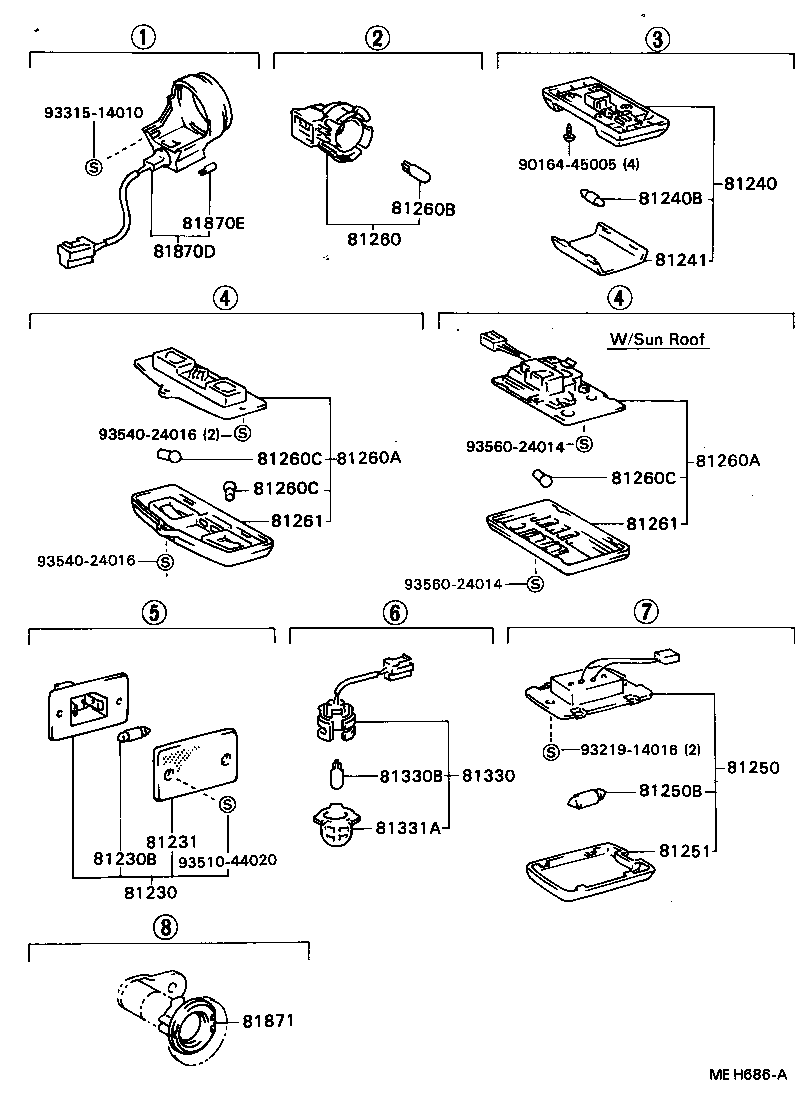

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81261 81261 81330 81330B 81331A 81870D 81870E 81871 9016445005 9321914016 9331514010 9351044020 9354024016 9354024016 9356024014 9356024014
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2401102

LX70,RX7#..SED..GL

W/SUN ROOF,MAROON,MAROON

 1
81240-2401115

LX70,RX7#..SED..GL

W/SUN ROOF,BEIGE,DARK BEIGE

 1
81240-2401104

LX70,RX7#..SED..GL

W/SUN ROOF,BLUE,DARK BLUE

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX71,LX7#,MX7#,RX7#,YX70

12V 10W,12V 10W

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

GX71,LX7#,MX7#,RX7#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

GX71,LX7#,MX7#,RX7#

12V 1.2W W/O SOCKET,12V 1.2W

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX71,LX7#,RX7#..SED..(GL,GLX)..(EUR,GEN,ME)

12V 10W,12V 10W,W/SUN ROOF

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX71,LX7#,RX7#..SED..(GL,GLX)..(EUR,GEN,ME)

12V 10W,12V 10W,W/SUN ROOF

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

GX71,LX7#,RX7#..SED..(GL,GLX)..(EUR,GEN,ME)

12V 10W,12V 10W,W/SUN ROOF

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-22030

GX71,LX7#,MX73,RX7#..HT,SED

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

GX71,LX7#,MX73,RX7#..HT,SED

12V 5W,12V 5W

 1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-22030

GX71,LX7#,MX73,RX7#..HT,SED

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-22020

GX71,LX7#,MX7#,RX7#..LHD

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

GX71,LX7#,MX7#,RX7#

14V 1.4W,12V 1.4W

 1
Common parts
90164-45005
93219-14016
93315-14010
93510-44020
93540-24016
93560-24014
