RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SED

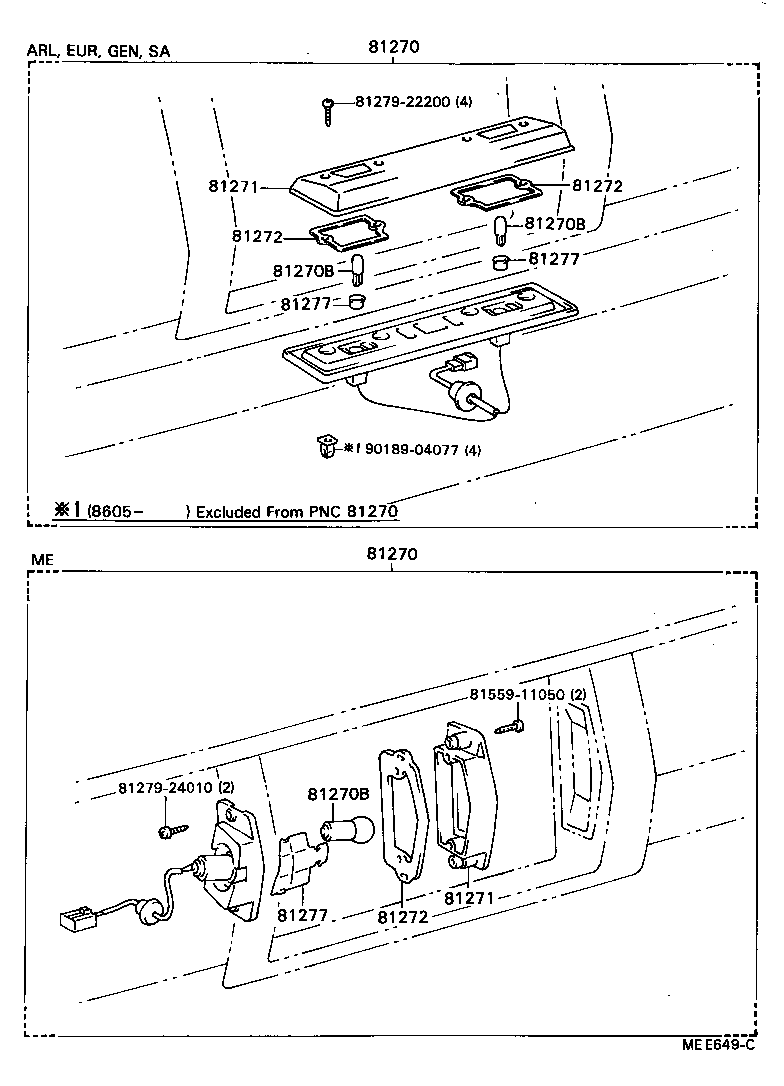

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81270B 81271 81271 81272 81272 81272 81277 81277 81277 8127922200 8127924010 8155911050 9018904077
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 1
81271 - LENS, LICENSE PLATE LAMP
81271-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-22200

GX71,LX7#,MX73,RX7#,YX70..SED..(ARL,EUR,GEN,SA)

 2
Common parts
81279-22200
81279-24010
81559-11050
90189-04077
