RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,MX73,RX7#..LHD

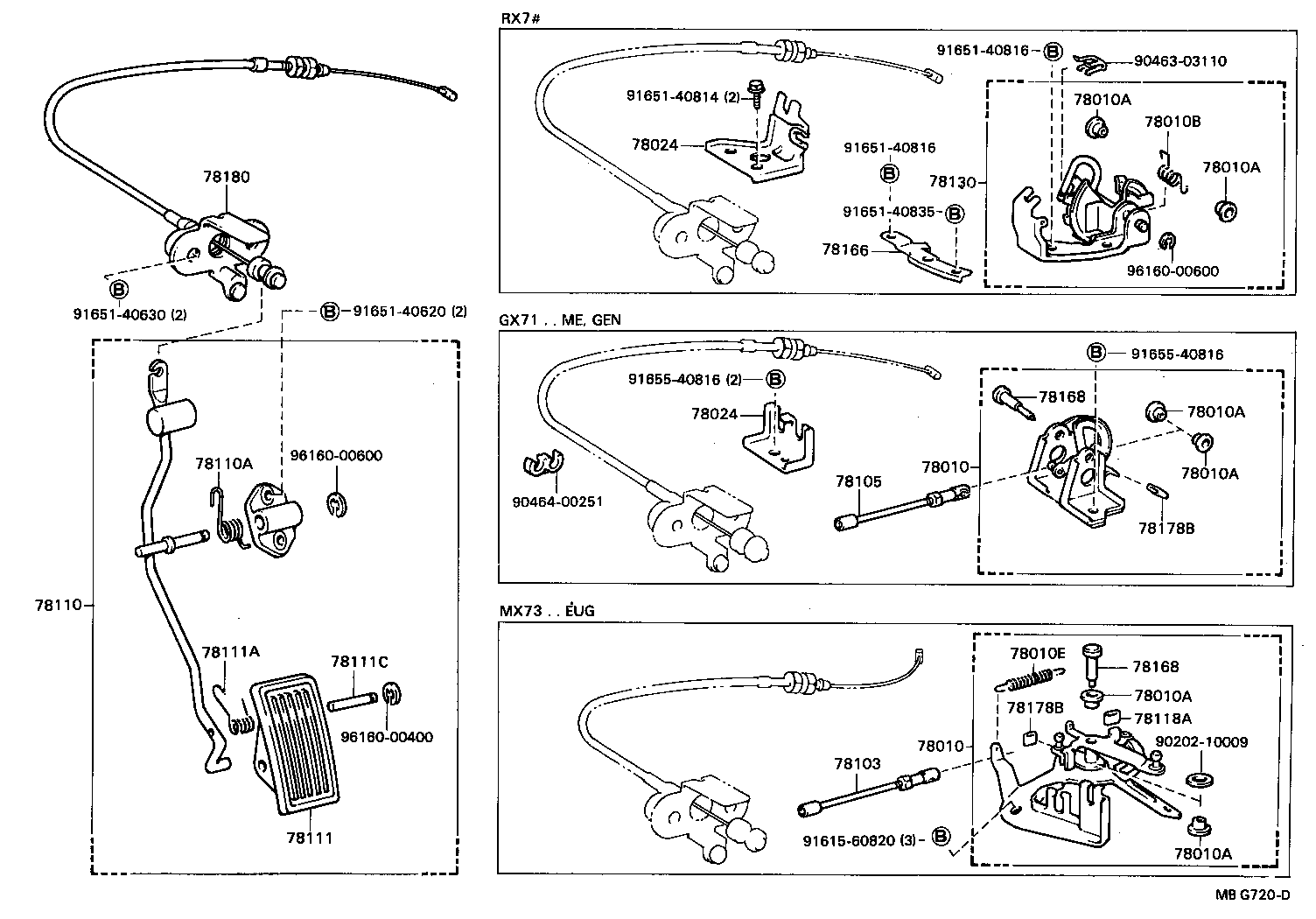

Click highlighted areas on diagram

diagram 78010 78010 78010A 78010A 78010A 78010A 78010A 78010A 78010B 78010E 78024 78024 78103 78105 78110 78110A 78111 78111A 78111C 78118A 78130 78166 78168 78168 78178B 78178B 78180 9020210009 9046303110 9046400251 9161560820 9165140620 9165140630 9165140814 9165140816 9165140816 9165140835 9165540816 9165540816 9616000400 9616000600 9616000600
Part # Description Qty Price
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08063

RX7#..LHD

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08063

RX7#..LHD

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08063

RX7#..LHD

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08063

RX7#..LHD

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08063

RX7#..LHD

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08063

RX7#..LHD

 2
78010B - SPRING, TORSION (FOR ACCELERATOR LINK)
90508-14076

RX7#..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22240

GX71,RX70,72..LHD..4FC

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18060

MX73..5F..EUG;GX71,LX7#,MX7#,RX70,72..4FC

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GX71,LX7#,MX7#,RX7#,YX70

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23088

GX71,LX7#,MX7#,RX7#,YX70

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX71,LX7#,MX7#,RX7#,YX70

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78160-89102

RX70,72..LHD..4FC

 1
78166 - BRACKET, ACCEL CONTROL NO.2 BELLCRANK
78166-89101

RX7#..LHD

 1
Common parts
90202-10009
90463-03110
90464-00251
91615-60820
91651-40620
91651-40630
91651-40814
91651-40816
91651-40835
91655-40816
96160-00400
96160-00600
