RX72L-XEPES (1987)
Toyota Cressida
Production
May 1987
-
Aug 1988
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

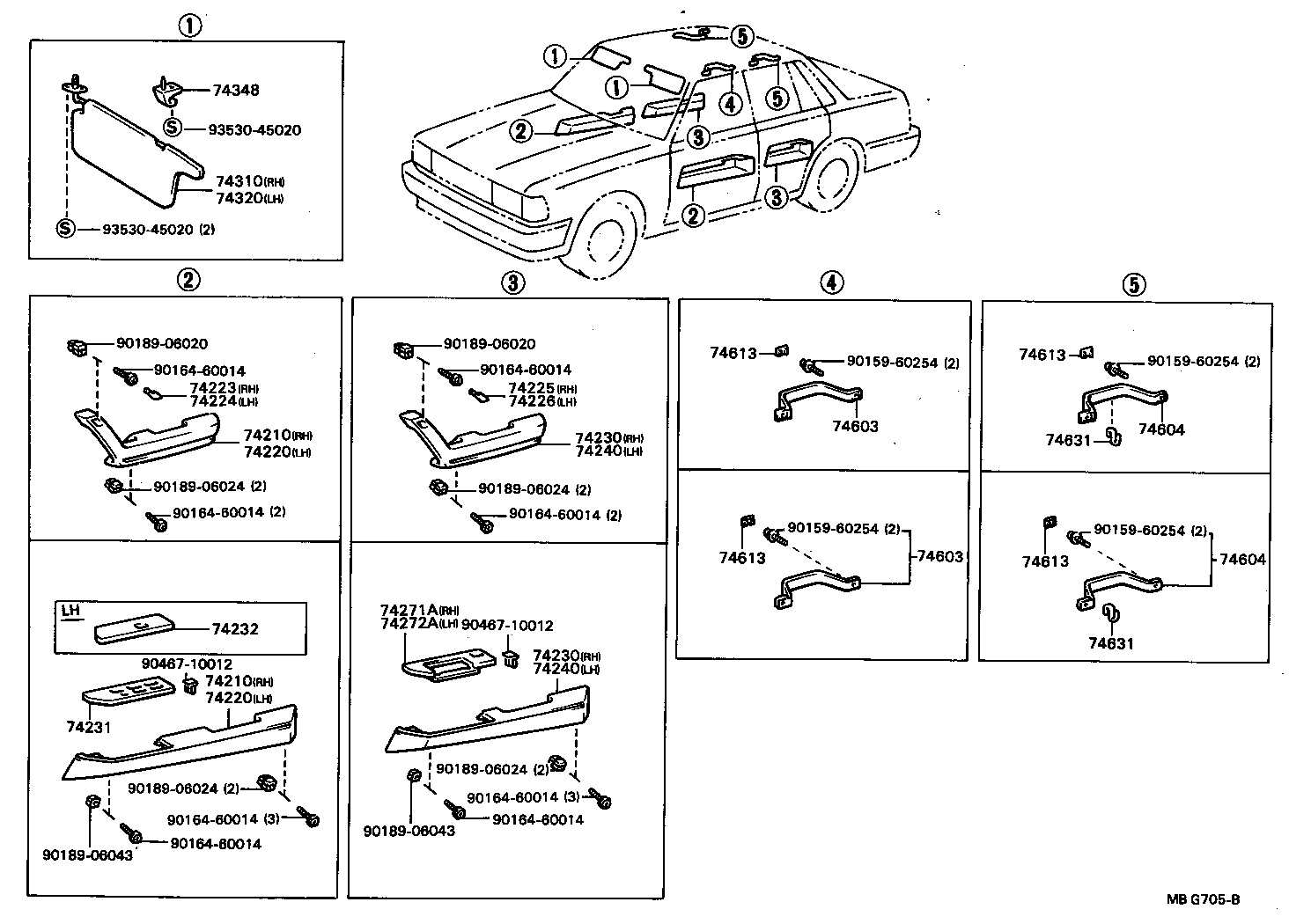

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2210002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-2210002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-2209002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-2209002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-2204002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-2204002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-2203002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-2203002 |
GX71,LX7#,MX72,RX7#..GL,GT W/*PW,MAROON,MAROON |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-22040 |
GX71,LX7#,MX7#,RX7#..GL,GT |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-22040 |
GX71,LX7#,MX7#,RX7#..GL,GT |
1 | ||
| Common parts | ||||
| 90159-60254 | ||||
| 90164-60014 | ||||
| 90189-06020 | ||||
| 90189-06024 | ||||
| 90189-06043 | ||||
| 90467-10012 | ||||
| 93530-45020 | ||||
