RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

Click highlighted areas on diagram

diagram 71511S 71511S 71512S 71512S 71521 71521 71522A 71522A 71551S 71551S 71552S 71552S 71554 71554 71564 71572 71572 71572 71572 71581C
Part # Description Qty Price
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-22330

GX71,LX7#,MX72,RX7#..GL

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-22330

GX71,LX7#,MX72,RX7#..GL

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-22330

GX71,LX7#,MX72,RX7#..GL

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-22330

GX71,LX7#,MX72,RX7#..GL

 1
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-22150

GX71,LX7#,MX7#,RX7#,YX70

 2
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
71521-22150

GX71,LX7#,MX7#,RX7#,YX70

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-22110

GX71,LX7#,MX7#,RX7#,YX70

 2
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
71522-22110

GX71,LX7#,MX7#,RX7#,YX70

 2
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-22270

GX71,LX7#,MX72,RX7#..GL

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-22270

GX71,LX7#,MX72,RX7#..GL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-22270

GX71,LX7#,MX72,RX7#..GL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-22270

GX71,LX7#,MX72,RX7#..GL

 1
71554 - PAD, FRONT SEAT BACK, C
71554-22020

GX71,LX7#,MX7#,RX70,72,YX70

 2
71554 - PAD, FRONT SEAT BACK, C
71554-22020

GX71,LX7#,MX7#,RX70,72,YX70

 2
71564 - PAD, FRONT SEAT BACK, SIDE
71564-22160

GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX

LH

 2
71563-22140

GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX

RH

 2
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30040

GX71,LX7#,MX7#,RX70,72,YX70

 4
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30040

GX71,LX7#,MX7#,RX70,72,YX70

 4
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30040

GX71,LX7#,MX7#,RX70,72,YX70

 4
71572 - PAD, FRONT SEAT BACK SILENCER, B
71572-30040

GX71,LX7#,MX7#,RX70,72,YX70

 4

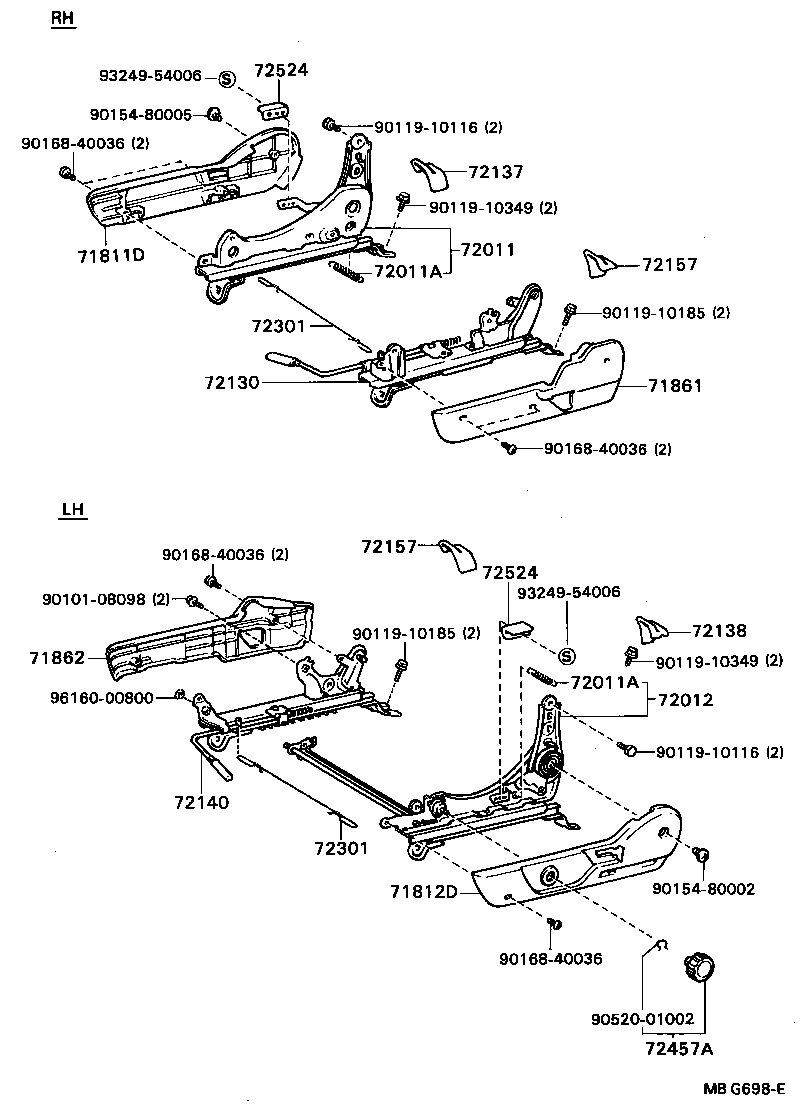

(8408- )LHD

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71862 72011 72011A 72011A 72012 72130 72137 72138 72140 72157 72157 72301 72301 72457A 72524 72524 9010108098 9011910116 9011910116 9011910185 9011910185 9011910349 9011910349 9015480002 9015480005 9016840036 9016840036 9016840036 9016840036 9052001002 9324954006 9324954006 9616000800
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-2212002

GX71,LX7#,MX7#,RX7#..LHD

MAROON,RED

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-2210002

GX71,LX7#,MX7#,RX7#..LHD

MAROON,RED

 1
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-20045

GX71,LX7#,MX7#,RX7#,YX70

 2
72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
90506-20045

GX71,LX7#,MX7#,RX7#,YX70

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-22110

GX71,LX7#,MX7#,RX7#,YX70

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-22110

GX71,LX7#,MX7#,RX7#,YX70

 2
72457A - KNOB, SEAT ADJUSTER
72457-2201002

GX71,LX7#,MX7#,RX7#

MAROON,RED

 1
Common parts
90101-08098
90119-10116
90119-10185
90119-10349
90154-80002
90154-80005
90168-40036
90520-01002
93249-54006
96160-00800
