RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )HT,SED

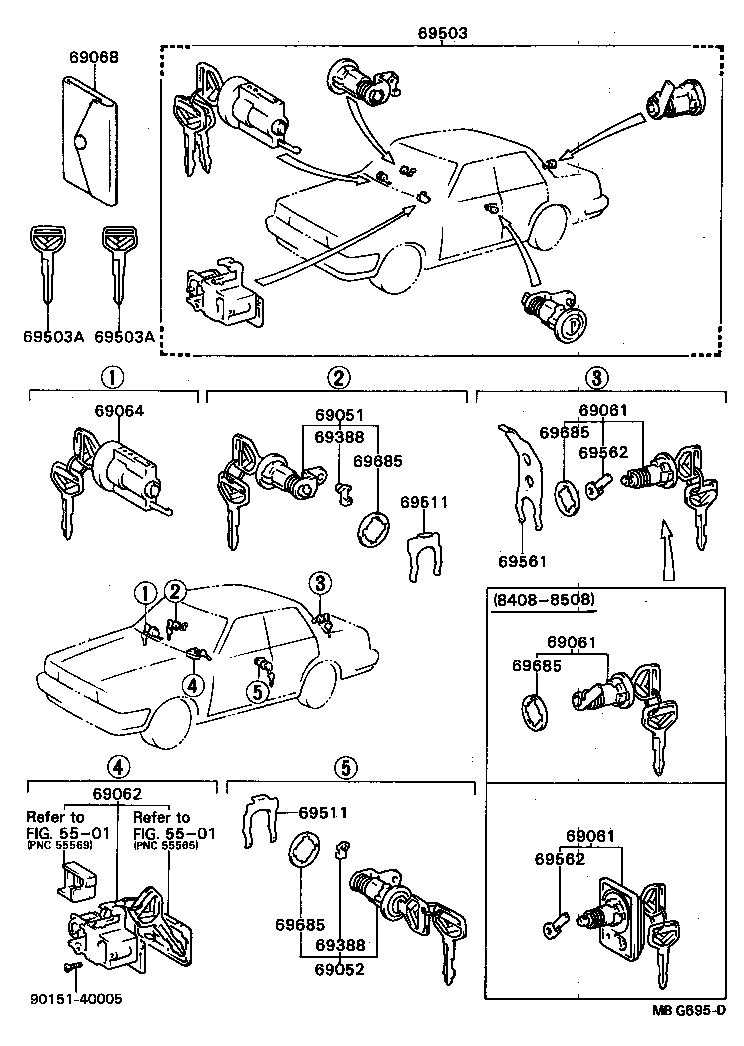

Click highlighted areas on diagram

diagram 5501 5501 69051 69052 69061 69061 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69511 69511 69561 69562 69562 69685 69685 69685 69685 9015140005
Part # Description Qty Price
69068 - COVER SUB-ASSY, KEY
69555-20010

GX71,LX7#,MX7#,RX7#,YX70

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

GX71,LX7#,MX7#,RX7#,YX70

LH,FR DOOR

 1
69759-20080

GX71,LX7#,MX7#,RX7#,YX70

RH,FR DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

GX71,LX7#,MX7#,RX7#,YX70

LH,FR DOOR

 1
69759-20080

GX71,LX7#,MX7#,RX7#,YX70

RH,FR DOOR

 1
69503A - KEY, BLANK
90999-00100

GX71,LX70,MX73,RX7#,YX70..(HT,SED)..(ARL,GEN,ME,SA)

SUB KEY,SUB

 1
90999-00099

GX71,LX70,MX73,RX7#,YX70..(HT,SED)..(ARL,GEN,ME,SA)

MASTER KEY,MASTER

 1
69503A - KEY, BLANK
90999-00100

GX71,LX70,MX73,RX7#,YX70..(HT,SED)..(ARL,GEN,ME,SA)

SUB KEY,SUB

 1
90999-00099

GX71,LX70,MX73,RX7#,YX70..(HT,SED)..(ARL,GEN,ME,SA)

MASTER KEY,MASTER

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX71,LX7#,MX7#,RX7#,YX70

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX71,LX7#,MX7#,RX7#,YX70

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-22050

GX71,LX7#,MX73,RX7#,YX70..HT,SED

 1
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX7#,MX73,RX7#,YX70..HT,SED

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX7#,MX73,RX7#,YX70..HT,SED

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX7#,MX73,RX7#,YX70..HT,SED

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69513-32010

GX71,LX7#,MX73,RX7#,YX70..HT,SED

FR DOOR

 2
Common parts
90151-40005
Linked diagrams
5501
