RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SED,WG

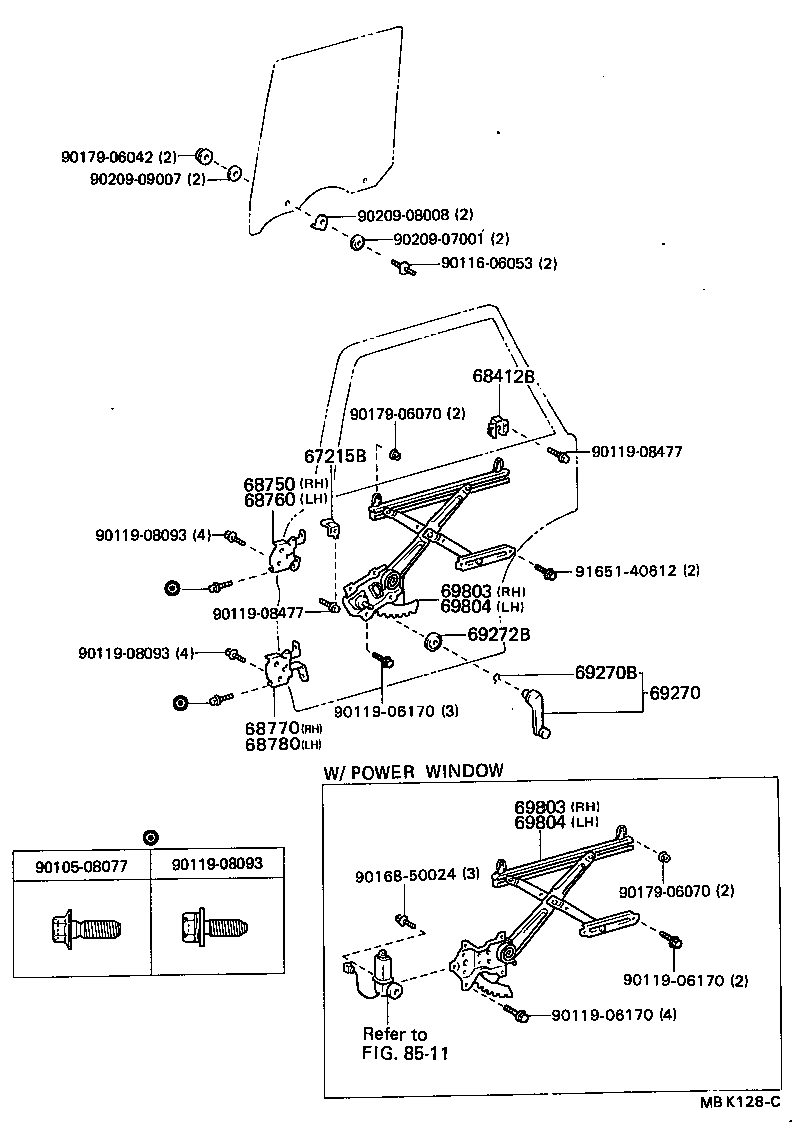

Click highlighted areas on diagram

diagram 67215B 68412B 68750 68760 68770 68780 69270 69270B 69272B 69803 69803 69804 69804 8511 9010508077 9011606053 9011906170 9011906170 9011906170 9011908093 9011908093 9011908093 9011908477 9011908477 9016850024 9017906042 9017906070 9017906070 9020907001 9020908008 9020909007 9165140612
Part # Description Qty Price
67215B - STOP, REAR DOOR WINDOW, UPPER
67215-22020

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 2
68412B - STOP SUB-ASSY, DOOR WINDOW, UPPER
67212-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-2203014

RX7#..GEN

DARK BLUE

 2
69260-2203022

RX7#..GEN

MAROON

 2
69260-2203015

RX7#..GEN

DARK BEIGE

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

RX7#..GEN,SA

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

RX7#..GEN,SA

NATURAL WHITE

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69830-22120

RX7#..GEN,SA

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69830-22120

RX7#..GEN,SA

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69840-22120

RX7#..GEN,SA

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69840-22120

RX7#..GEN,SA

 1
Common parts
90105-08077
90116-06053
90119-06170
90119-08093
90119-08477
90168-50024
90179-06042
90179-06070
90209-07001
90209-08008
90209-09007
91651-40612
Linked diagrams
8511
