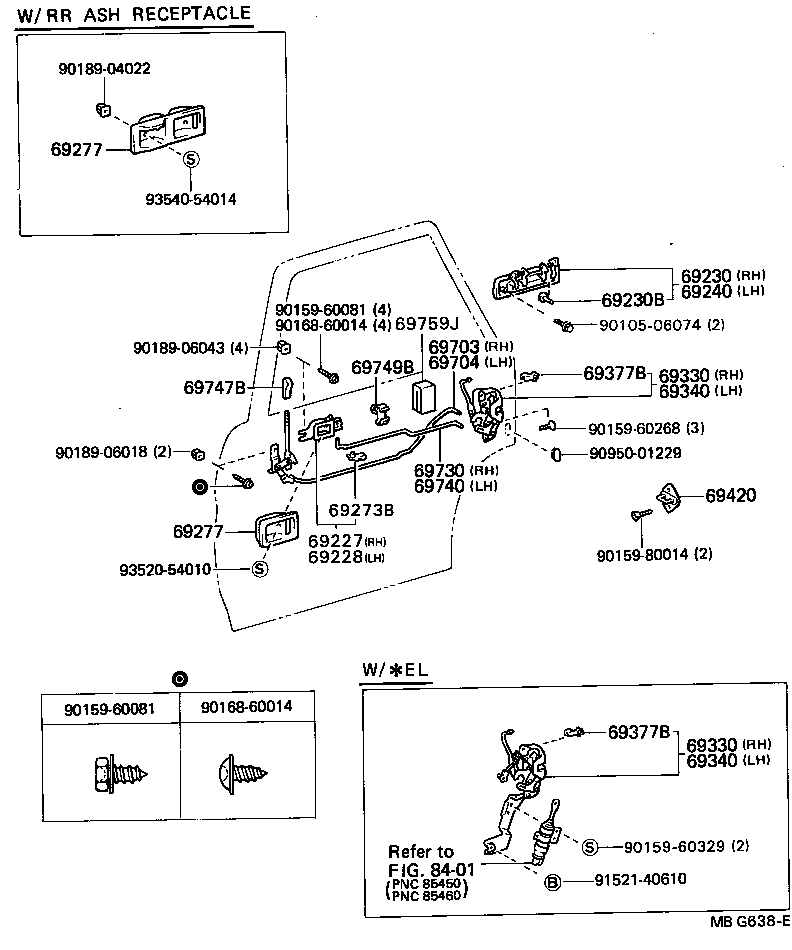

RX72L-XEPES (1987)
Toyota Cressida
(8408- )SED,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69205-22030 |
GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69206-22030 |
GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-22080 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX71,LX7#,MX7#,RX7#,YX70 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-22070 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69297-2201015 |
RX7#..GEN RH,BEIGE,DARK BEIGE |
1 | ||
| 69297-2201004 |
RX7#..GEN RH,BLUE,DARK BLUE |
1 | ||
| 69298-2201004 |
RX7#..GEN LH,BLUE,DARK BLUE |
1 | ||
| 69297-2201012 |
RX7#..GEN RH,MAROON,MAROON |
1 | ||
| 69298-2201012 |
RX7#..GEN LH,MAROON,MAROON |
1 | ||
| 69298-2201015 |
RX7#..GEN LH,BEIGE,DARK BEIGE |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69297-2201015 |
RX7#..GEN RH,BEIGE,DARK BEIGE |
1 | ||
| 69297-2201004 |
RX7#..GEN RH,BLUE,DARK BLUE |
1 | ||
| 69298-2201004 |
RX7#..GEN LH,BLUE,DARK BLUE |
1 | ||
| 69297-2201012 |
RX7#..GEN RH,MAROON,MAROON |
1 | ||
| 69298-2201012 |
RX7#..GEN LH,MAROON,MAROON |
1 | ||
| 69298-2201015 |
RX7#..GEN LH,BEIGE,DARK BEIGE |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20050 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG RH |
1 | ||
| 69759-20040 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG LH |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20050 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG RH |
1 | ||
| 69759-20040 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG LH |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-22040 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-22040 |
GX71,LX7#,MX7#,RX7#,YX70..SED,WG |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12040 |
GX71,LX7#,MX7#,RX7#,YX70 TYPE A |
2 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80014 | ||||
| 90168-60014 | ||||
| 90189-04022 | ||||
| 90189-06018 | ||||
| 90189-06043 | ||||
| 90950-01229 | ||||
| 91521-40610 | ||||
| 93520-54010 | ||||
| 93540-54014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
