RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

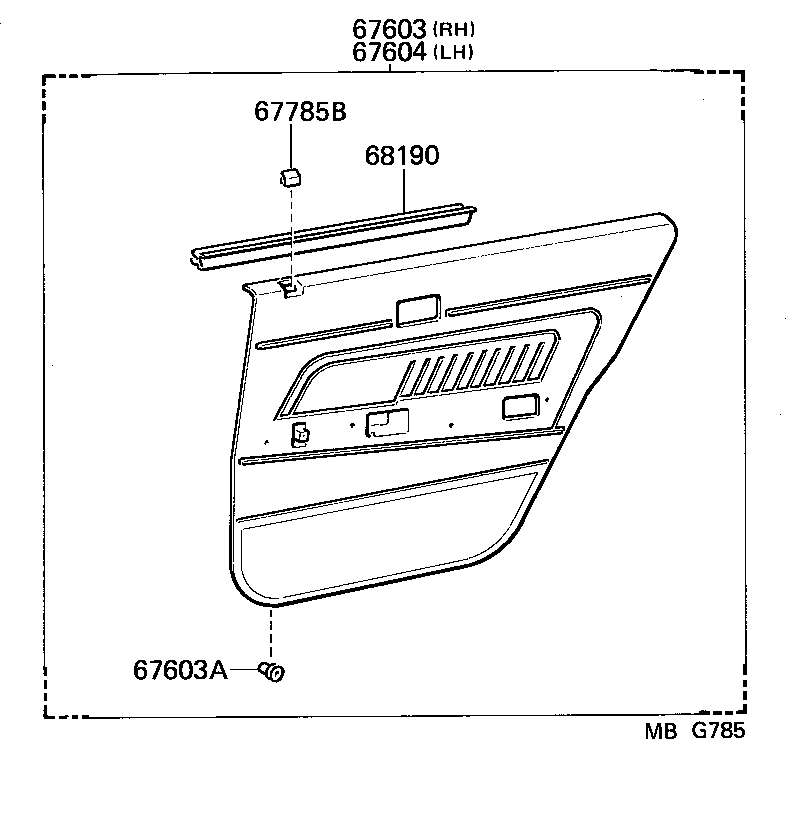

Click highlighted areas on diagram

diagram 67603 67603A 67604 67785B 68190
Part # Description Qty Price
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-30060

GX71,LX7#,MX7#,RX7#,YX70

BLUE

 12
67771-22010

GX71,LX7#,MX7#,RX7#,YX70

BLACK

 8
67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
67785-2203002

GX71,LX7#,MX7#,RX7#

MAROON,MAROON

 2
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-22070

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

RH

 1
68240-22050

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

LH

 1

(8408- )SED,WG

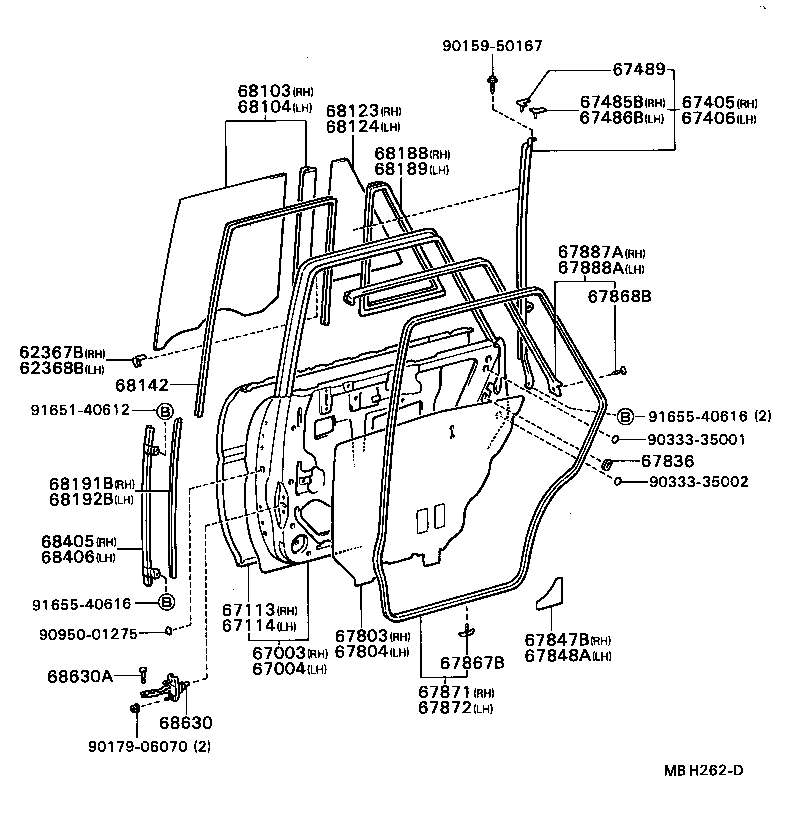

Click highlighted areas on diagram

diagram 62367B 62368B 67003 67004 67113 67114 67405 67406 67485B 67486B 67489 67803 67804 67836 67847B 67848A 67867B 67868B 67871 67872 67887A 67888A 68103 68104 68123 68124 68142 68188 68189 68191B 68192B 68405 68406 68630 68630A 9015950167 9017906070 9033335001 9033335002 9095001275 9165140612 9165540616 9165540616
Part # Description Qty Price
62367B - CLIP, DOOR WINDOW GLASS, REAR RH
62367-22050

GX71,LX70,RX7#..GEN

W/FRAME MOULDING

 1
62368B - CLIP, DOOR WINDOW GLASS, REAR LH
62368-22060

GX71,LX70,RX7#..GEN

W/FRAME MOULDING

 1
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-22230

GX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,SA)

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-22240

GX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,SA)

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-22110

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-22050

GX71,LX7#,MX73,RX7#,YX70..SED

 1
67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-22050

GX71,LX7#,MX73,RX7#,YX70..SED

 1
67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH
67485-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
67486B - SEAL, REAR DOOR DIVISION BAR, INSIDE, LH
67486-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
67489 - SEAL, REAR DOOR DIVISION BAR
67488-22030

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

LH

 1
67487-22030

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

RH

 1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867-22020

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
67868-22010

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67869-30020

GX71,LX7#,MX7#,RX7#,YX70

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-22100

GX71,LX7#,MX73,RX7#,YX70..SED

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-22100

GX71,LX7#,MX73,RX7#,YX70..SED

 1
67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH
67887-22010

GX71,LX7#,MX73,RX7#,YX70..SED

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67888-22010

GX71,LX7#,MX73,RX7#,YX70..SED

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-22060

LX70,RX7#..SED..GL

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

 1
68103-22050

GX71,LX7#,MX73,RX7#,YX70..SED

*TT,T=3.5,*TT,T=3.5

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-22050

GX71,LX7#,MX73,RX7#,YX70..SED

*TT,T=3.5,*TT,T=3.5

 1
68104-22060

LX70,RX7#..SED..GL

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

 1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-22140

GX71,LX7#,MX73,RX7#,YX70..SED

*TT,T=3.5,*TT,T=3.5

 1
68123-22150

LX70,RX7#..SED..GL

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

 1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-22130

GX71,LX7#,MX73,RX7#,YX70..SED

*TT,T=3.5,*TT,T=3.5

 1
68124-22140

LX70,RX7#..SED..GL

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

 1
68142 - RUN, REAR DOOR GLASS
68142-22050

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
68152-22010

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-22060

GX71,LX7#,MX73,RX7#,YX70..SED

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-22050

GX71,LX7#,MX73,RX7#,YX70..SED

 1
68191B - RUN, REAR DOOR GLASS, NO.2 RH
68191-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68192B - RUN, REAR DOOR GLASS, NO.2 LH
68192-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68405 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67405-22060

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68406 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67406-22060

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68630 - CHECK ASSY, REAR DOOR
68630-22040

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 2
Common parts
90159-50167
90179-06070
90333-35001
90333-35002
90950-01275
91651-40612
91655-40616
