RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SED,WG

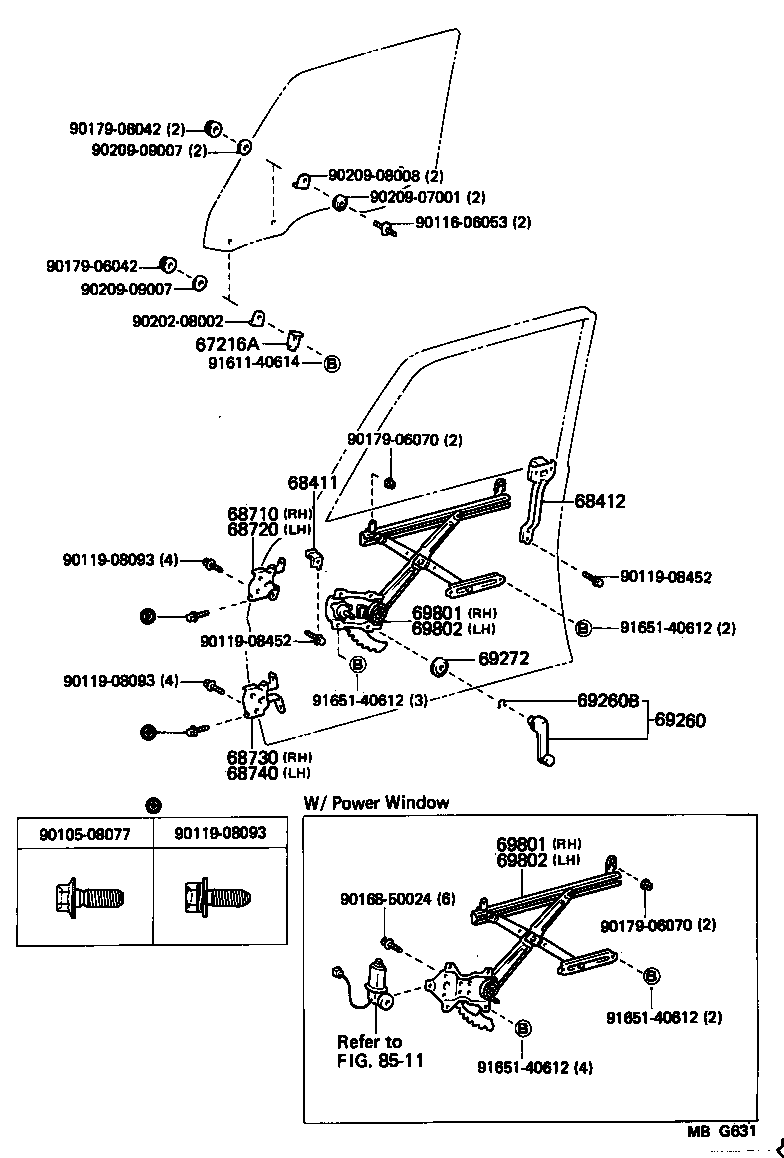

Click highlighted areas on diagram

diagram 67216A 68411 68412 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8511 9010508077 9011606053 9011908093 9011908093 9011908093 9011908452 9011908452 9016850024 9017906042 9017906042 9017906070 9017906070 9020208002 9020907001 9020908008 9020909007 9020909007 9161140614 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
67216A - STOPPER, FRONT DOOR GLASS, UPPER NO.2
67216-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT
67211-22010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-22050

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-22040

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-32010

GX71,LX7#,MX7#,RX7#,YX70..SED,WG

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2203022

RX7#..GEN

MAROON,MAROON

 2
69260-2203015

RX7#..GEN

BEIGE,DARK BEIGE

 2
69260-2203014

RX7#..GEN

BLUE,DARK BLUE

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

RX7#..GEN,SA

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

RX7#..GEN,SA

NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69810-22130

RX7#..GEN,SA

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69810-22130

RX7#..GEN,SA

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22120

RX7#..GEN,SA

 1
69802-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-22120

RX7#..GEN,SA

 1
69802-22080

GX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)

W/POWER WINDOW

 1
Common parts
90105-08077
90116-06053
90119-08093
90119-08452
90168-50024
90179-06042
90179-06070
90202-08002
90209-07001
90209-08008
90209-09007
91611-40614
91651-40612
Linked diagrams
8511
