RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

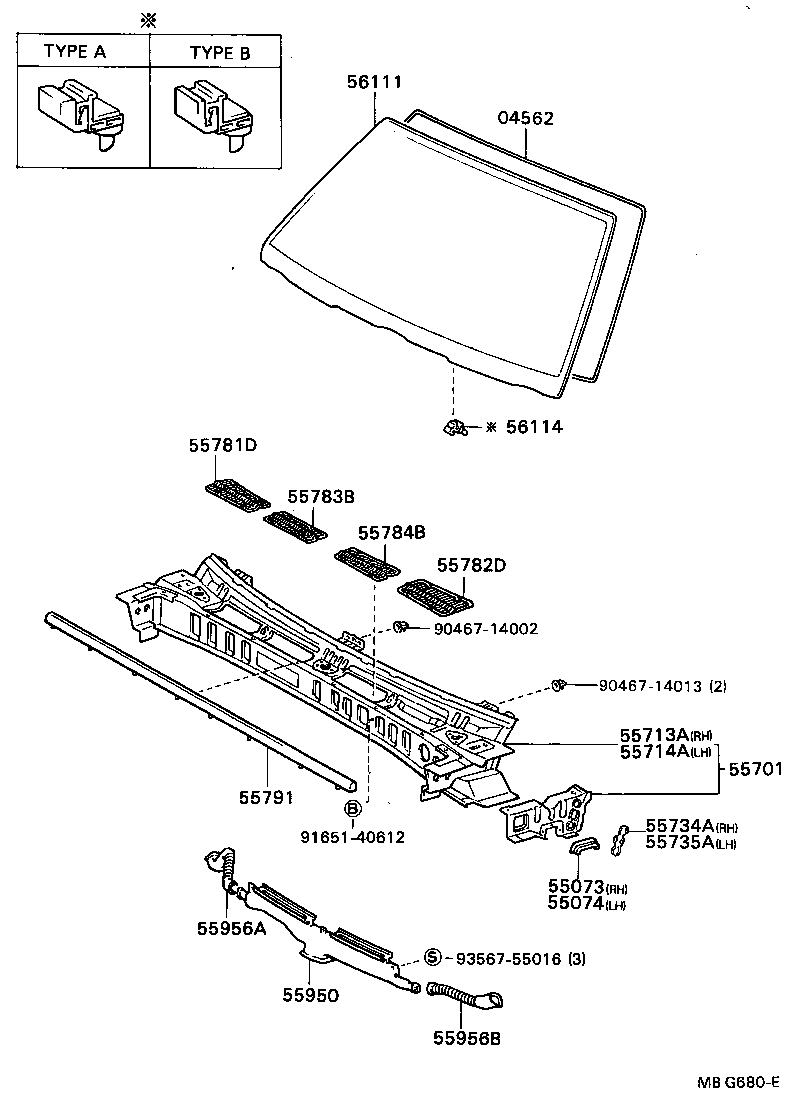

Click highlighted areas on diagram

diagram 04562 55073 55074 55701 55713A 55714A 55734A 55735A 55781D 55782D 55783B 55784B 55791 55950 55956A 55956B 56111 56114 9046714002 9046714013 9165140612 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

GX71,LX7#,MX7#,RX7#,YX70

 1
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-22020

GX71,LX7#,MX7#,RX7#,YX70

 1
55074 - COVER SUB-ASSY, COWL INNER HEATER AIR
55074-22030

GX71,LX7#,MX7#,RX7#,YX70

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-22050

GX71,LX7#,MX7#,RX7#,YX70

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-22050

GX71,LX7#,MX7#,RX7#,YX70

 1
55734A - PLATE, WATER GUARD, RH
55734-22060

GX71,LX7#,MX7#,RX7#,YX70

 1
55735A - PLATE, WATER GUARD, LH
55734-22060

GX71,LX7#,MX7#,RX7#,YX70

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-22040

GX71,LX7#,MX7#,RX7#,YX70

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-22050

GX71,LX7#,MX7#,RX7#..LHD

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-22040

GX71,LX7#,MX7#,RX7#..LHD

 1
Common parts
90467-14002
90467-14013
91651-40612
93567-55016
