RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )HT,SED

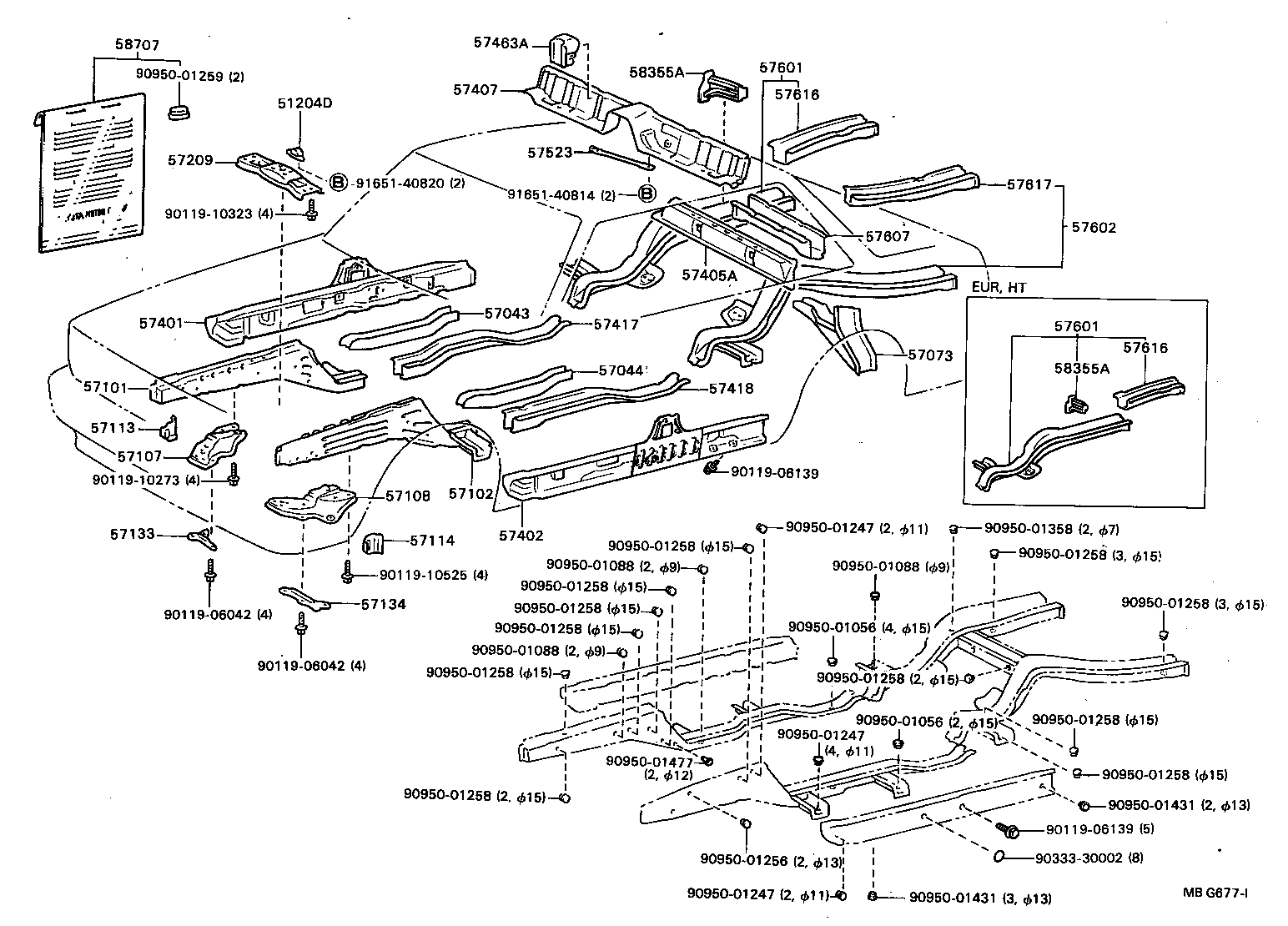

Click highlighted areas on diagram

diagram 51204D 57043 57044 57073 57101 57102 57107 57108 57113 57114 57133 57134 57209 57401 57402 57405A 57407 57417 57418 57463A 57523 57601 57601 57602 57607 57616 57616 57617 58355A 58355A 58707 9011906042 9011906042 9011906139 9011906139 9011910273 9011910323 9011910525 9033330002 9095001056 9095001056 9095001088 9095001088 9095001088 9095001247 9095001247 9095001247 9095001256 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001258 9095001259 9095001358 9095001431 9095001431 9095001477 9165140814 9165140820
Part # Description Qty Price
51204D - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51204-22050

LX7#,RX7#

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-22040

LX70,RX70,72,YX70..HT,SED

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22070

GX71,LX7#,MX7#,RX7#,YX70

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22140

GX71,LX7#,MX7#,RX7#,YX70

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-22020

LX70,RX7#..GEN,ME

 1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57134-22010

LX70,RX7#..GEN,ME

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22190

LX7#,RX7#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22080

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,SA

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22080

GX71,LX70,MX73,RX7#,YX70..ARL,GEN,SA

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-22010

GX71,LX7#,MX73,RX7#,YX70..HT,SED

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22060

LX70,RX70,72,YX70..HT,SED

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-22070

LX70,RX70,72,YX70..HT,SED

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22901

LX70,RX70,72,YX70..HT,SED

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22901

LX70,RX70,72,YX70..HT,SED

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22901

LX70,RX70,72,YX70..HT,SED

 1
58355A - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-22030

GX71,LX7#,MX73,RX7#,YX70..HT,SED

 1
58355A - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-22030

GX71,LX7#,MX73,RX7#,YX70..HT,SED

 1
Common parts
90119-06042
90119-06139
90119-10273
90119-10323
90119-10525
90333-30002
90950-01056
90950-01088
90950-01247
90950-01256
90950-01258
90950-01259
90950-01358
90950-01431
90950-01477
91651-40814
91651-40820
