RX72L-XEPES (1987)
Toyota Cressida
Production
May 1987
-
Aug 1988
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

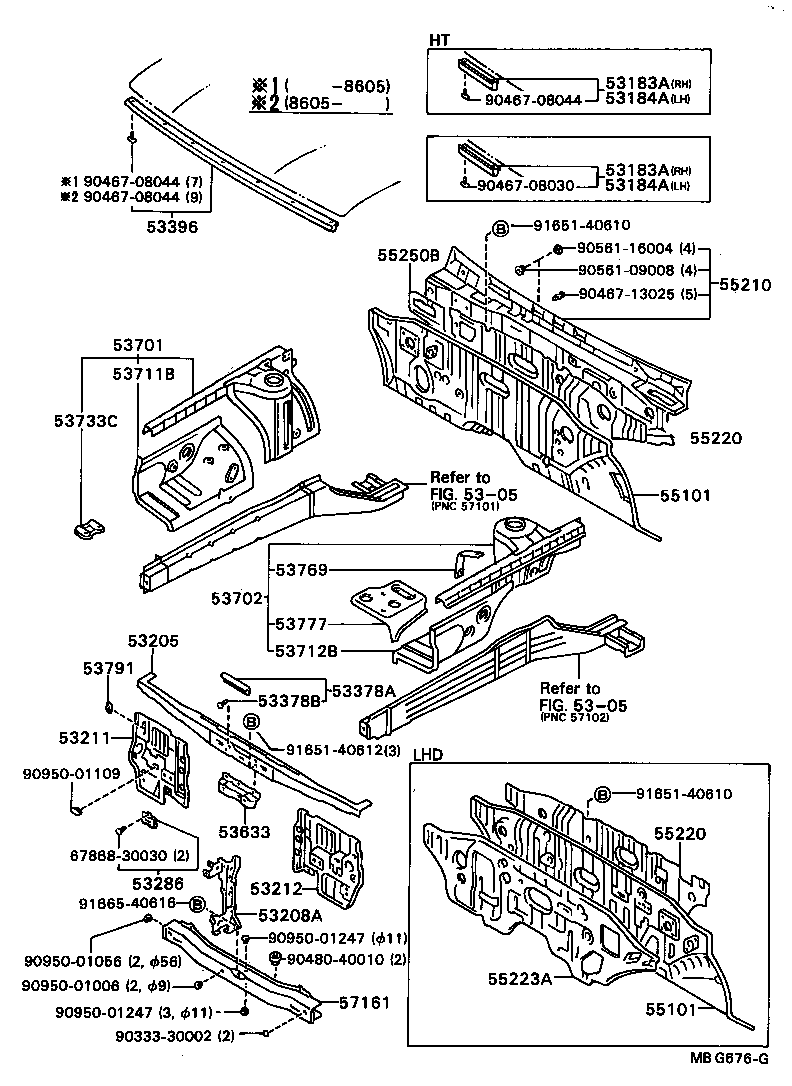

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-22050 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 53633 - SHIELD, HOOD LOCK CONTROL CABLE | ||||
| 53633-22030 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-22440 |
RX7#..LHD W/POWER STEERING |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-22340 |
RX7#,YX70 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-22290 |
LX7#,RX7#,YX70 |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| 53733-22060 |
GX71,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 53769 - PLATE, IGNITION COIL MOUNTING, LH | ||||
| 53769-22030 |
GX71,MX73,RX7#,YX70 |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-22020 |
GX71,RX7#..LHD |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-22020 |
GX71,RX7#..LHD |
1 | ||
| Common parts | ||||
| 67868-30030 | ||||
| 90333-30002 | ||||
| 90467-08030 | ||||
| 90467-08044 | ||||
| 90467-13025 | ||||
| 90480-40010 | ||||
| 90561-09008 | ||||
| 90561-16004 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01109 | ||||
| 90950-01247 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5305 | ||||
(8408- )

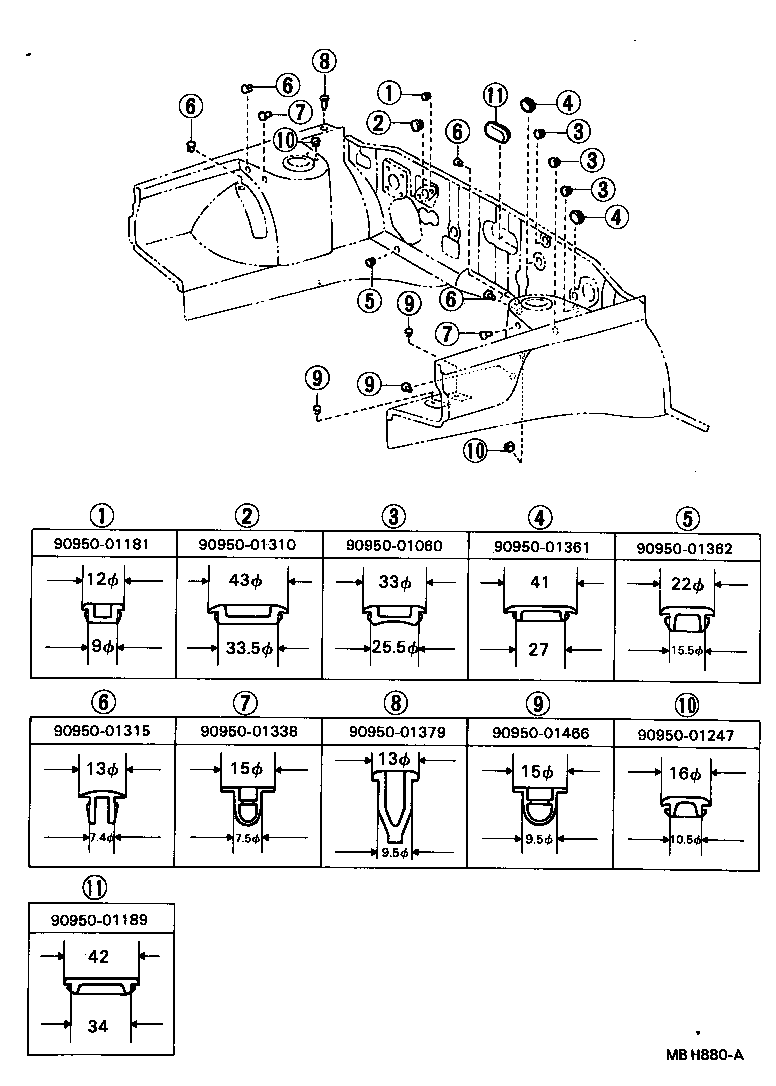

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-01189 | ||||
| 90950-01247 | ||||
| 90950-01310 | ||||
| 90950-01315 | ||||
| 90950-01338 | ||||
| 90950-01361 | ||||
| 90950-01362 | ||||
| 90950-01379 | ||||
| 90950-01466 | ||||
