RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )RX70,72..4FC

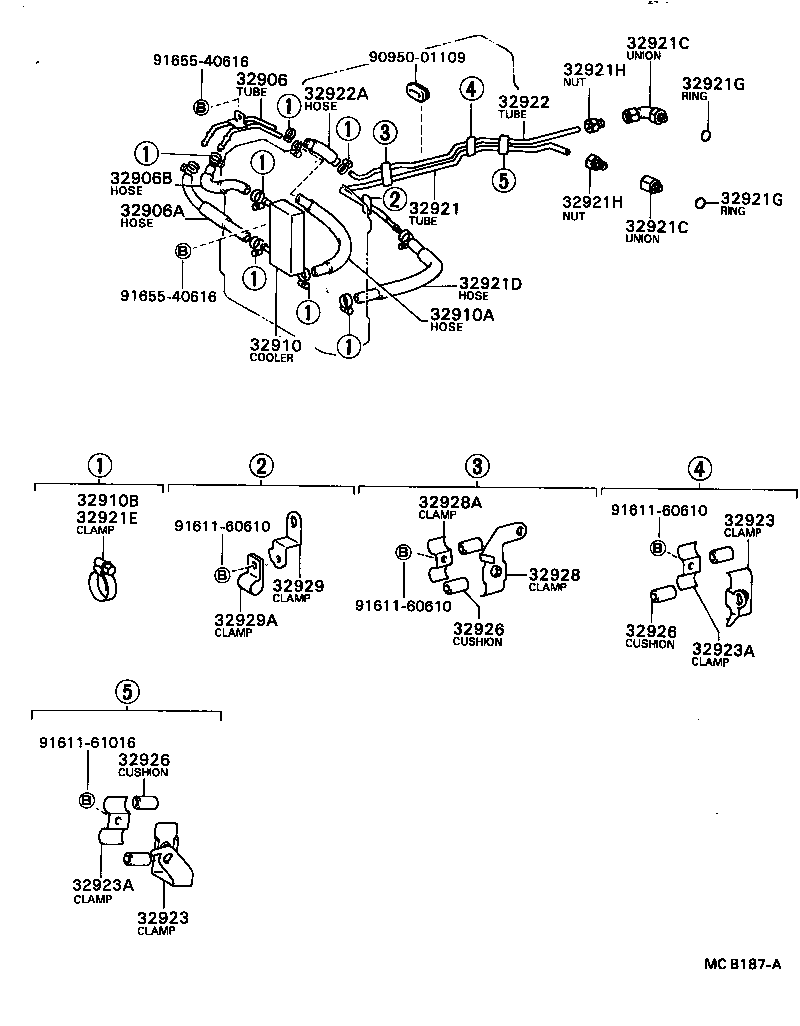

Click highlighted areas on diagram

diagram 32906 32906A 32906B 32910 32910A 32910B 32921 32921C 32921C 32921D 32921E 32921G 32921G 32921H 32921H 32922 32922A 32923 32923 32923A 32923A 32926 32926 32926 32928 32928A 32929 32929A 9095001109 9161160610 9161160610 9161160610 9161161016 9165540616 9165540616
Part # Description Qty Price
32910 - COOLER ASSY, OIL
32910-22020

RX70,72..4FC..(GEN,ME)

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22480

RX72..4FC..(GEN,SA)

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

GX71,LX7#,MX7#,RX70,72..4FC

RR

 1
90404-14007

GX71,LX7#,MX7#,RX70,72..4FC

FR

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

GX71,LX7#,MX7#,RX70,72..4FC

RR

 1
90404-14007

GX71,LX7#,MX7#,RX70,72..4FC

FR

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX71,LX7#,MX7#,RX70,72..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX71,LX7#,MX7#,RX70,72..4FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

GX71,LX7#,MX7#,RX70,72..4FC

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

GX71,LX7#,MX7#,RX70,72..4FC

 2
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-22020

RX70,72..4FC..(GEN,ME)

HOUSING FR SIDE

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-22020

RX70,72..4FC..(GEN,ME)

HOUSING FR SIDE

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12085

RX70,72..4FC..(GEN,ME)

 2
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12085

RX70,72..4FC..(GEN,ME)

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GX71,LX7#,RX70,72..4FC

L=35,ID=8

 7
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GX71,LX7#,RX70,72..4FC

L=35,ID=8

 7
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GX71,LX7#,RX70,72..4FC

L=35,ID=8

 7
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12085

GX71,LX7#,RX70,72..4FC

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-20070

RX70,72..4FC

 1
32929A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-06033

RX70,72..4FC

 1
Common parts
90950-01109
91611-60610
91611-61016
91655-40616
