RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )4FC

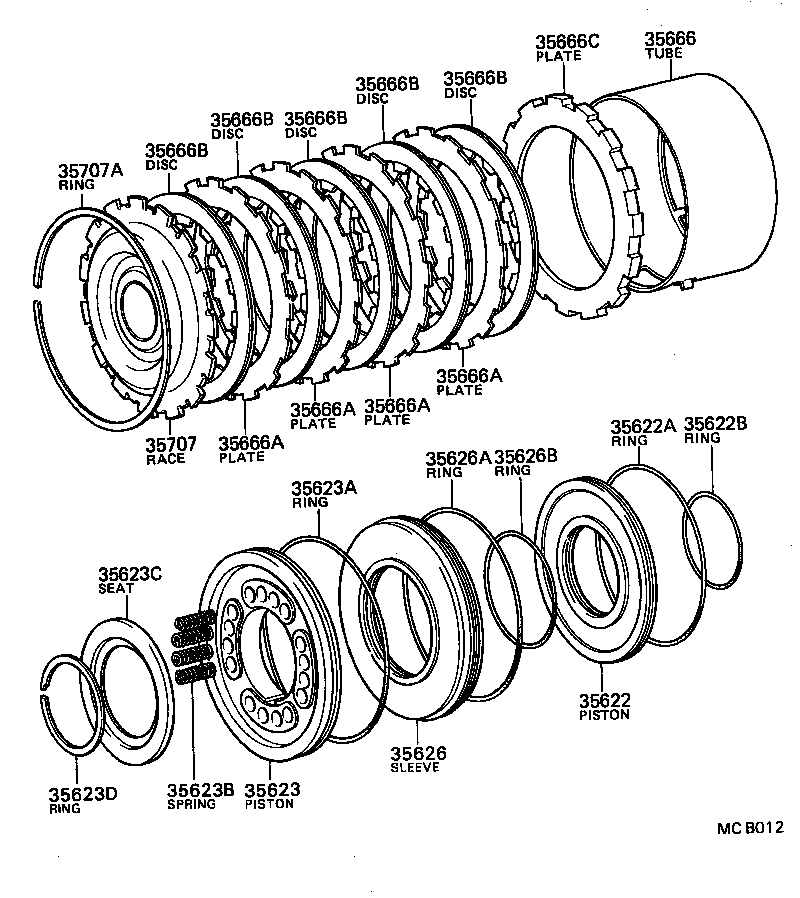

Click highlighted areas on diagram

diagram 35622 35622A 35622B 35623 35623A 35623B 35623C 35623D 35626 35626A 35626B 35666 35666A 35666A 35666A 35666A 35666B 35666B 35666B 35666B 35666B 35666C 35707 35707A
Part # Description Qty Price
35622 - PISTON, BRAKE, NO.2
35622-22010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

GX71,LX7#,MX7#,RX70,72..4FC

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

GX71,LX7#,MX7#,RX70,72..4FC

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99192

GX71,LX7#,MX7#,RX70,72..4FC

 1
35623B - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

GX71,LX7#,MX7#,RX70,72..4FC

 16
35623C - SEAT, BRAKE RETURN SPRING
35627-22010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

GX71,LX7#,MX7#,RX70,72..4FC

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

GX71,LX7#,MX7#,RX70,72..4FC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

GX71,LX7#,MX7#,RX70,72..4FC

 1
35666 - TUBE, BRAKE APPLY
35666-30010

LX71,MX7#,RX72..4FC

 1
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

GX71,LX70,MX73,RX72..4FC

 5
35633-30030

GX71,LX7#,MX7#,RX70,72..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

GX71,LX70,MX73,RX72..4FC

 5
35633-30030

GX71,LX7#,MX7#,RX70,72..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

GX71,LX70,MX73,RX72..4FC

 5
35633-30030

GX71,LX7#,MX7#,RX70,72..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

GX71,LX70,MX73,RX72..4FC

 5
35633-30030

GX71,LX7#,MX7#,RX70,72..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

GX71,LX70,MX73,RX72..4FC

 5
35633-30030

GX71,LX7#,MX7#,RX70,72..4FC

 5
35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

GX71,LX7#,MX7#,RX70,72..4FC

 1
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30030

LX71,MX7#,RX72..4FC

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

GX71,LX7#,MX7#,RX70,72..4FC

 1
