RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )4FC

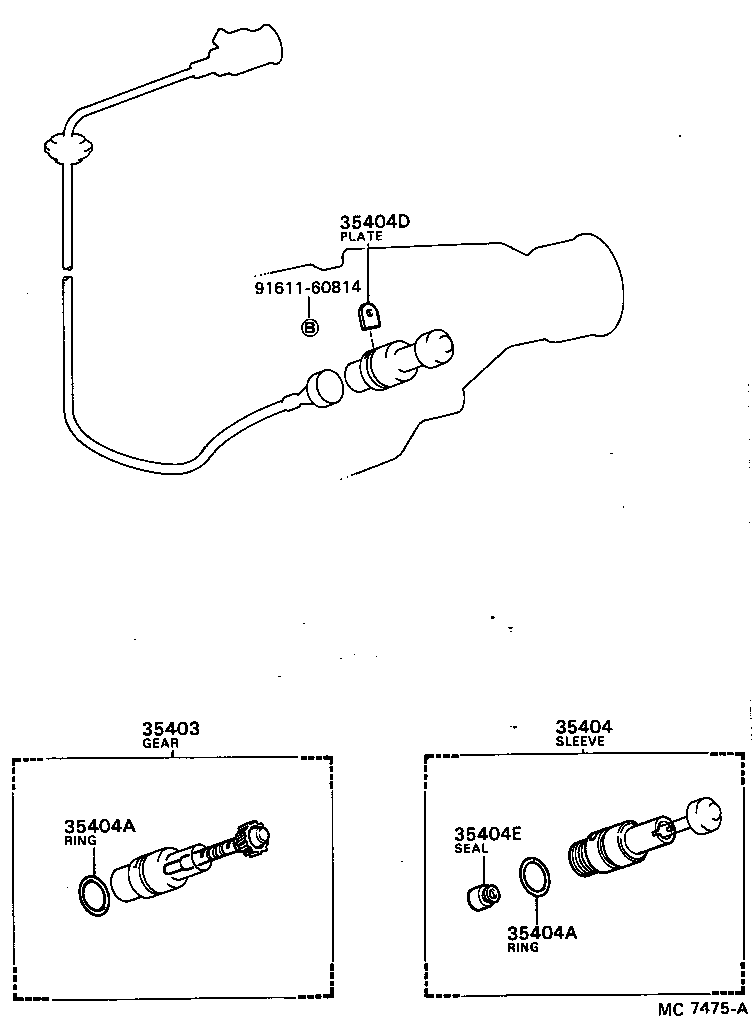

Click highlighted areas on diagram

diagram 35403 35404 35404A 35404A 35404D 35404E 9161160814
Part # Description Qty Price
35403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-69026

LX70,RX70,72..4FC

 1
35404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-30040

GX71,LX7#,MX7#,RX70,72..4FC

 1
35404D - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

GX71,LX7#,MX7#,RX70,72..4FC

 1
35404E - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

GX71,LX7#,MX7#,RX70,72..4FC

 1
Common parts
91611-60814
