RX72L-XEPES (1987)
Toyota Cressida
Production
May 1987
-
Aug 1988
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )RX70,72..4FC

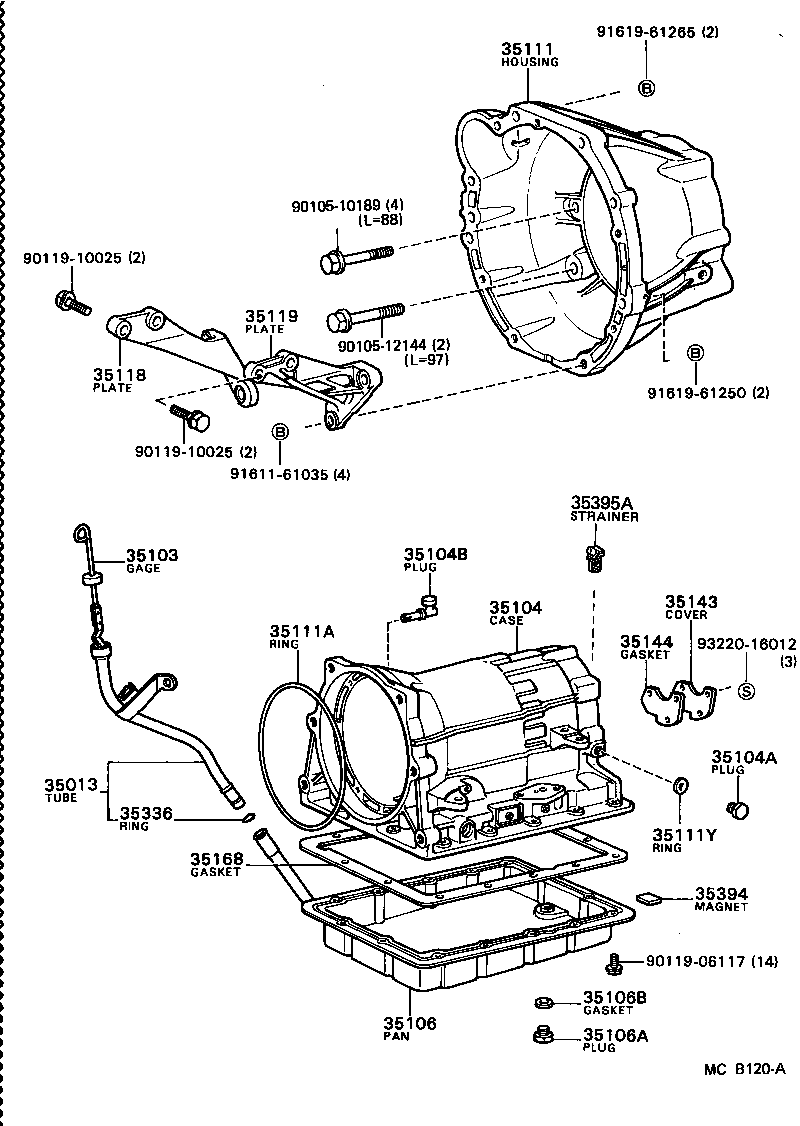

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX71,LX7#,MX7#,RX70,72..4FC |
2 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30060 |
MX7#,RX72..4FC..(EUR,GEN,ME,SA) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99006 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 90301-99054 |
GX71,LX70,MX73,RX72..4FC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX71,LX7#,MX7#,RX70,72..4FC |
2 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-22030 |
RX70,72..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-22021 |
RX70,72..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GX71,LX7#,MX7#,RX70,72..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GX71,LX7#,MX7#,RX70,72..4FC |
2 | ||
| Common parts | ||||
| 90105-10189 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 90119-10025 | ||||
| 91611-61035 | ||||
| 91619-61250 | ||||
| 91619-61265 | ||||
| 93220-16012 | ||||
