RX72L-XEPES (1987)
Toyota Cressida
Production
May 1987
-
Aug 1988
Engine
22R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )21R,22R

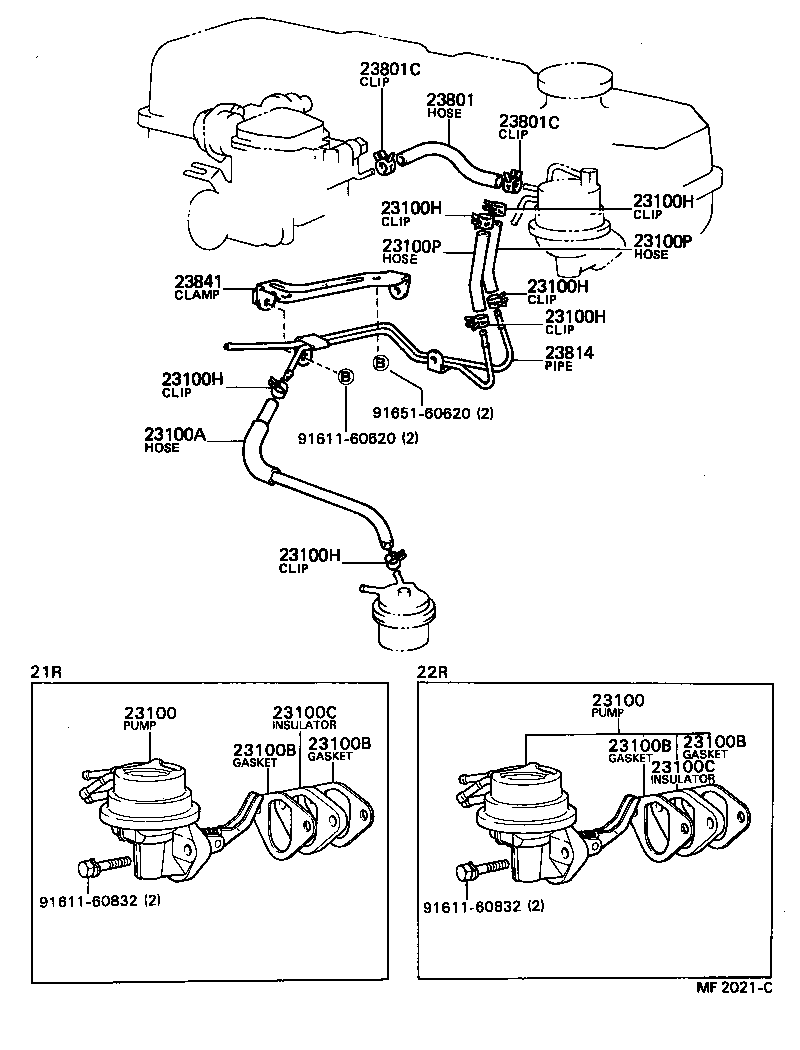

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-35031 |
22R..RX7# |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-35031 |
22R..RX7# |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
21R,22R..RX7# |
2 | ||
| 90923-05005 |
22R..RX7# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
21R,22R..RX7# |
2 | ||
| 90923-05005 |
22R..RX7# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
21R,22R..RX7# |
2 | ||
| 90923-05005 |
22R..RX7# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05005 |
21R,22R..RX7# |
2 | ||
| 90923-05005 |
22R..RX7# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
21R,22R..RX7# |
1 | ||
| 90923-06001 |
22R..RX7# |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06001 |
21R,22R..RX7# |
1 | ||
| 90923-06001 |
22R..RX7# |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
6 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
21R,22R..RX7# |
4 | ||
| 23814 - PIPE, FUEL DELIVERY | ||||
| 23814-37040 |
21R,22R..RX7# |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-35050 |
21R,22R..RX7# |
1 | ||
| Common parts | ||||
| 91611-60620 | ||||
| 91611-60832 | ||||
| 91651-60620 | ||||
